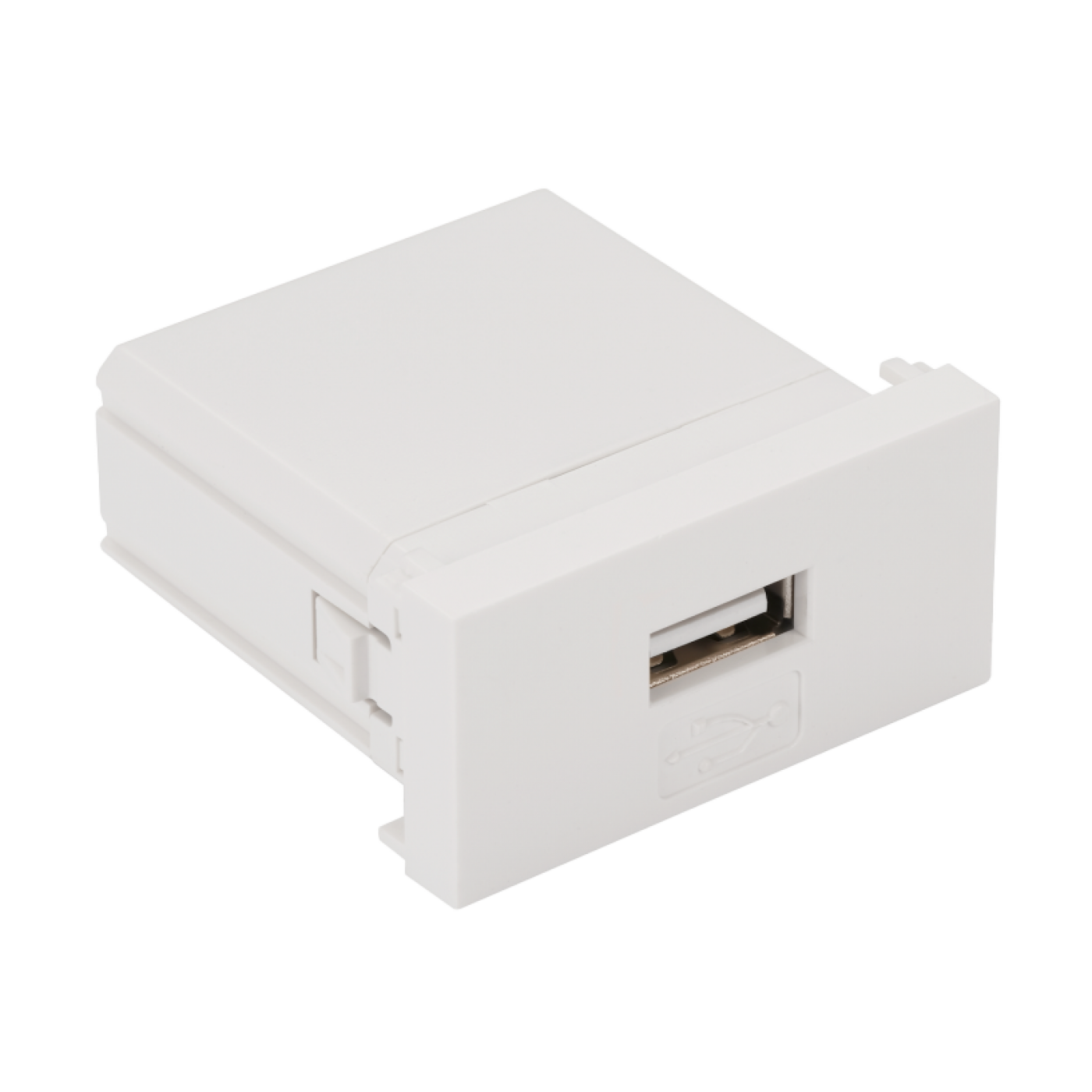

USB charger module, one USB-A port, 2.1A/5V, 22.5x45, white
The USB charging module is designed to recharge the batteries of electronic devices from a 127-220V AC power supply.
The module has a size of 22.5x45 mm of the French Mosaic typesize and can be installed to socket frames, in service columns, floor boxes and wall boxes.
Specifications:
- Input voltage range: 100 – 240V, 50Hz
- Output voltage: 5V
- Charging current: 2.1A
- Operating temperature range: from 0° to +40° C
- Protection rating against dust and moisture: IP20
- Mounting size: 22.5x45 mm
Frequently Asked Questions
What is the LAN-EZ45x22-1UA/2.1-WH module used for?
This USB charging module recharges electronic device batteries from a 100–240 V, 50 Hz AC mains supply. The module has one USB-A port.
What charging current does the LAN-EZ45x22-1UA/2.1-WH module provide?
Output voltage is 5 V, charging current is 2.1 A.
Can a laptop be charged through the LAN-EZ45x22-1UA/2.1-WH module?
No, generally not. The module provides a fixed 5 V output with no USB Power Delivery (PD) negotiation, and most laptops charging over USB-C need a higher voltage (9/12/15/20 V) requested over the PD protocol from a compatible charger. a simple 5 V USB-A/USB-C port charges phones and small electronics but doesn't replace a laptop's power adapter.
What size and form factor is the LAN-EZ45x22-1UA/2.1-WH module?
The module is sized for the French Mosaic standard, 22.5×45 mm, in white.
Where can the LAN-EZ45x22-1UA/2.1-WH module be installed?
The module fits into socket assemblies, desktop mini-columns, floor boxes, and wall boxes compatible with the Mosaic format.
What material is the LAN-EZ45x22-1UA/2.1-WH module's housing made of?
The housing is made of ABS plastic, in white (RAL 9010).
What dust and moisture protection rating does the LAN-EZ45x22-1UA/2.1-WH module have?
The protection rating is IP20, meaning the module is protected against solid objects and fingers entering the housing, but it is not rated for damp or outdoor conditions.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-EZ45x22-1UA/2.1-WH | pcs | 450 × 20 × 450 | 0.034 | 0.00405 |
