Containment system double sliding door for DC series cabinets

Containment system double sliding door for DC series cabinets
LAN-DC-SDRxx-xxUx12

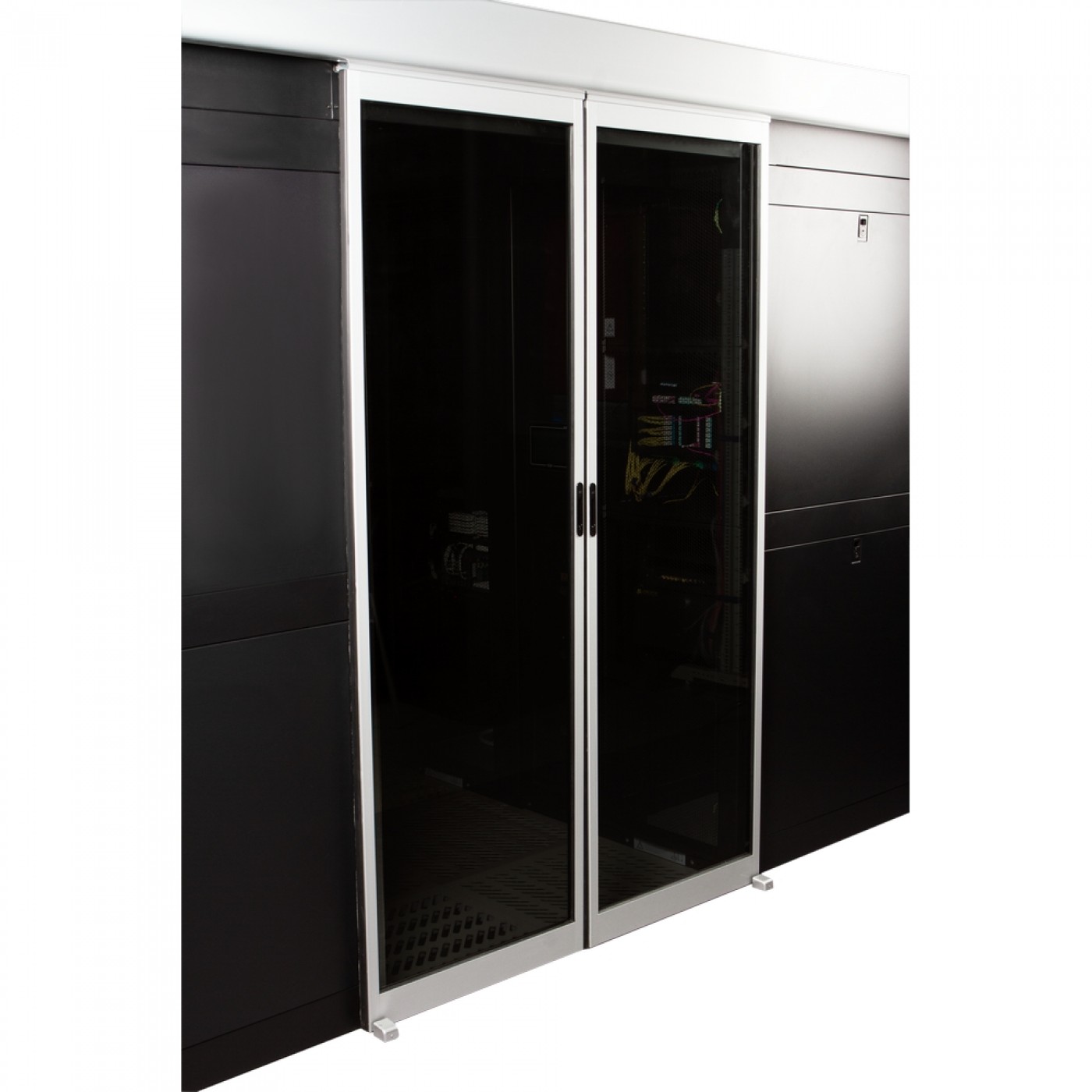

A doors kit is installed between the end cabinets in rows to form an isolated aisle. Basic doors are used for a 1200 mm wide aisle, on request it is possible to manufacture doors of other widths. Doors are made of tempered 4 mm glass in aluminum frame.

Sliding doors with a mechanical opening system open manually and have a closer for smooth closing.

Automatic doors are equipped with an electric motor to open the door and are also have an access control system to the interior of the aisle, which greatly increases the level of security of the aisle containment system.

Made of tempered glass and aluminum.

Kit includes: two sliding doors, upper and lower guides, seals, and fasteners. Automatic doors are supplied with wires, start buttons, necessary accessories.

Frequently asked questions and answers

What are the LAN-DC-SDRxx-xxUx12 doors designed for?

These sliding doors are installed between the end cabinets of a row and form an isolated corridor in the server room.

What is the difference between the mechanical and automatic door versions?

The mechanical version (SDRM) is opened by hand and has a closer for smooth closing; the automatic version (SDRAL) opens via an electric motor and adds an access-control system for the corridor.

What are the door leaves made of?

Tempered glass, 4 mm thick, in an aluminum frame.

What does the package include?

Two sliding door panels, upper and lower guides, seals, and fasteners; automatic versions also include wiring, start buttons, and the necessary accessories.

What corridor width are the doors designed for?

The standard width is 1200 mm.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-SDRAL-42Ux12 pcs 97 0.453825
LAN-DC-SDRAL-48Ux12 pcs 3310 × 220 × 300 40 0.21846

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-SDRAL-48Ux12 pcs 2460 × 300 × 710 60 0.52398

Component parts

Product code Part number length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-SDRAL-42Ux12 1/2 2130 × 130 × 850 58 0.235365
LAN-DC-SDRAL-42Ux12 2/2 3310 × 220 × 300 39 0.21846

Product Codes (4)

  • Containment mechanical 1200 mm wide double sliding door for DC series 42U cabinets, glass, without lock
  • Containment mechanical 1200 mm wide double sliding door for DC series 48U cabinets, glass, without lock
  • Containment automatic 1200 mm wide double sliding door for DC series 42U cabinets, glass, key-card lock
  • Containment automatic 1200 mm wide double sliding door for DC series 48U cabinets, glass, key-card lock
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
