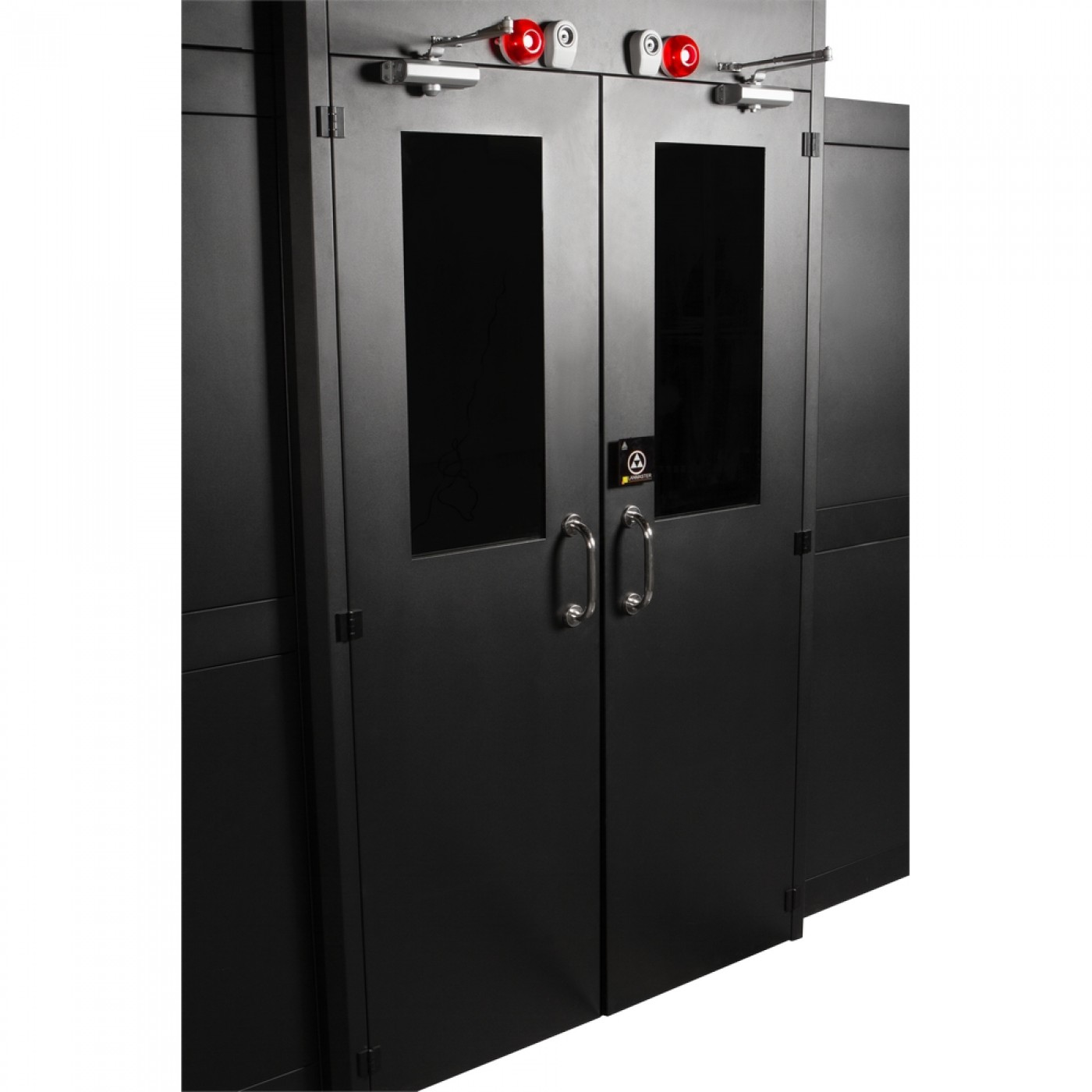

Containment system split hinged door for DC series cabinets

Containment system split hinged door for DC series cabinets
LAN-DC-HDRMx-xxUx12

A doors kit is installed between the end cabinets in rows to form an isolated aisle. Basic doors are used for a 1200 mm wide aisle, on request it is possible to manufacture doors of other widths. Transparent glass windows in the door panels allow for visual control of the situation inside the aisle.

Split hinged doors have a mechanical opening system. The doors can be equipped with an access control system to the interior of the aisle, which greatly increases the security level of the aisle containment system.

Made of sheet steel (powder coated) and toughened glass.

Kit includes: two swing doors, door frame, gaskets, and fasteners. Swing doors with a lock are supplied with wires, start buttons, necessary accessories.


Frequently asked questions and answers

What are the LAN-DC-HDRMx-xxUx12 doors designed for?

These swing doors are installed between the end cabinets of a row and form an isolated corridor in the server room.

Can you see what is happening in the corridor without opening the door?

Yes, the door panels have tempered-glass windows for visual monitoring of the corridor.

Can access to the corridor be restricted?

Yes, a version with access control (key-card lock) is available, which notably increases the security of the cabinet system.

What does the door package include?

Two door leaves, a door frame, seals, and fasteners; locking versions also include wiring, control buttons, and the necessary accessories.

What corridor width are the doors designed for?

The standard width is 1200 mm; other sizes are made to order.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-HDRM-42Ux12 pcs 2270 × 380 × 780 130 0.672828
LAN-DC-HDRM-48Ux12 pcs 2480 × 360 × 660 135 0.589248
LAN-DC-HDRML-42Ux12 pcs 2270 × 380 × 760 135 0.655576
LAN-DC-HDRML-48Ux12 pcs 2480 × 360 × 760 142 0.678528

Product Codes (4)

  • Containment system 1200 mm wide split hinged door for DC series 42U cabinets, glass, without lock
  • Containment system 1200 mm wide split hinged door for DC series 48U cabinets, glass, without lock
  • Containment system 1200 mm wide split hinged door for DC series 42U cabinets, glass, key-card lock
  • Containment system 1200 mm wide split hinged door for DC series 48U cabinets, glass, key-card lock
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
