Aisle containment system in-row blanking panel

Aisle containment system in-row blanking panel LAN-DC-CPF-xxUxx-M: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-DC-CPF-xxUxx-M

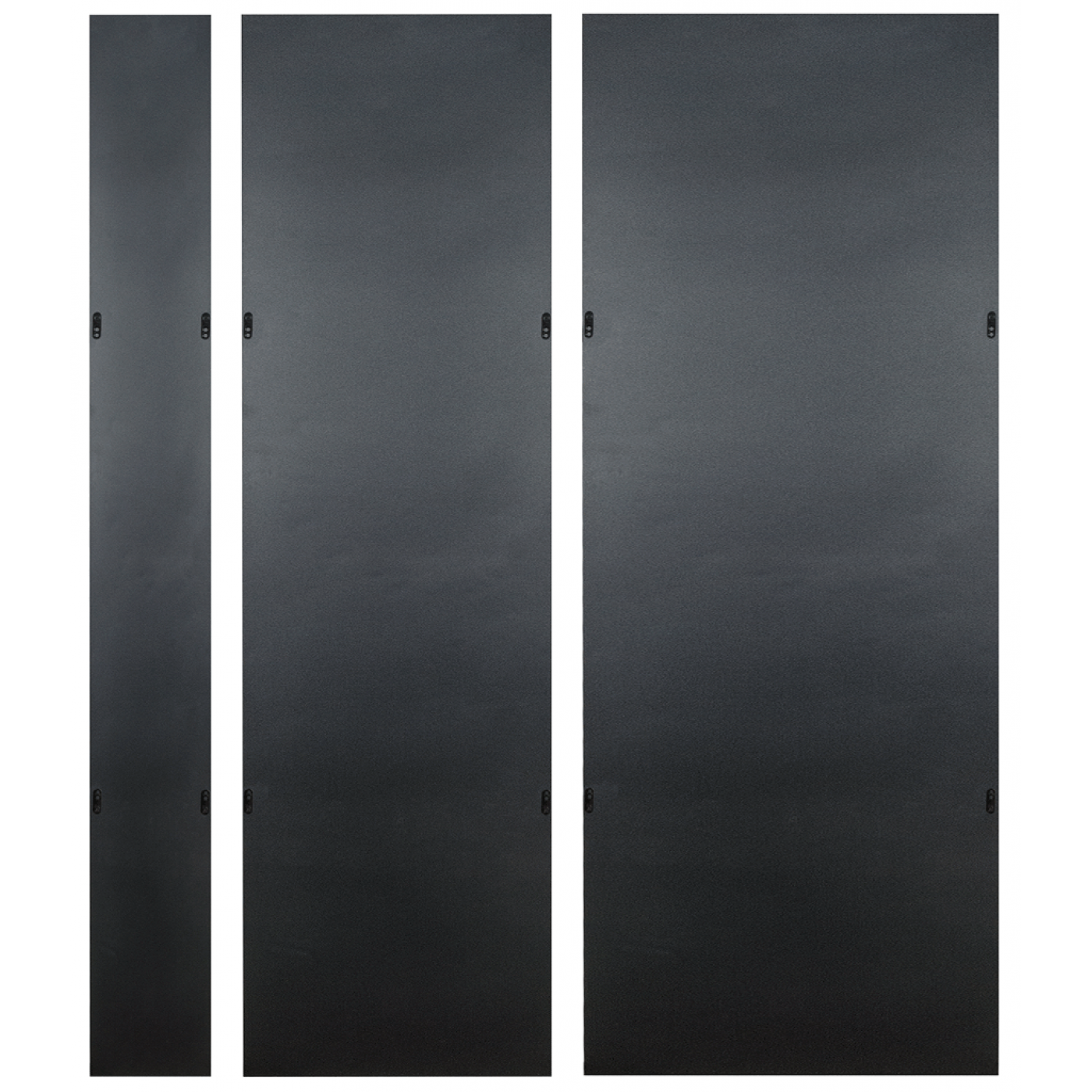

Metal panel for installation between cabinets in a row. Designed to replace a missing cabinet in case of bypassing an obstacle (for example, a column), as well as to fill gaps when used in opposite rows of cabinets of different widths.

The vertical blanking panel makes it possible to design a cold/hot aisle containment system even in rooms with obstacles, or in cases where the cabinets in opposite rows do not match in width. For example, if it is decided to use in-row air conditioners as cooling units.

The metal panel closes the unused space between adjacent cabinets, maintaining a closed volume in containment system. The panel comes with a mounting kit for connection with adjacent cabinets.

Frequently asked questions and answers

What is the LAN-DC-CPF-xxUxx-M panel designed for?

This inter-row blanking panel is installed between cabinets in a row, filling the space of a missing cabinet (for example, due to a structural column) or closing a width mismatch between cabinets in opposing rows.

What problem does such a panel solve from a cooling standpoint?

According to an industry analysis by Upsite Technologies, unplanned gaps between cabinets in a row let hot exhaust air mix into the cold aisle and raise equipment inlet temperatures, while also losing some of the conditioned supply air — closing the gap with an inter-row panel reduces this effect.

What does the panel's package include?

The panel and a fastening kit for securing it to the adjacent cabinets.

What height and width variants is the panel available in?

42U or 48U height, and 200, 300, 600, or 800 mm width.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-CPF-42Ux2-M box 2000 × 160 × 255 27 0.0816
LAN-DC-CPF-42Ux3-M pcs 2000 × 320 × 65 14.5 0.0416
LAN-DC-CPF-42Ux6-M pcs 2000 × 620 × 65 11 0.0806
LAN-DC-CPF-42Ux8-M pcs 2000 × 820 × 65 26 0.1066
LAN-DC-CPF-48Ux2-M pcs 2270 × 265 × 65 14.1 0.039101
LAN-DC-CPF-48Ux3-M pcs 2270 × 355 × 65 16 0.05238
LAN-DC-CPF-48Ux6-M pcs 2270 × 655 × 65 24 0.096645
LAN-DC-CPF-48Ux8-M pcs 2270 × 820 × 65 29.3 0.120991

Product Codes (8)

  • 200 mm wide 42U cap panel, for installing in row between LANMASTER DC cabinets
  • 300 mm wide 42U cap panel, for installing in row between LANMASTER DC cabinets
  • 600 mm wide 42U cap panel, for installing in row between LANMASTER DC cabinets
  • 800 mm wide 42U cap panel, for installing in row between LANMASTER DC cabinets
  • 200 mm wide 48U cap panel, for installing in row between LANMASTER DC cabinets
  • 300 mm wide 48U cap panel, for installing in row between LANMASTER DC cabinets
  • 600 mm wide 48U cap panel, for installing in row between LANMASTER DC cabinets
  • 800 mm wide 48U cap panel, for installing in row between LANMASTER DC cabinets
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
