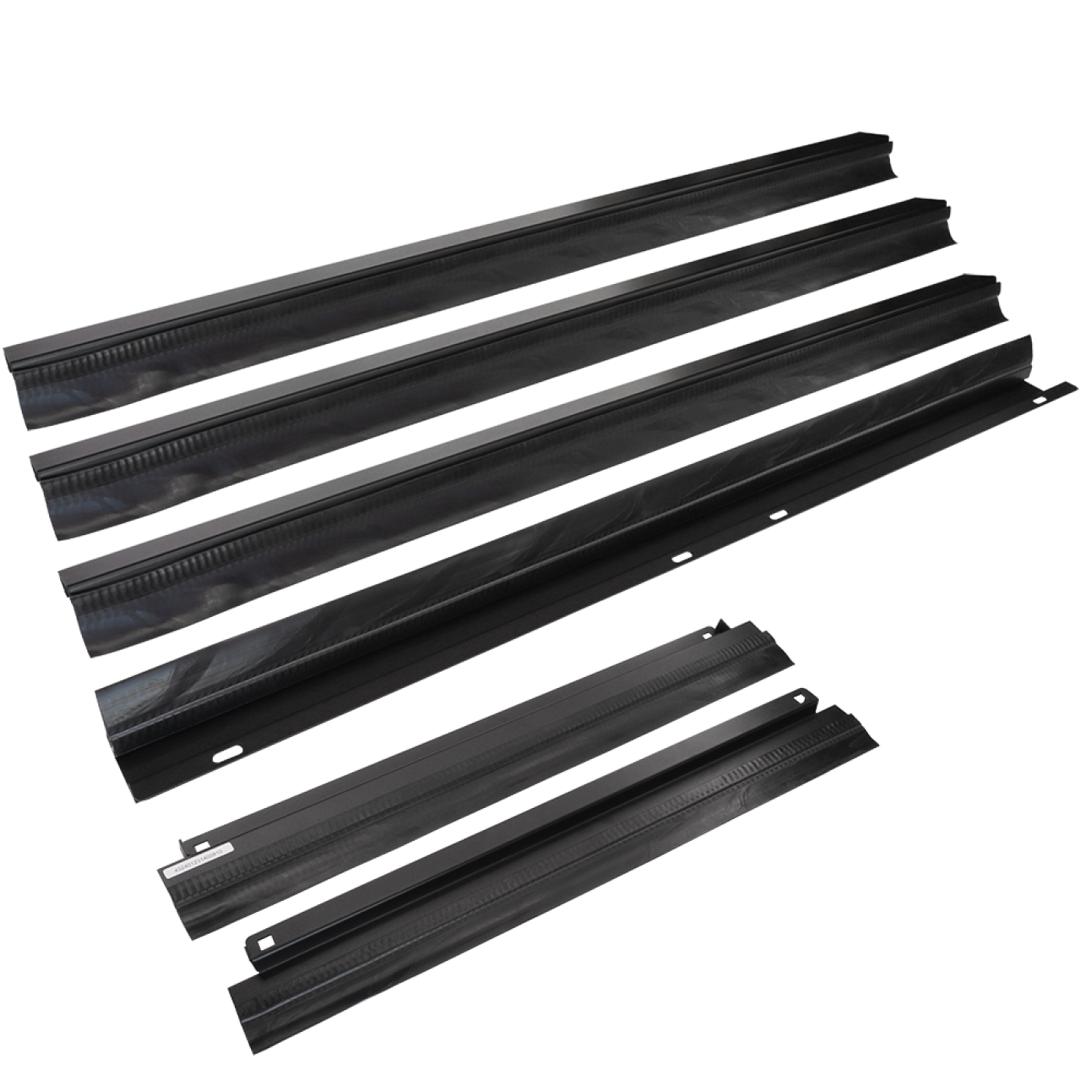

Perimeter sealing kit for LANMASTER DCS cabinets, 600 mm wide
Perimeter sealing kit for LANMASTER DCS cabinets, 600 mm wide
LAN-DC-CB-xxUx6-AIS
Frequently asked questions and answers
What is the LAN-DC-CB-xxUx6-AIS kit designed for?
This perimeter sealing kit closes the gaps between the mounting profiles and the side walls of a 600 mm wide cabinet, preventing stray airflow.
When is this kind of kit especially important to use?
It is recommended for setting up isolated cold/hot aisles, where air leaking through the cabinet's perimeter reduces cooling efficiency.
What are the kit's parts made of?
Metal parts with attached rubber seals.
How do the kit's parts attach to the cabinet?
The side elements mount on the end face of the vertical rails, and the top and bottom parts attach to the outermost pair of rail holes at the top and bottom of the cabinet; all required fasteners are included.
What cabinet height variants is the kit available in?
LAN-DC-CB-42Ux6-AIS is for 42U cabinets, LAN-DC-CB-48Ux6-AIS for 48U cabinets.
Didn’t find an answer to your question?
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-DC-CB-42Ux6-AIS | pcs | 830 × 200 × 60 | 6 | 0.00996 |
| LAN-DC-CB-48Ux6-AIS | pcs | 965 × 200 × 60 | 6 | 0.01158 |
Package
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-DC-CB-42Ux6-AIS | box | 860 × 320 × 230 | 29 | 0.063296 |
| LAN-DC-CB-48Ux6-AIS | box | 990 × 330 × 225 | 31 | 0.073508 |
Product Codes (2)
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
