Vertical PDU tray kit for LANMASTER DC cabinets, 2 pcs

Vertical PDU tray kit for LANMASTER DC cabinets, 2 pcs. LANMASTER rack and cabinet product for structured cabling and data center installations.
LAN-DC-CB-XXU-PDU-TR


Frequently Asked Questions

What is the LAN-DC-CB-XXU-PDU-TR tray kit used for?

It is a kit of vertical trays for LAN-DC series cabinets, serving as a mounting base for vertical 0U power distribution units (PDUs) and for routing and organizing cables inside the cabinet.

How many parts does the kit consist of?

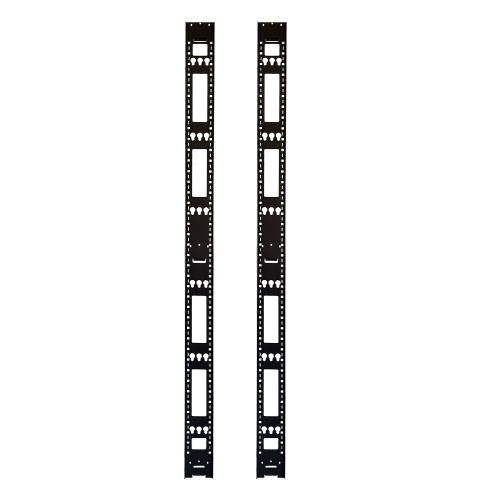

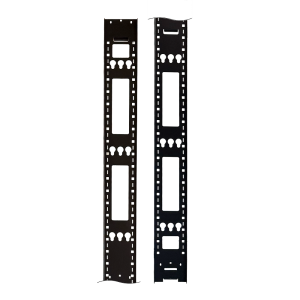

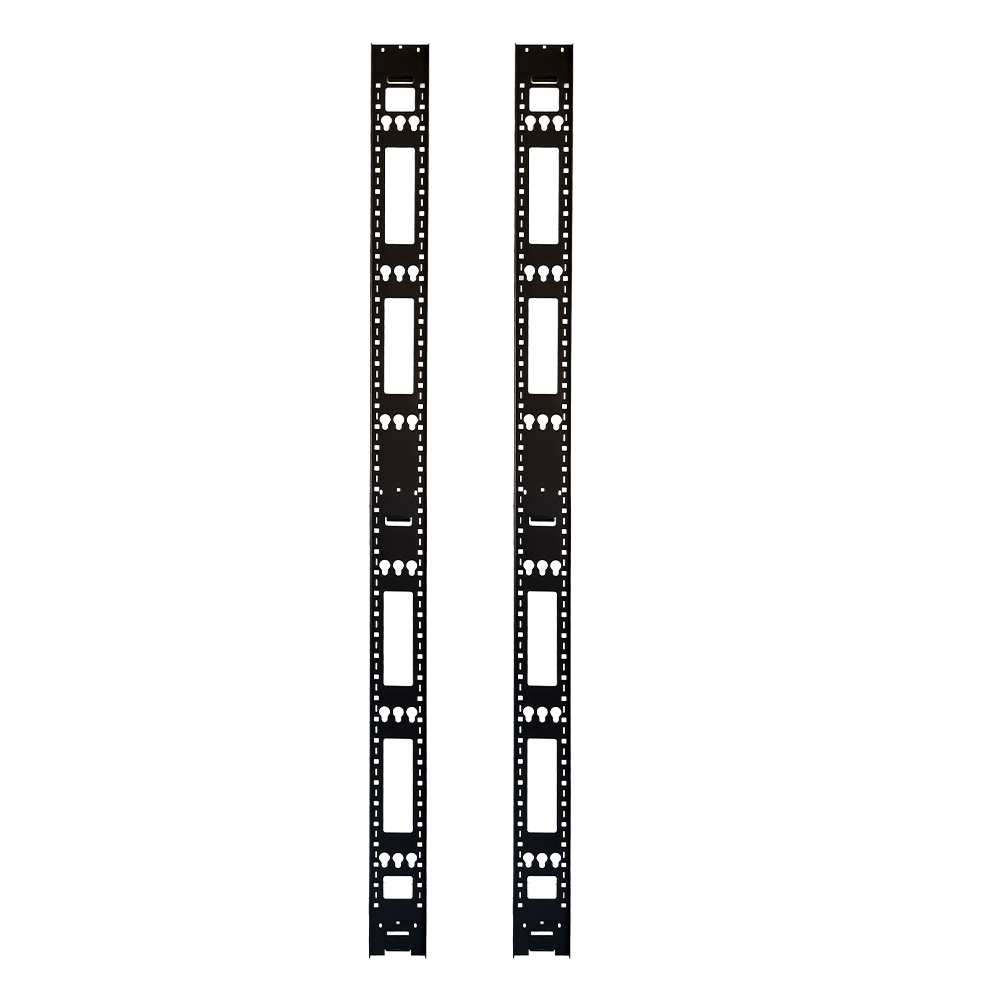

The kit includes two trays — left and right, which differ by the side they mount on.

How wide are the trays?

The usable internal width is up to 112 mm when mounting one unit per tray, or up to 56 mm when mounting two units side by side.

How are the trays mounted in the cabinet?

The trays attach to the cabinet's horizontal profiles with the included hardware. Each tray can be placed at any depth and repositioned along that depth even with accessories already mounted on it.

What holes and mounting features do the trays have?

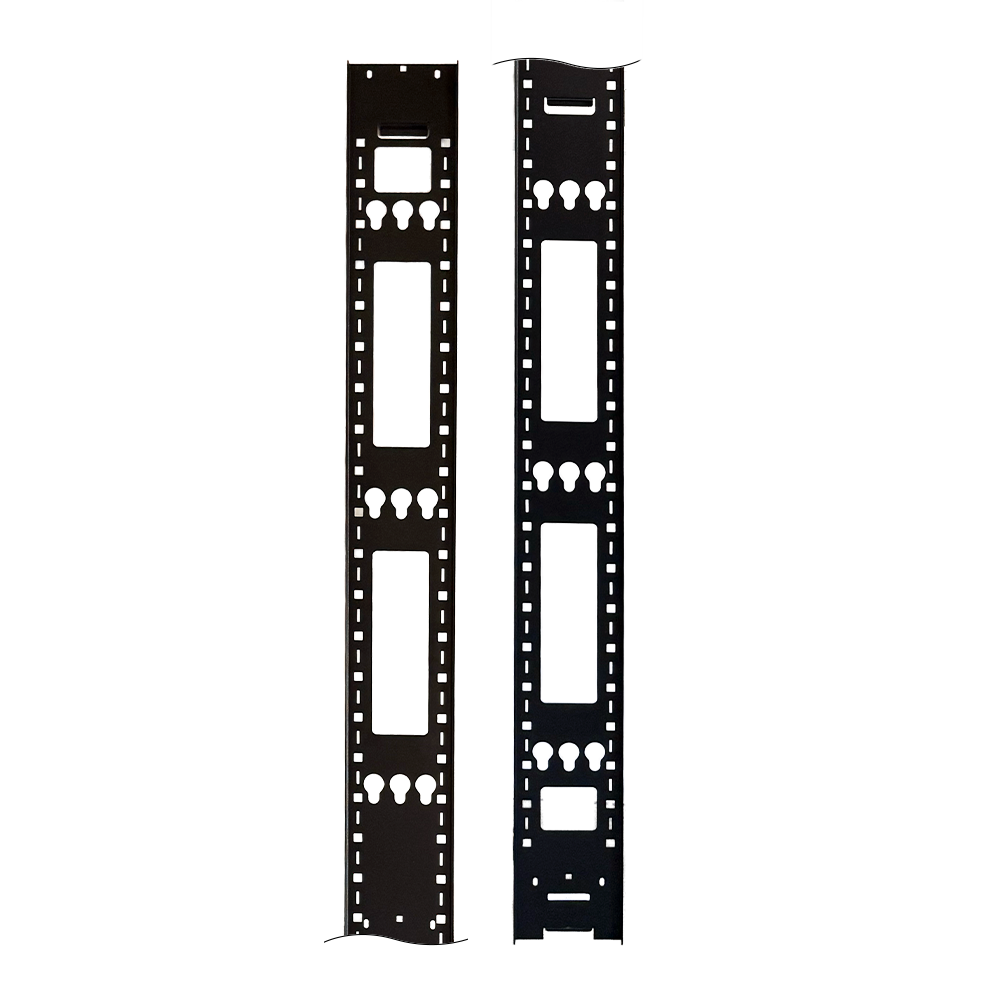

The trays have holes for securing PDUs with round clips, holes for cage nuts, and slots for securing cable bundles with ties.

Which cabinets is the kit compatible with?

The kit is compatible with LAN-DC-CBP-xxU-6xy floor cabinets (600 mm wide) and LAN-DC-CBP-xxU-8xy floor cabinets (800 mm wide).

Which cabinet heights have their own kit variants?

There are LAN-DC-CB-42U-PDU-TR for 42U cabinets and LAN-DC-CB-48U-PDU-TR for 48U cabinets, each variant containing 2 trays.

Do I need to buy this kit if I already have a LAN-DC cabinet?

Usually not: a pair of these trays is already included with the LAN-DC cabinet by default. A separate LAN-DC-CB-XXU-PDU-TR kit is only needed to mount additional PDUs beyond the trays already provided.

Didn’t find an answer to your question?

Product Codes (2)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
