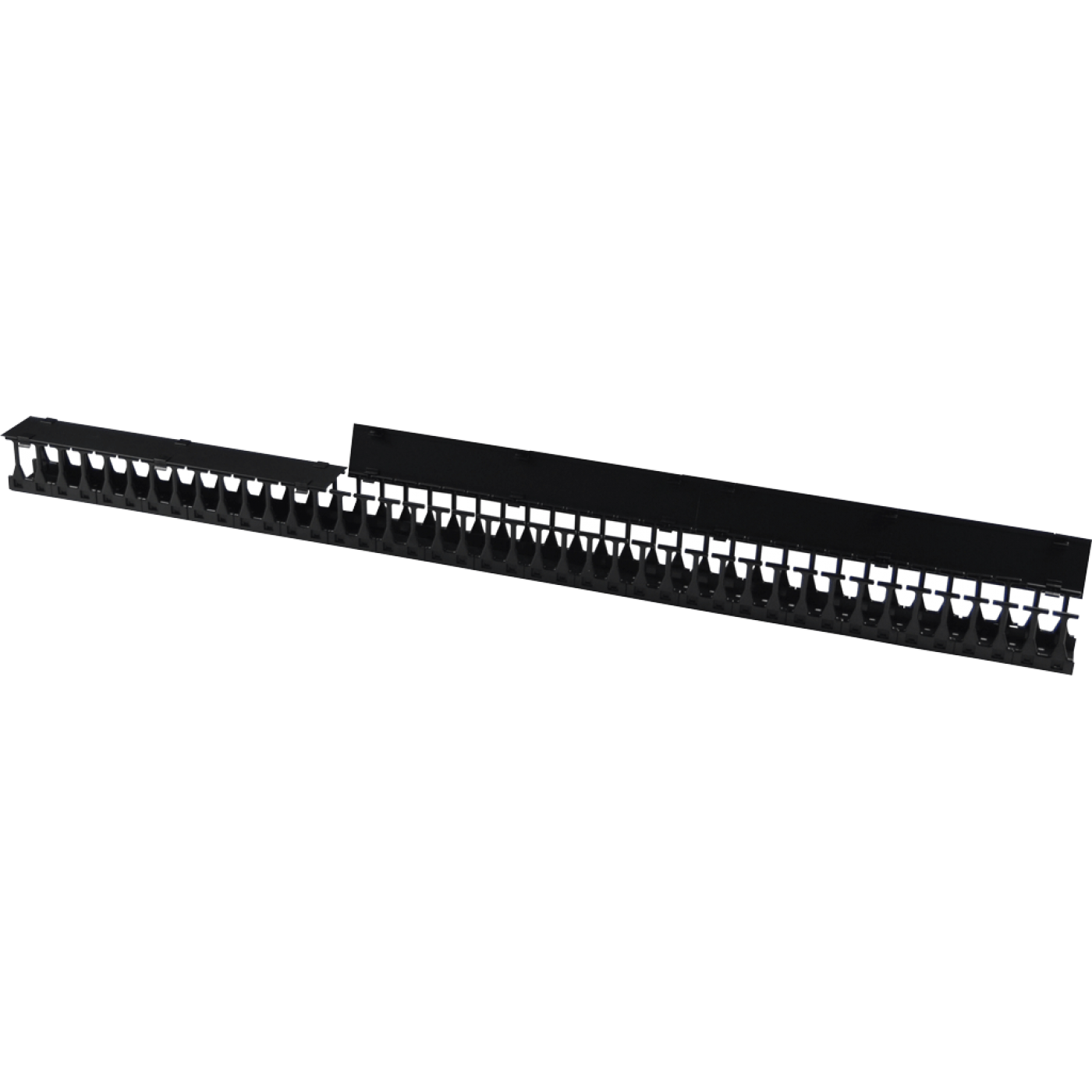

Vertical cable manager for 800 mm wide cabinets
Vertical cable manager is designed to distribute cable flows in 800 mm wide LANMASTER DC series cabinets. The manager has an increased capacity and has holes for cable entry at the back, top and bottom. The cable output is carried out on the sides through a system of supporting "fingers" located by 1U increments. Support elements made of reinforced plastic provide cable support at the level of each RMU. The rounded surface of the "fingers" protects the cables’ jacket from damage and provides the required bending radius. There are removable covers with latches on the cable manager front. The cover is divided along the length into several segments, so there is no need to remove it completely when working with cable flows. The manager is installed on mounting rails in the space between the rails and the side panels. Two types of the cable managers are available: 149 mm and 179 mm deep. The kit includes two cable managers. Made of steel and reinforced plastic. Color is black (RAL 9005). |
