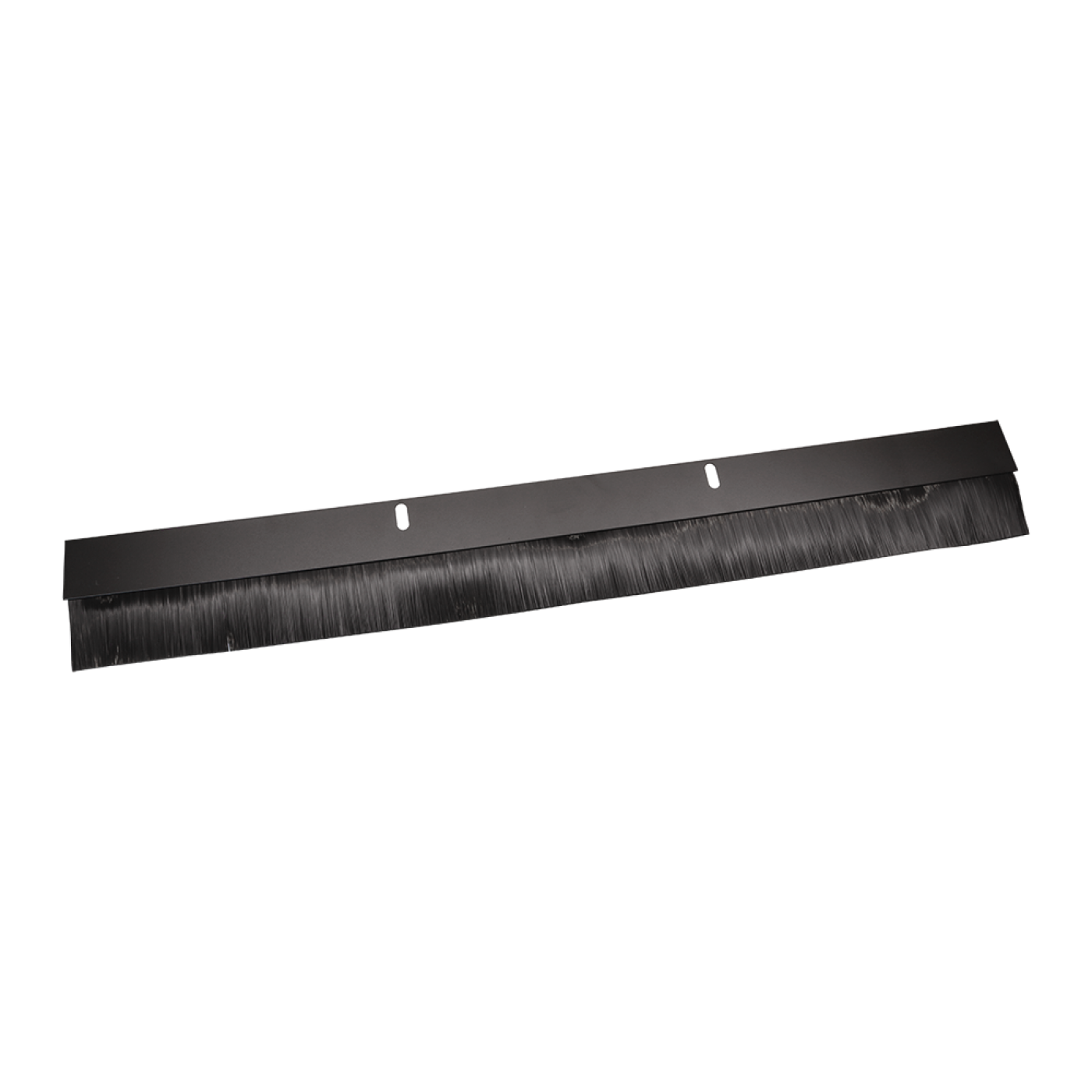

Floor seal for the front side of the basement space of a LANMASTER DCS cabinet mounted on feet

Floor seal for the front side of the basement space of a LANMASTER DCS cabinet mounted on feet
LAN-DC-CB-BIP-x

Brush front seals are designed to be installed on the front and rear frames of LANMASTER DC cabinets when the cabinet is mounted on casters or feet.

Brush seals prevent cooling airflow loss between the cabinet bottom and room floor.

Two sizes are available based on the cabinet width: 600 mm and 800 mm. Use the supplied fasteners to fix the seals into the special holes located on the front bottom of the frame.

Frequently asked questions and answers

What is the LAN-DC-CB-BIP-x panel designed for?

This front cover plate with a brush inlet closes the space under a LANMASTER DC cabinet mounted on rollers or supports, preventing loss of cooling airflow between the cabinet bottom and the floor.

How is the panel attached to the cabinet?

The panel attaches to dedicated holes on the lower front part of the cabinet frame; the fasteners are included.

What width variants is the panel available in?

LAN-DC-CB-BIP-6 is for 600 mm wide cabinets, LAN-DC-CB-BIP-8 for 800 mm wide cabinets.

Which cabinets is the panel compatible with?

The manufacturer states compatibility with DC series floor cabinets — LAN-DC-CBP-xxU-6xy (600 mm) and LAN-DC-CBP-xxU-8xy (800 mm).

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-CB-BIP-6 pcs 610 × 120 × 30 0.4 0.002196
LAN-DC-CB-BIP-8 pcs 810 × 120 × 30 1.6 0.002916

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-CB-BIP-6 box 640 × 340 × 260 9 0.056576
LAN-DC-CB-BIP-8 box 840 × 350 × 260 33 0.07644

Product Codes (2)

  • Floor seal for the front side of the basement space of a LANMASTER DCS cabinet mounted on feet, 600 mm
  • Floor seal for the front side of the basement space of a LANMASTER DCS cabinet mounted on feet, 800 mm
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
