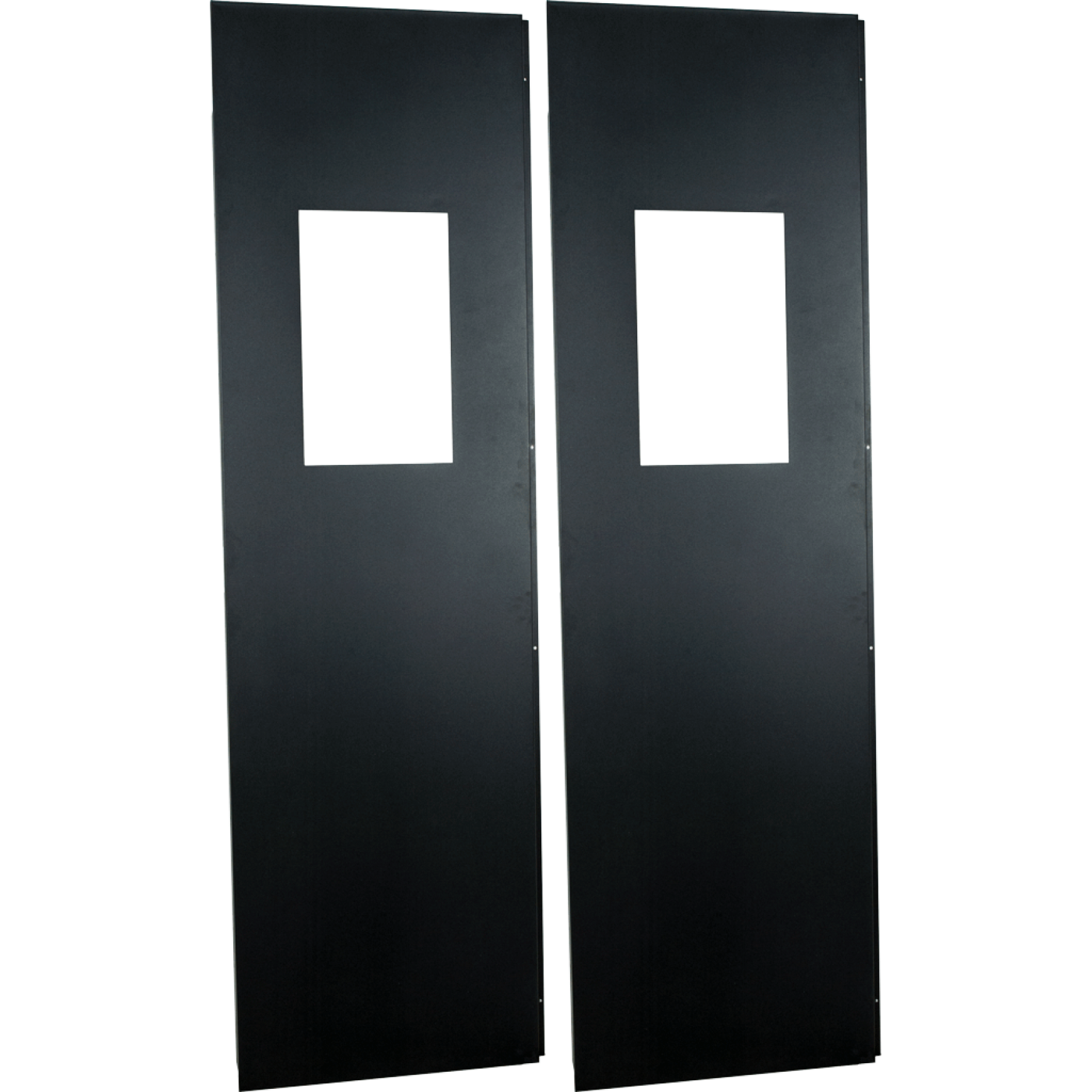

End of row containment cap panels kit
A set of two cap panels for installation between end cabinets in rows is used to create an aisle containment system.
When there is a need to arrange access only from one side of the aisle, the other entrance can be closed using cap panels. The use of panels is justified not only in terms of economy. If it is necessary to expand the corridor, the panels can be quickly dismantled, the necessary cabinets can be added to the row, and the panels can be reinstalled between the end of the row cabinets.
Translucent glass windows in the panels allow for visual control of the situation inside the aisle. Basic panels are used for an aisle with a width of 1200 mm, panels of other widths can be produced on request.
Frequently asked questions and answers
What are the LAN-DC-BPM panels designed for?
A set of two blanking panels is installed between the end cabinets of a row in place of one of the isolated corridor's doors, when access to the corridor is only needed from one side.
Can the side closed off by the panels be opened later?
Yes, the panels can be removed to extend the corridor by adding more cabinets, and then reinstalled at the ends of the updated row.
Can you see into the corridor through the installed panels?
Yes, the panels have translucent glass windows for visual monitoring of the corridor.
What corridor width are the panels designed for?
The standard corridor width is 1200 mm; panels of other widths are made to order.
How many panels come in one order kit?
Each kit (LAN-DC-BPM-42Ux12 or LAN-DC-BPM-48Ux12) includes 2 panels.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-DC-BPM-42Ux12 | pcs | 2270 × 230 × 840 | 45 | 0.438564 |
| LAN-DC-BPM-48Ux12 | pcs | 2460 × 110 × 680 | 170 | 0.184008 |
Product Codes (2)
-
1200 mm wide end of row containment cap panels kit 42U LANMASTER DC cabinets, 2 panels.
-
1200 mm wide end of row containment cap panels kit 48U LANMASTER DC cabinets, 2 panels.
