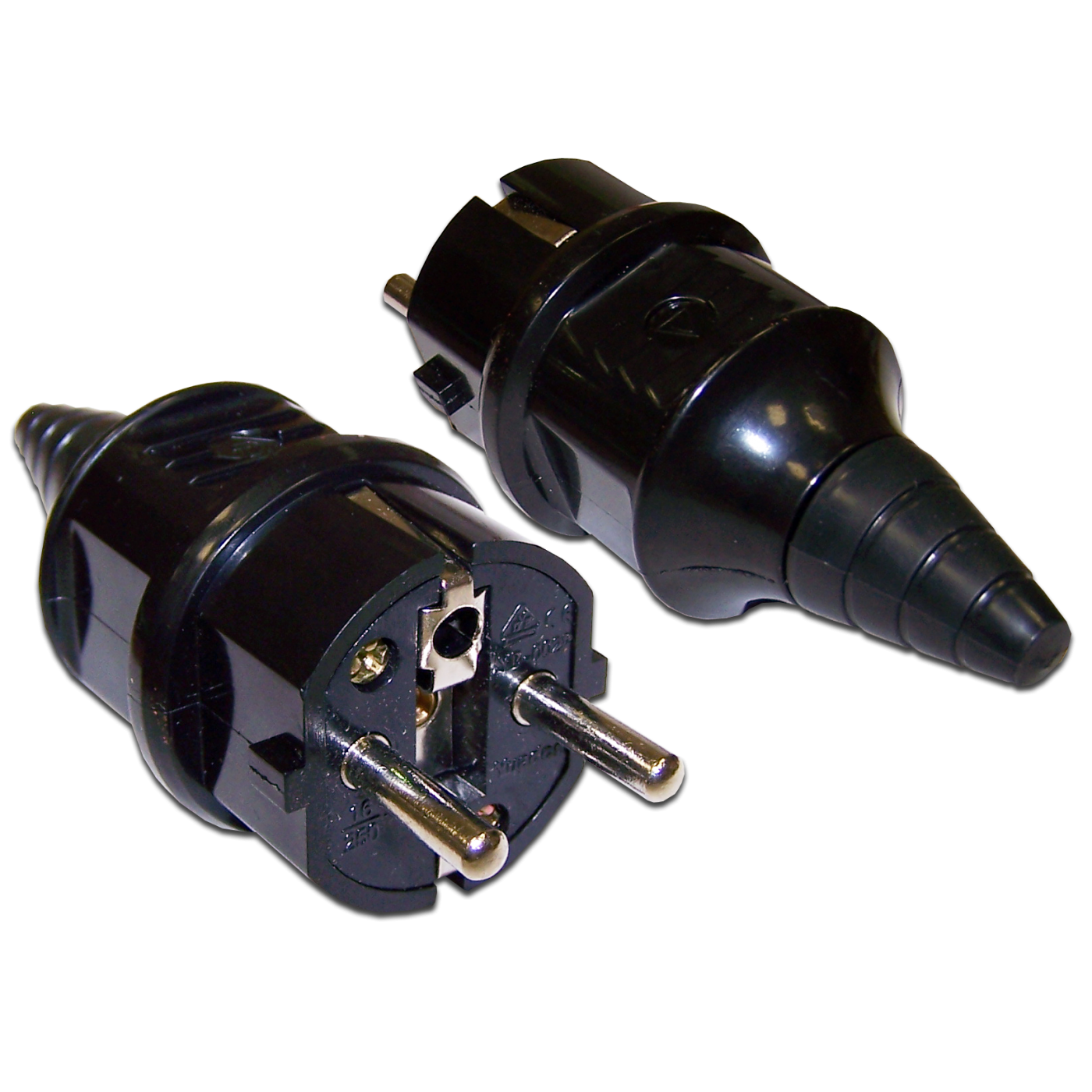

Plug CEE 7/7 Schuko, 16A, 250V, straight, rewirable, black

Plug CEE 7/7 Schuko, 16A, 250V, straight, rewirable, black. Technical characteristics and inquiry information for the LANMASTER catalog.
LAN-CEE-7/7-180

Purpose:

  • Plug CEE 7/7 Schuko, 16A, 250V, straight, rewirable, black for power connection and cord assembly applications.

Features:

  • Catalog name contains the key configuration, rating, connector type, color, and length where applicable.
  • For project use, request the current datasheet and availability details from LANMASTER or an authorized partner.

Frequently Asked Questions

What is the LAN-CEE-7/7-180 plug used for?

The CEE 7/7 (Schuko) plug is fitted to a power supply cable and lets the cable connect to standard three-contact German- or French-standard outlets.

What are the electrical ratings of the LAN-CEE-7/7-180 plug?

Rated voltage is 125/230 V AC, maximum permissible voltage is 250 V AC, rated frequency is 50 Hz, maximum load current is 16 A, maximum operating temperature is 75 °C, short-term limit voltage is 2000 V, and insulation resistance is at least 1000 MΩ.

How do I wire a cable into the LAN-CEE-7/7-180 plug?

The plug has a detachable housing and 3 screw-terminal contacts — phase, neutral, and earth. Strip and connect each cable conductor to the matching screw terminal, secure the cable with the rubber conical seal and clamp, then reassemble the housing.

Does the plug fit cables of different diameters?

Yes, the tail section has a rubber conical seal that adapts to cables of different diameters, and the clamp further secures the cable's outer sheath.

Can the LAN-CEE-7/7-180 plug be disassembled and reassembled on the same cable more than once?

Yes, the detachable housing allows repeated assembly and disassembly on the cable without degrading performance.

The plug's rated current is 16 A — does that mean a Schuko outlet can always carry that load continuously?

No. 16 A for Schuko outlets and plugs is a short-term permissible load; the recommended continuous load for household wiring is usually lower and depends on the circuit's conductor size and local regulations. This doesn't change the LAN-CEE-7/7-180 plug's own rating of 16 A maximum, but check the circuit's wiring rating before relying on the full continuous load.

What is the plug made of?

The housing insulator is glass-fiber-reinforced PVC rated UL-94V-0, meaning the material is self-extinguishing and does not continue to burn once the flame source is removed.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-CEE-7/7-180 pcs 100 × 45 × 45 0.005 0.000203

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-CEE-7/7-180 pcs 260 × 750 × 110 0.61 0.02145

Product Codes (1)

  • Plug CEE 7/7 Schuko, 16A, 250V, straight, rewirable, black
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
