LANMASTER SFTP cable, 4 pairs, cat. 8, 2000Mhz, нг(А)-HFLTx, 305 m

LANMASTER SFTP cable, 4 pairs, cat. 8, 2000Mhz, нг(А)-HFLTx, 305 m

Product Code: LAN-8SFTP-HFLT

LANMASTER SFTP cable, 4 pairs, cat. 8, 2000Mhz, нг(А)-HFLTx, 305 m
Model range

Shielded 4-pair cable of category 8.1 for transmitting information at frequencies up to 2000 MHz. The cat 8 cable has an operating frequency twice that of cat7.

They are used exclusively in the professional field.

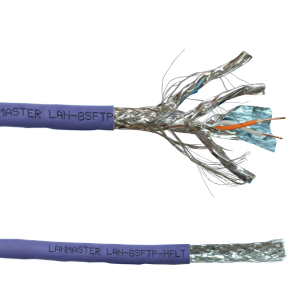

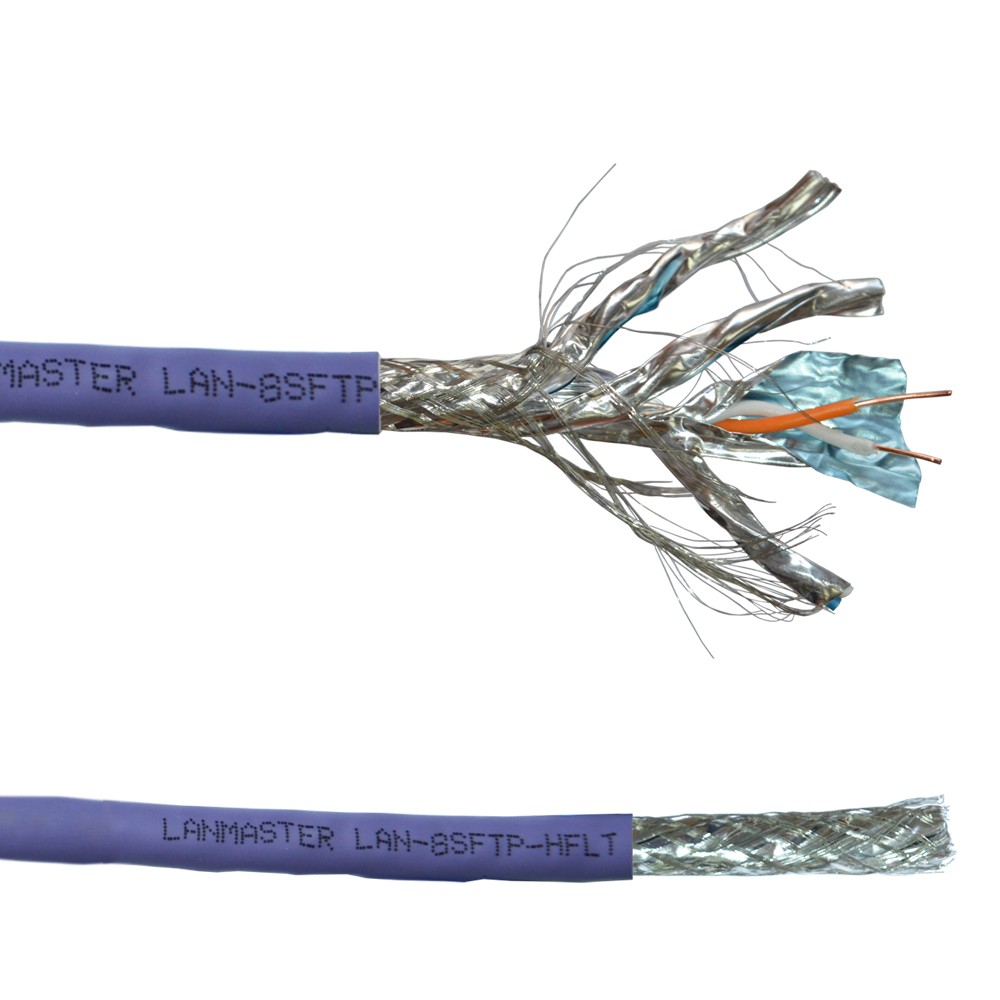

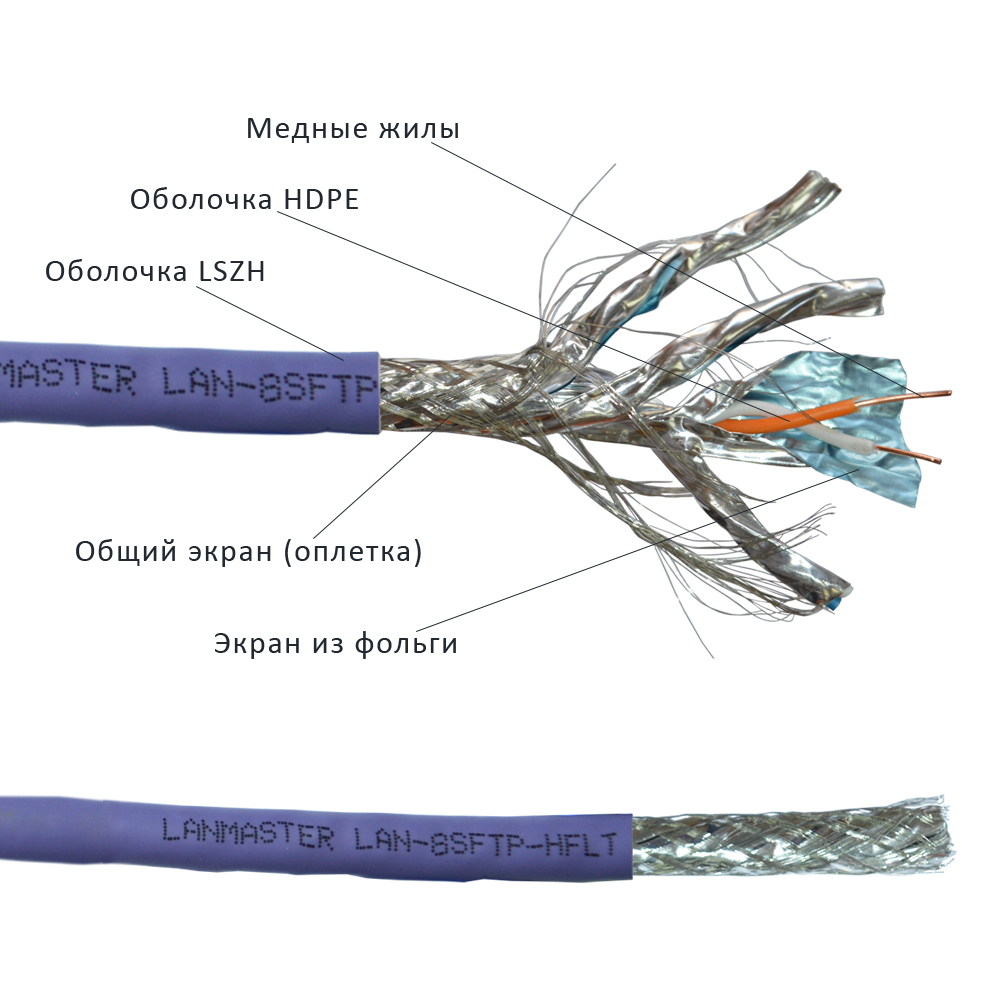

The cable design includes 4 twisted pairs in individual foil screens. The common braided shield provides reliable protection of the cable conductors from electromagnetic interference. The cable sheath is HFLTx.

Characteristic
 Value
Type of conductor Solid
Conductor Diameter 22 AWG
Insulation Type HDPE
Outer jacket HFLT
Sheath color violet
Cable diameter 7,8+_0,1 mm
Operating temperature range to +75oС
Complies with ANSI/TIA-568-C.2-1
Meters in a box 305 m
Frequency range 1-2000 Mhz
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
LAN-8SFTP-HFLT LANMASTER SFTP cable, 4 pairs, cat. 8, 2000Mhz, нг(А)-HFLTx, 305 m Add to list
