LANMASTER FTP cable, 4 pairs, cat. 6, with separator, 250Mhz, LSZH, 305 m

Product Code: LAN-6EFTP-LSZH-xx

LANMASTER FTP cable, 4 pairs, cat. 6, with separator, 250Mhz, LSZH, 305 m

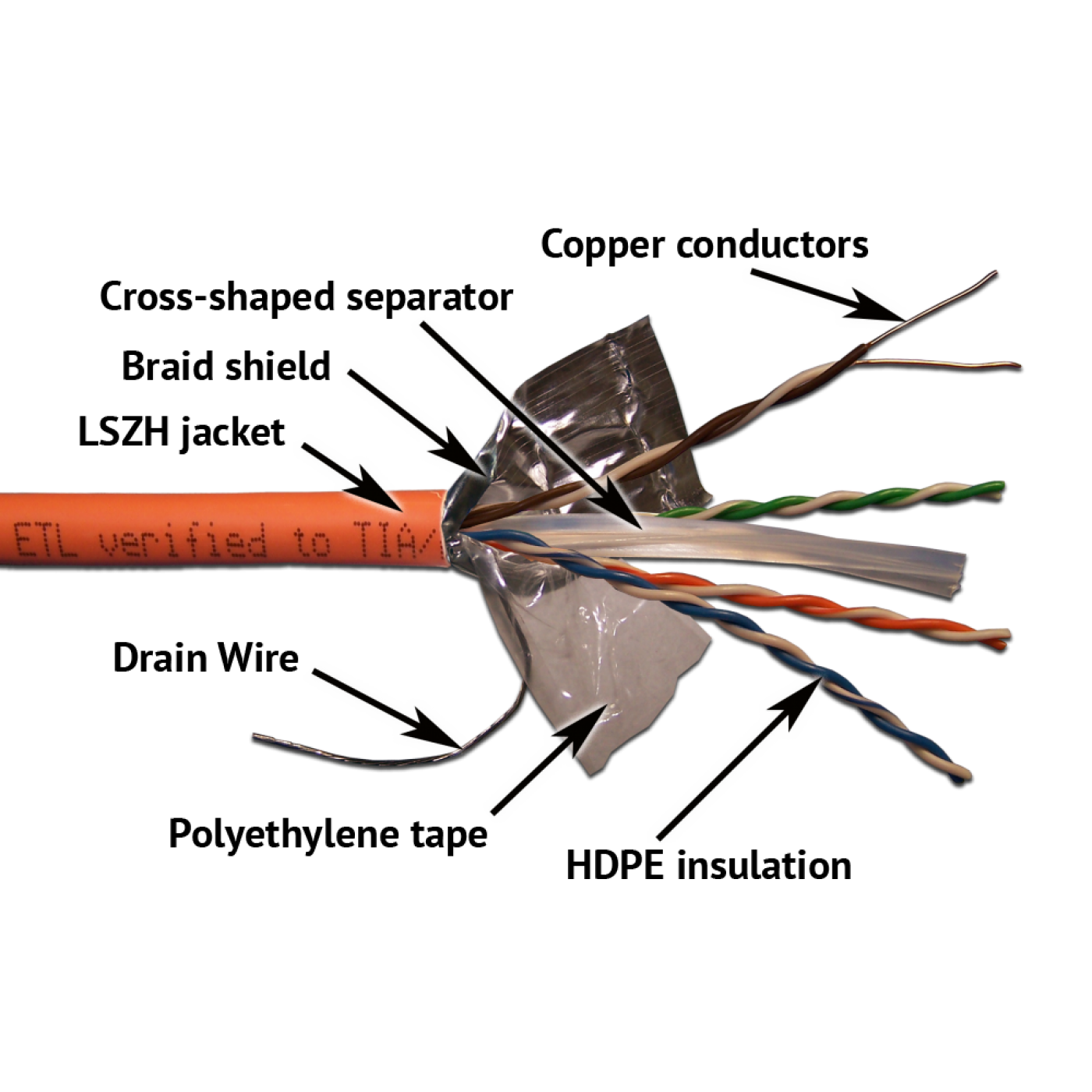

The cable consists of 4 pairs of single copper conductors.
The diameter of the conductor is 23AWG.
Each conductor is protected with HDPE (high density polyethylene) insulation.

Two conductors stranded with a specially selected step make up one twisted pair.
The pairs are separated from each other by a cross-shaped partition increasing the transient attenuation between the pairs.

4 twisted pairs are wrapped in polyethylene film and together with a solid copper grounding conductor are enclosed in a common foil screen and LSZH (low smoke, zero-halogen) jacket.

Characteristic of the cable:

Characteristic Value
Type of conductor Solid
Conductor Diameter 23 AWG
Insulation Type HDPE (High Density Polyethylene)
Outer jacket LSZH
Sheath color Orange
Cable diameter 7,2 мм
Operating temperature range до +75oС
Impedance 100 ± 15 Ом
Fire resistance level CM ( generous purpose communication cable)
DC Resistance Unbalance of a pair 5%
Capacitance Unbalance pair to Ground 330 pF / 100 m
Propagation Delay Skew 40 nS / 100 m
Nomal velocity propagation 69%
Certified by the laboratory 3P & ETL
Complies with ISO/IEC 11801; EN50173-1; IEC 60332-1-2 754 1034 811 HD 624.7
Meters in a box 305 м
Color coding Pair 1 "blue/white-blue";
Pair 2 "orange/white-orange";
Pair 3 "green/white-green";
Pair 4 "brown/white-brown".


Cable transfer characteristics:

Frequency
(MHz)
IL
(dB/100 м)
NEXT
(dB)
ACR
(dB)
PS.NEXT
(dB)
PS.ACR
(dB)
ELFEXT
(dB/100 м)
PS.ELFEXT
(dB/100 м)
Return Loss
(dB)
1 2.0 74.3 72.3 72.3 70.3 67.8 64.8 20.0
4 3.8 65.3 61.5 63.3 59.5 55.7 52.7 23.0
8 5.3 60.8 55.3 58.8 53.3 49.7 46.7 24.5
10 6.0 59.3 53.3 57.3 51.3 47.8 44.8 25.0
16 7.6 56.3 48.7 54.3 46.7 43.7 40.7 25.0
20 8.5 54.8 46.3 52.8 44.3 41.7 38.7 25.0
25 9.6 53.3 43.7 51.3 41.7 39.8 36.8 24.3
31.25 10.7 51.9 41.2 49.9 39.2 37.9 34.9 23.6
62.5 15.4 47.4 32.0 45.1 30.0 31.8 28.8 21.5
100 19.8 44.3 24.5 42.3 22.5 27.8 24.8 20.1
155 25.1 41.5 16.4 39.5 14.4 23.9 20.9 18.8
200 29.0 39.8 10.8 37.8 8.8 21.7 18.7 18.0
250 32.8 38.3 5.5 36.3 3.5 19.8 16.8 17.3
