LANMASTER FTP patch cord cable, 4x2, cat. 5E, 100 MHz, LSZH, 305 m

LANMASTER FTP patch cord cable, 4x2, cat. 5E, 100 MHz, LSZH, 305 m

Product Code: LAN-5EFTP-PT-LSZH-xx

LANMASTER FTP patch cord cable, 4x2, cat. 5E, 100 MHz, LSZH, 305 m
Model range

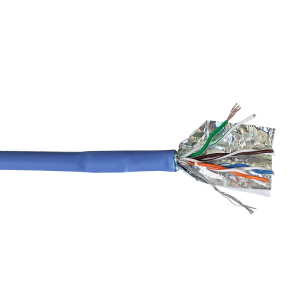

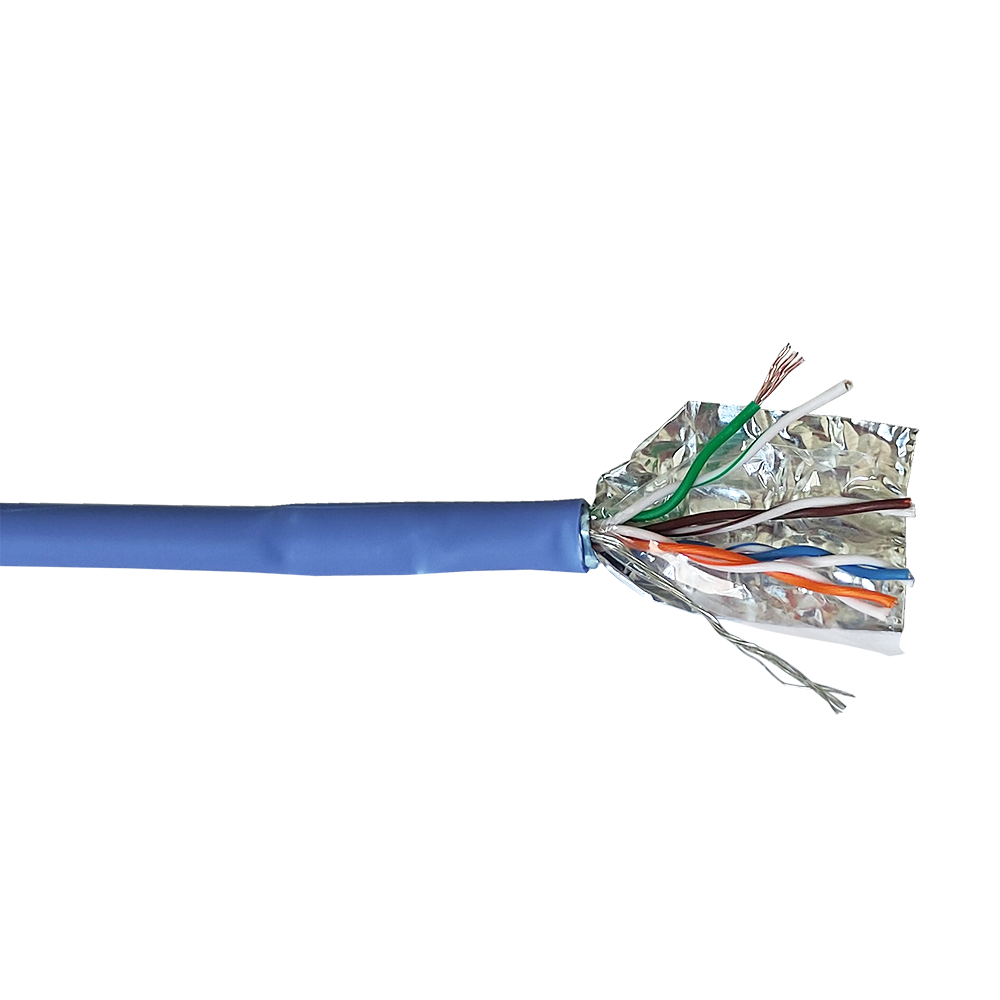

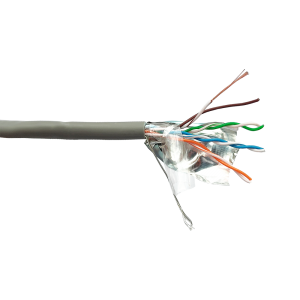

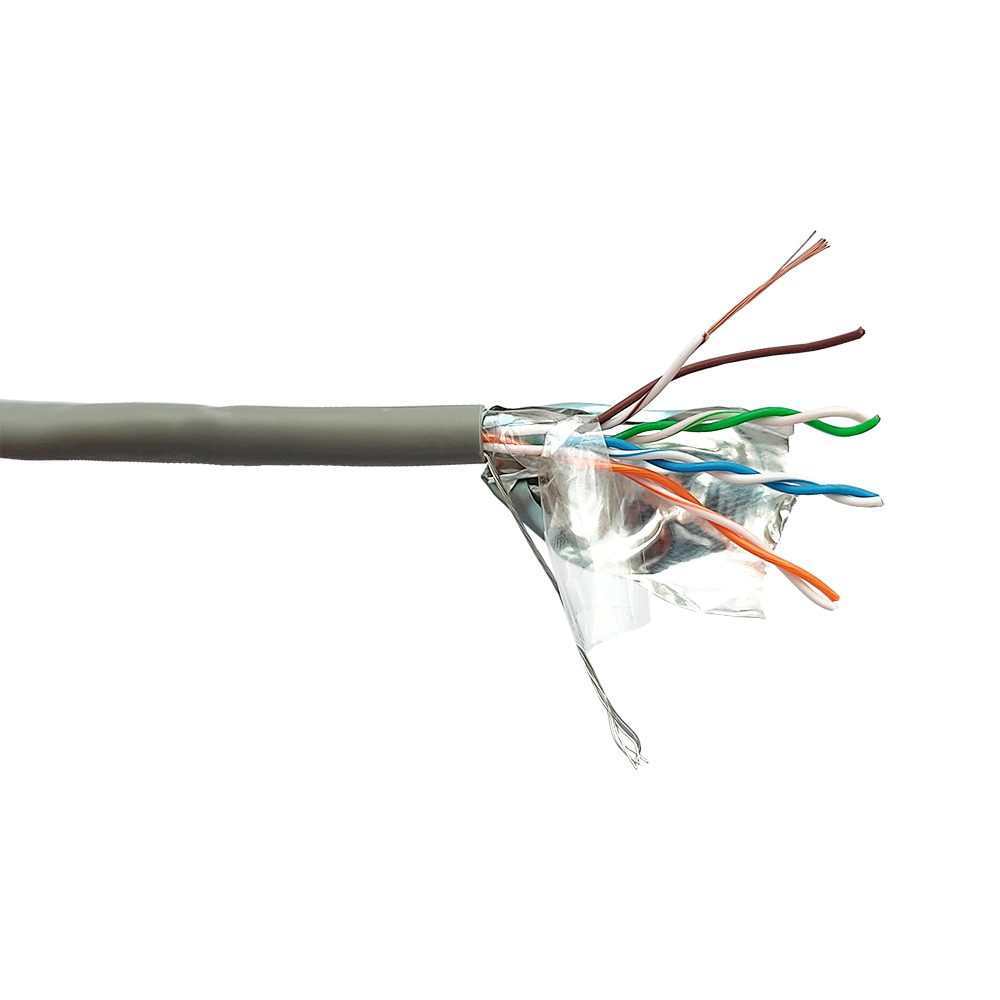

The cable consists of 4 pairs of stranded copper conductors.
The diameter of the conductor is 26AWG.
Each conductor is protected with HDPE (high density polyethylene) insulation.

Two conductors stranded with a specially selected step make up one twisted pair.
4 twisted pairs and a partition are put in a common LSZH (low smoke, zero halogen) jacket.

Characteristic of the cable:

Characteristic Value
Type of conductor Stranded
Conductor Diameter 26 AWG
Insulation Type HDPE (High Density Polyethylene)
Outer jacket
 LSZH
Cable diameter 5.4 ± 0.2 mm
Nomal velocity propagation 71%
Certified by the laboratory 3P and ETL Certified
Complies with TIA/EIA 568-C.2 cat. 5E; IEC 61156-6; IEC 60332-1-2; IEC 61034; IEC 60754-2

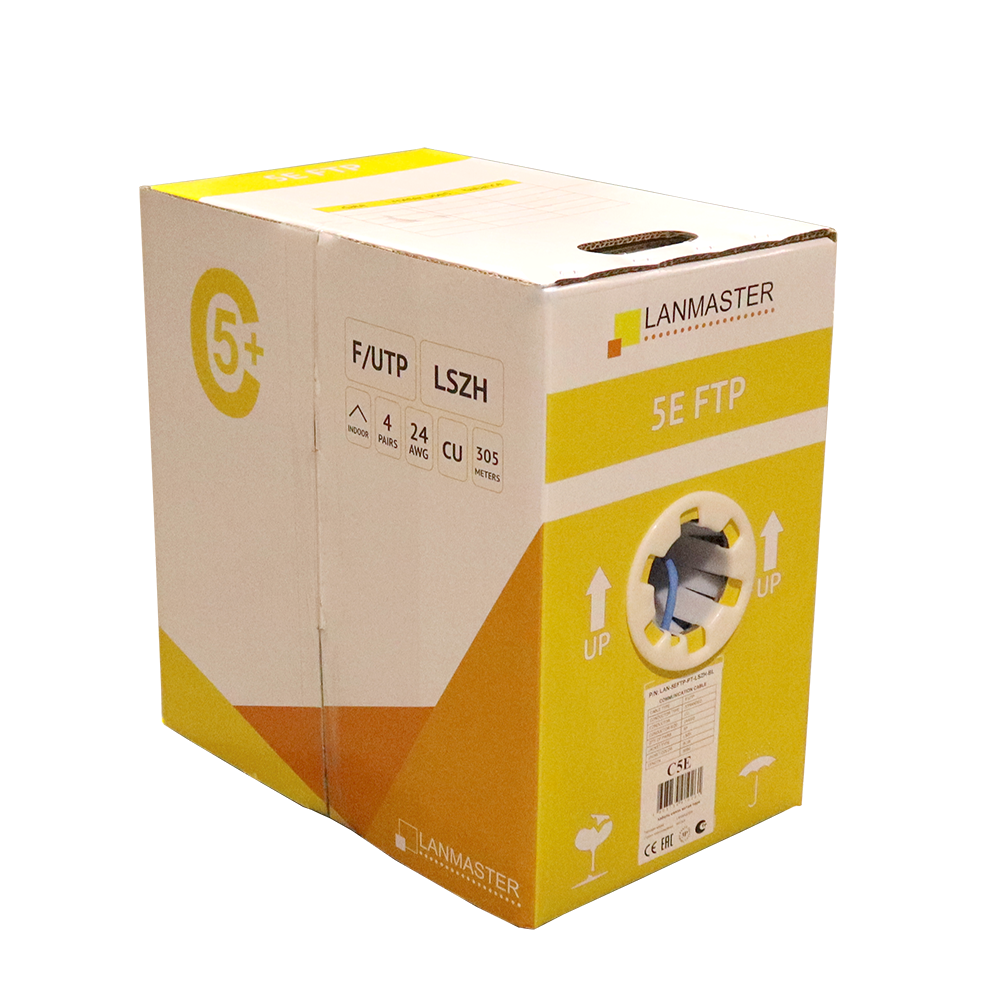

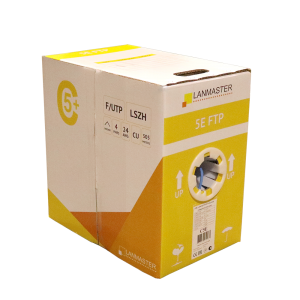

Meters in box 305 m
Color coding Pair 1 "blue/white-blue";
Pair 2 "orange/white-orange";
Pair 3 "green/white-green";
Pair 4 "brown/white-brown".
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (3)

Code Name
LAN-5EFTP-PT-LSZH-BL LANMASTER FTP patch cord cable, 4x2, cat. 5E, 100 MHz, LSZH, blue, 305 m Add to list
LAN-5EFTP-PT-LSZH LANMASTER FTP patch cord cable, 4x2, cat. 5E, 100 MHz, LSZH, orange, 305 m Add to list
LAN-5EFTP-PT-LSZH-GY LANMASTER FTP patch cord cable, 4x2, cat. 5E, 100 MHz, LSZH, grey, 305 m Add to list
