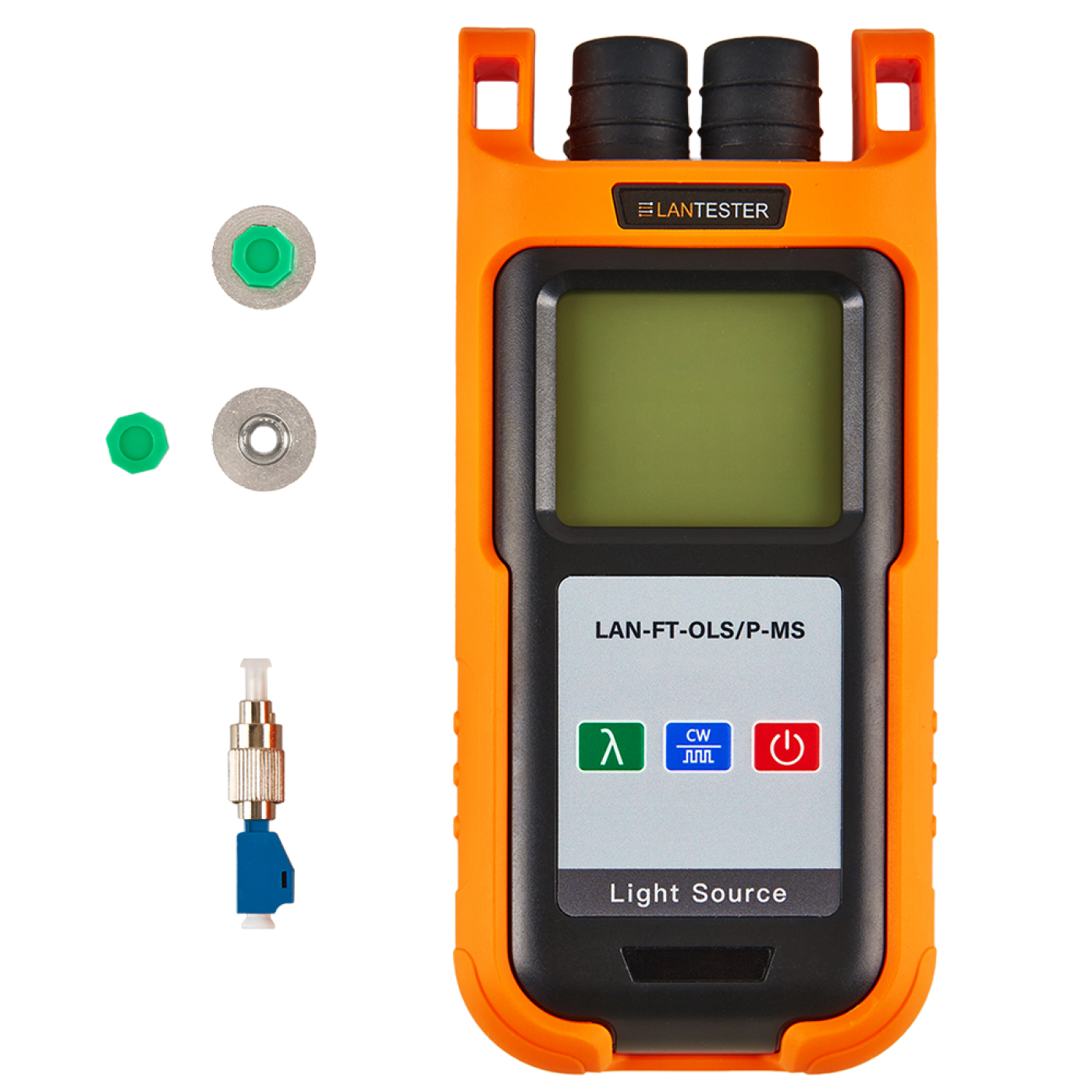

High-precision optical light source, SM+MM, connectors FC/SC/ST/LC

High-precision optical light source, SM+MM, connectors FC/SC/ST/LC LAN-FT-OLS/P-MS: specifications, description and use in structured cabling and LANMASTER infrastructure projects.
LAN-FT-OLS/P-MS


Frequently Asked Questions

What is the LAN-FT-OLS-P-MS optical light source used for?

An optical light source (OLS) generates a stable test signal at a given wavelength and power for measuring fiber optic line attenuation together with an optical power meter (OPM) at the other end of the line.

Product lan-ft-ols-p-ms
Product lan-ft-ols-p-ms
What wavelengths does the source operate at?

The source generates a signal at 1310 and 1550 nm, matching single-mode fiber optic lines.

How is the source used together with a power meter?

The source connects to one end of the fiber optic line, and the optical power meter connects to the other end; the difference between the source's known output power and the power measured at the receiving end gives the line's attenuation in dB.

Does the light source need a reference measurement before being used together with a power meter?

Yes, before measuring insertion loss it is recommended to take a reference measurement (a "0 dB" baseline): connect the source directly to the power meter through a reference cord and record that reading as the baseline. This compensates for the individual differences between that specific pair of instruments and keeps the subsequent loss measurements accurate.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-FT-OLS/P-MS pcs 220 × 120 × 60 0.4 0.001584

Product Codes (1)

  • High-precision optical light source, SM+MM, connectors FC/SC/ST/LC
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
