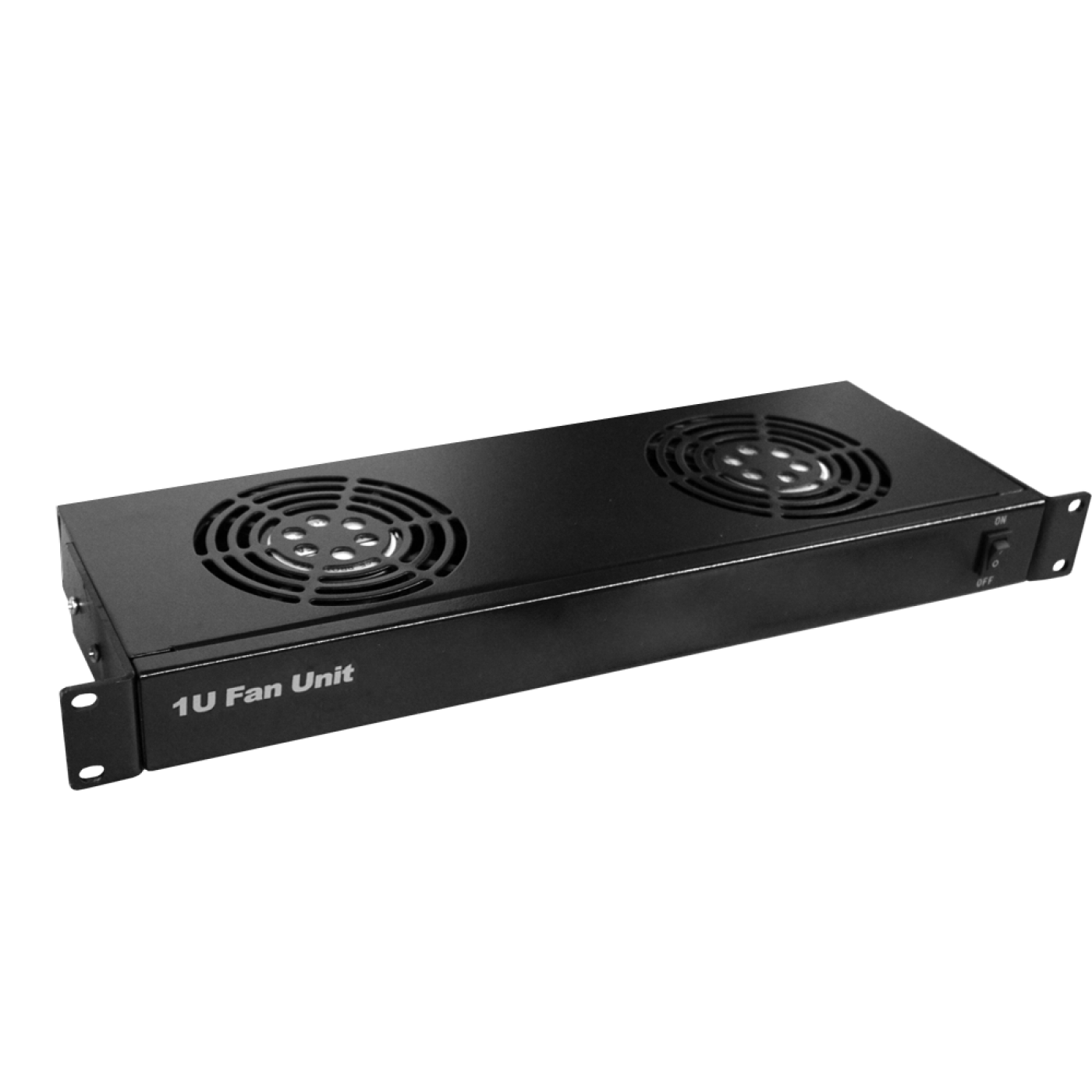

19" fan unit without thermostat

19" fan unit without thermostat

Product Code: TWT-CBB-FANBx-RACK

19" fan unit without thermostat
Model range

The 19" fan unit is designed to manage airflow inside the telecommunication cabinet. Mounted on 19" rails.

Takes up 1U.

Package includes:

  • fan unit
  • power cord with Schuko plug
  • mounting set
  • user manual.

Specifications:

Description
Value
Input voltage
AC 220 V ±10%
AC Frequency
50 Hz
Ambient operating temperature
from -5 to +50°С

Product code
 Depth (mm)
 Width (mm)
TWT-CBB-FANB2-RACK 174 482,6
TWT-CBB-FANB3-RACK 224 482,6
TWT-CBB-FANB4-RACK 294 482,6
TWT-CBB-FANB6-RACK 450 482,6
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (4)

Code Name
TWT-CBB-FANB2-RACK 19" 2-fan unit, with bearings, without thermostat, 1U Add to list
TWT-CBB-FANB3-RACK 19" 3-fan unit, with bearings, without thermostat, 1U Add to list
TWT-CBB-FANB4-RACK 19" 4-fan unit, with bearings, without thermostat, 1U Add to list
TWT-CBB-FANB6-RACK 19" 6-fan unit, with bearings, without thermostat, 1U Add to list
