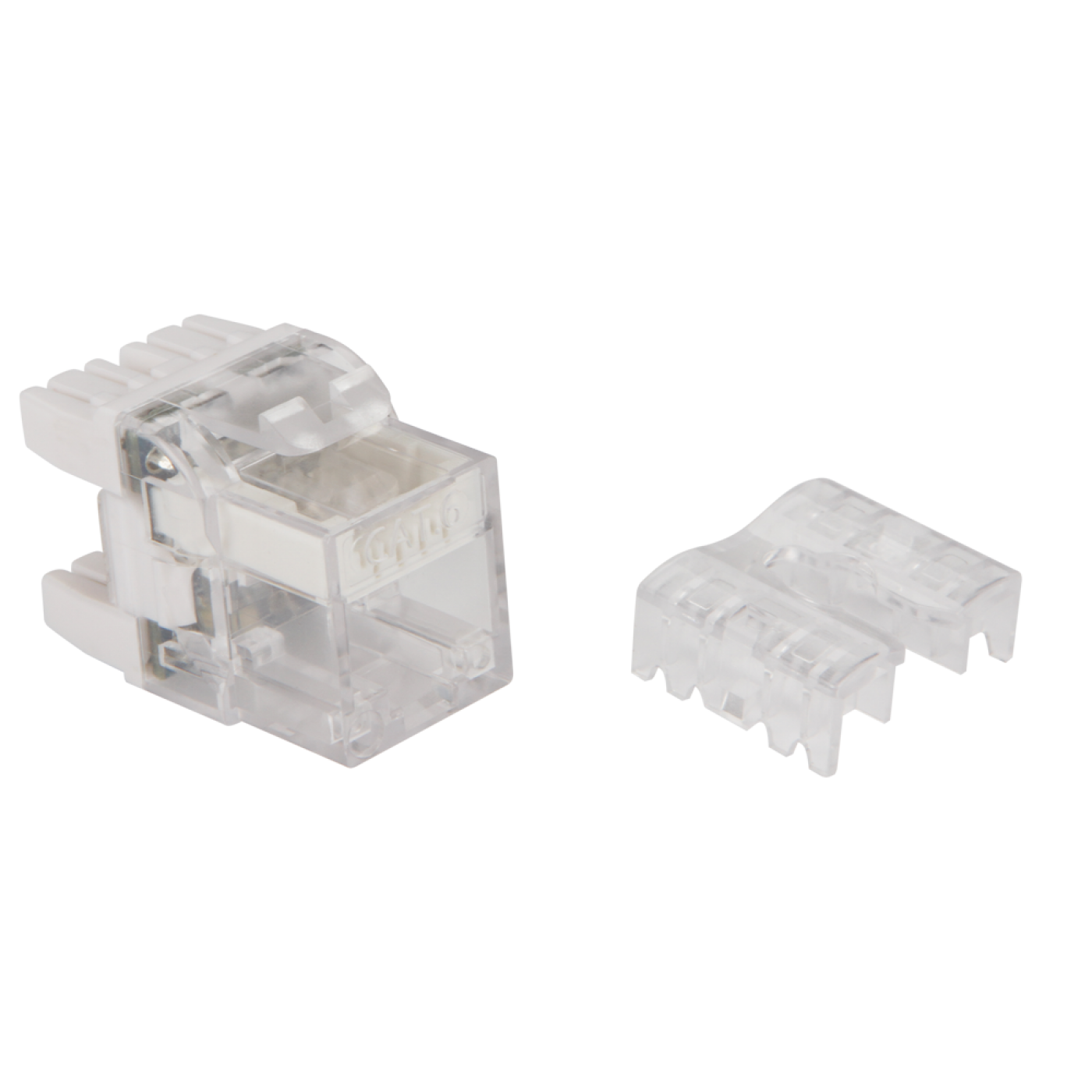

Keystone module, RJ45, category 6, UTP, 180 degrees, with LED, white

Keystone module, RJ45, category 6, UTP, 180 degrees, with LED, white

Product Code: LAN-OKi45U6/180

Keystone module, RJ45, category 6, UTP, 180 degrees, with LED, white
Model range

The module can be used to complete unshielded telecommunication sockets installed in wall trunks, in a wall box, also for installation in modular patch panels (see the compatibility items).

Category 6 compliant.

A distinctive feature of this module is the presence of a built-in LED, which, when the LAN-PPi-CHKTOOL transmitter is connected at the other end of the line, will be highlighted in green. Thus, the modules can be used to search for sockets and determine the connection of equipment.

The module has a standard Keystone form-factor and can be used not only in LANMASTER socket adapters, but also in socket adapters from other manufacturers.

There is an eight-pin RJ-45 socket on the front side of the module, and there is a block for eight contacts of the IDC110 type on the back side, located at an angle of 180˚ to the front surface of the module. The insulation displacement contact method is used (IDC) to terminate incoming cable.

There is a wiring diagram for the cable conductors between the IDC pins in accordance with the T568A and T568B wire map for ease of installation.

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
LAN-OKi45U6/180 Keystone module, RJ45, category 6, UTP, 180 degrees, with LED, white Add to list
