TWT optical patch cord, PVC, FC/PC-SC/PC, MM

Product Code: TWT-SC-FC-MM

TWT optical patch cord, PVC, FC/PC-SC/PC, MM

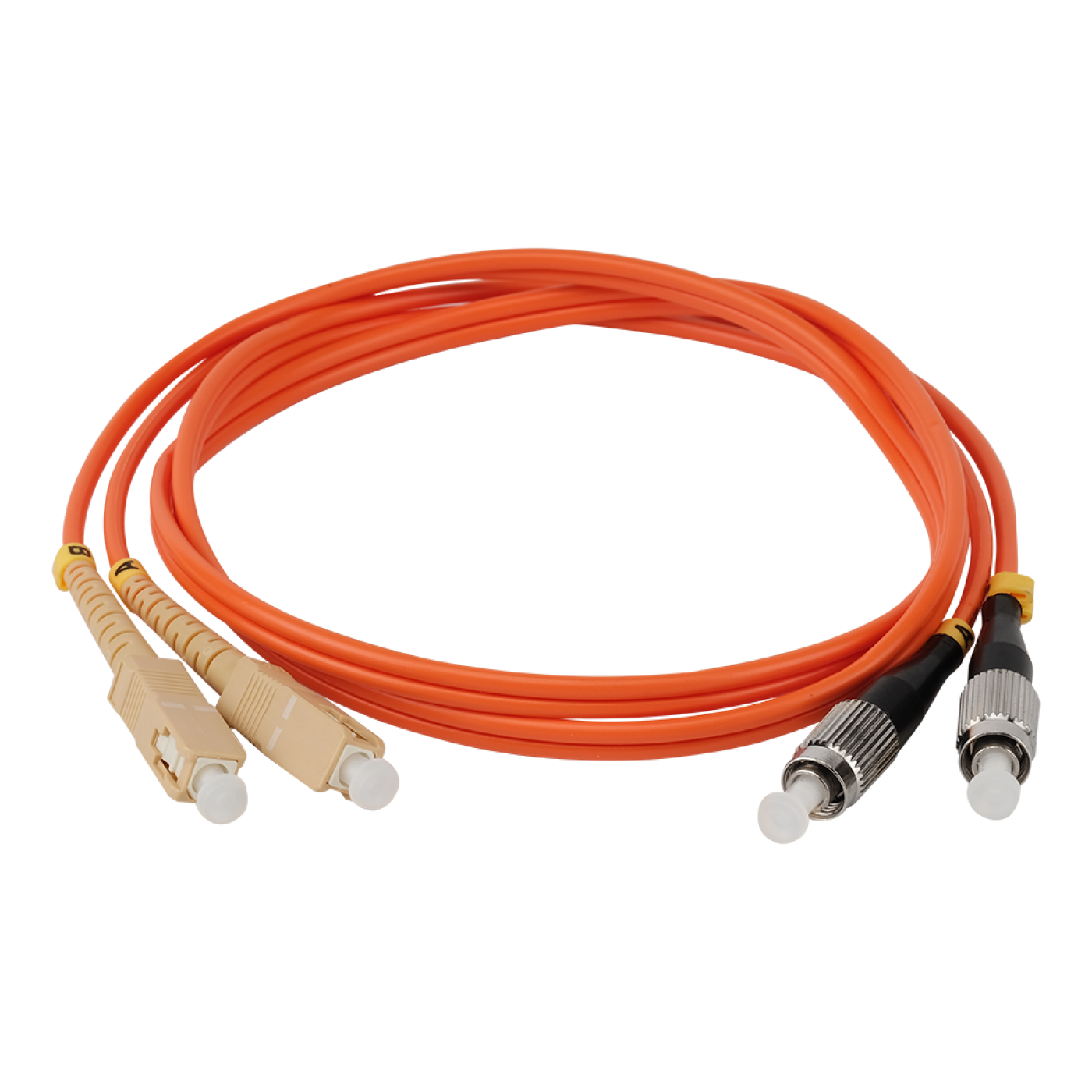

The patch cord is a piece of optical cable 50/125 with optical FC connector at one end and SC at another end.

TWT patch cords are produced in a PVC (polyvinylchloride) jacket and with a standard polishing quality.

The patch cord is used for connection between various network devices or between a network device and a fiber optic cross or inside a fiber optic cross.

Installed connectors are numbered.

Each patch cord comes individually packaged.

Specifications

Insertion loss
Return loss
Number of fibers (cord type)1, 2 fiber (simplex, duplex)
Fiber optic type50/125 (OM2)
Buffer coatingPolyvinylchloride (PVC)
JacketPolyvinylchloride (PVC)
Connector typeFC, 2FC (duplex), SC, 2SC (duplex)
Polish style
PC, UPC, APC
Buffer coating thickness3 mm

Patch cords with a length of 1, 2, 3 and 5 meters are constantly in stock. Patch cords of other lengths are also available on request with any fiber type (OM1, OM2) as simplex or duplex structure with various polishing options (PC, UPC, APC).

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (3)

Code Name
TWT-2FC-2SC/OM2-1.0 TWT optical patch cord, PVC, duplex, FC/PC-SC/PC, MM 50/125, 1.0 m Add to list
TWT-2FC-2SC/OM2-2.0 TWT optical patch cord, PVC, duplex, FC/PC-SC/PC, MM 50/125, 2.0 m Add to list
TWT-2FC-2SC/OM2-3.0 TWT optical patch cord, PVC, duplex, FC/PC-SC/PC, MM 50/125, 3.0 m Add to list
