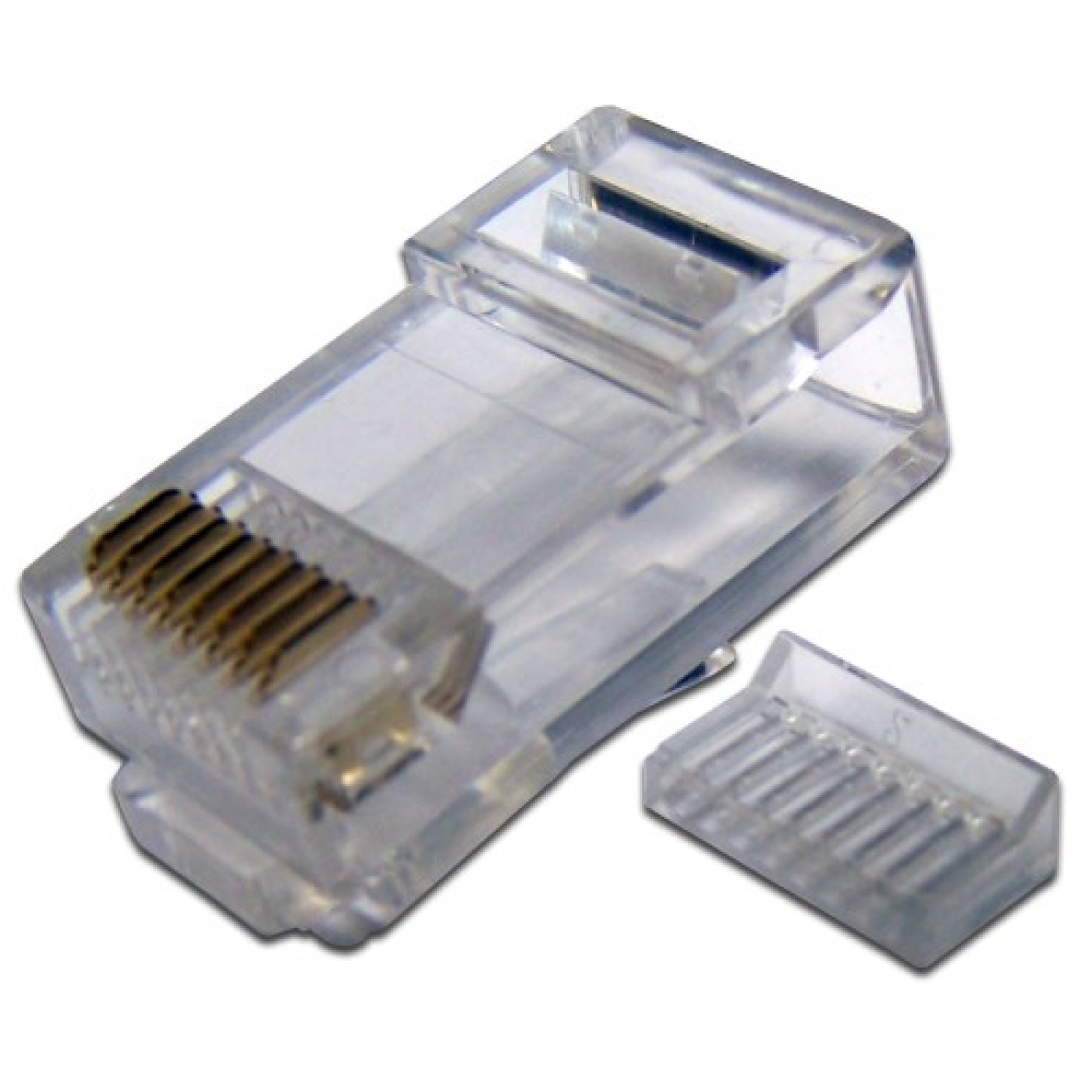

RJ45 UTP 8P8C plug, universal, with load bar, cat. 6, 100 pcs

RJ45 UTP 8P8C plug, universal, with load bar, cat. 6, 100 pcs

Product Code: TWT-PL45-8P8C-6V

RJ45 UTP 8P8C plug, universal, with load bar, cat. 6, 100 pcs
Model range

Unshielded RJ-45 connectors are designed for assembling unshielded patch cords. The design of the contact pins allows them to be used for terminating both solid and stranded cables. A specific plug has been developed to work with a solid 23AWG cable.

To facilitate the process of laying out conductors and controlling their location, it is equipped with a load bar. After laying the conductors in their places and trimming the excess wires from the end part, the load bar is inserted into the plug body until it stops. The connector is then crimped using crimping pliers.

Meet the requirements of category 6. Has 8 contacts. Contacts are plated with a thin layer of precious metals to improve conductivity. It is recommended to use protective boots TWTTWT-BO-6.0-xx/100 together with the plugs to ensure correct bending radius of the terminated cable.

Layout of conductors in the plug
according to T-568B
Contact pin design of universal
 plug


Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-PL45-8P8C-6V RJ45 UTP 8P8C plug, universal, with load bar, cat. 6, 100 pcs Add to list
