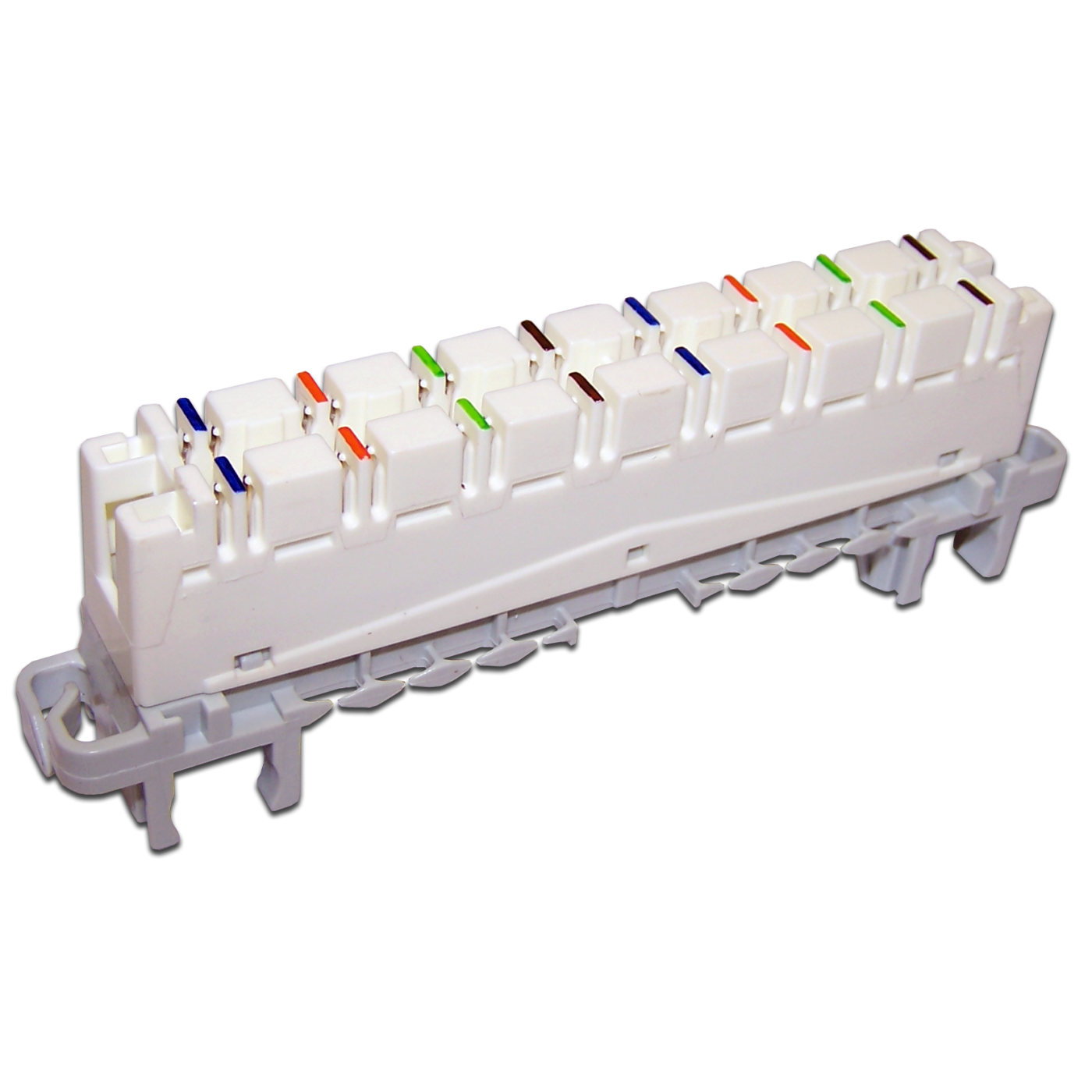

LSA PROFIL disconnection module, highband, 8 pairs, for back mount frame and profile rods

LSA PROFIL disconnection module, highband, 8 pairs, for back mount frame and profile rods

Product Code: TWT-LSA8P-DIS-5E

LSA PROFIL disconnection module, highband, 8 pairs, for back mount frame and profile rods
Model range

Connection modules are the basic element of the distribution point and are used to connect cables and jumper wires.

Connection modules are produced in a disconnection design. The connection of any pair of pins on a disconnection module can be temporarily interrupted using a disconnection plug.

The module design is optimized to work with 4-pair twisted pair cables and meets the requirements of category 5E according to EN 50173/ISO 11801. The module contacts have an increased distance between individual pairs to reduce interference at the termination point. The top side of the module has color marks of pairs.

Modules are designed for installation both on LSA PROFIL rods and on LSA-PLUS frames.

Module material is high-quality, non-flammable, non-smoky ABS plastic.

Packaged 5 pieces in a bag, 2 bags in a box.

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-LSA8P-DIS-5E LSA PROFIL disconnection module, highband, 8 pairs, for back mount frame and profile rods Add to list
