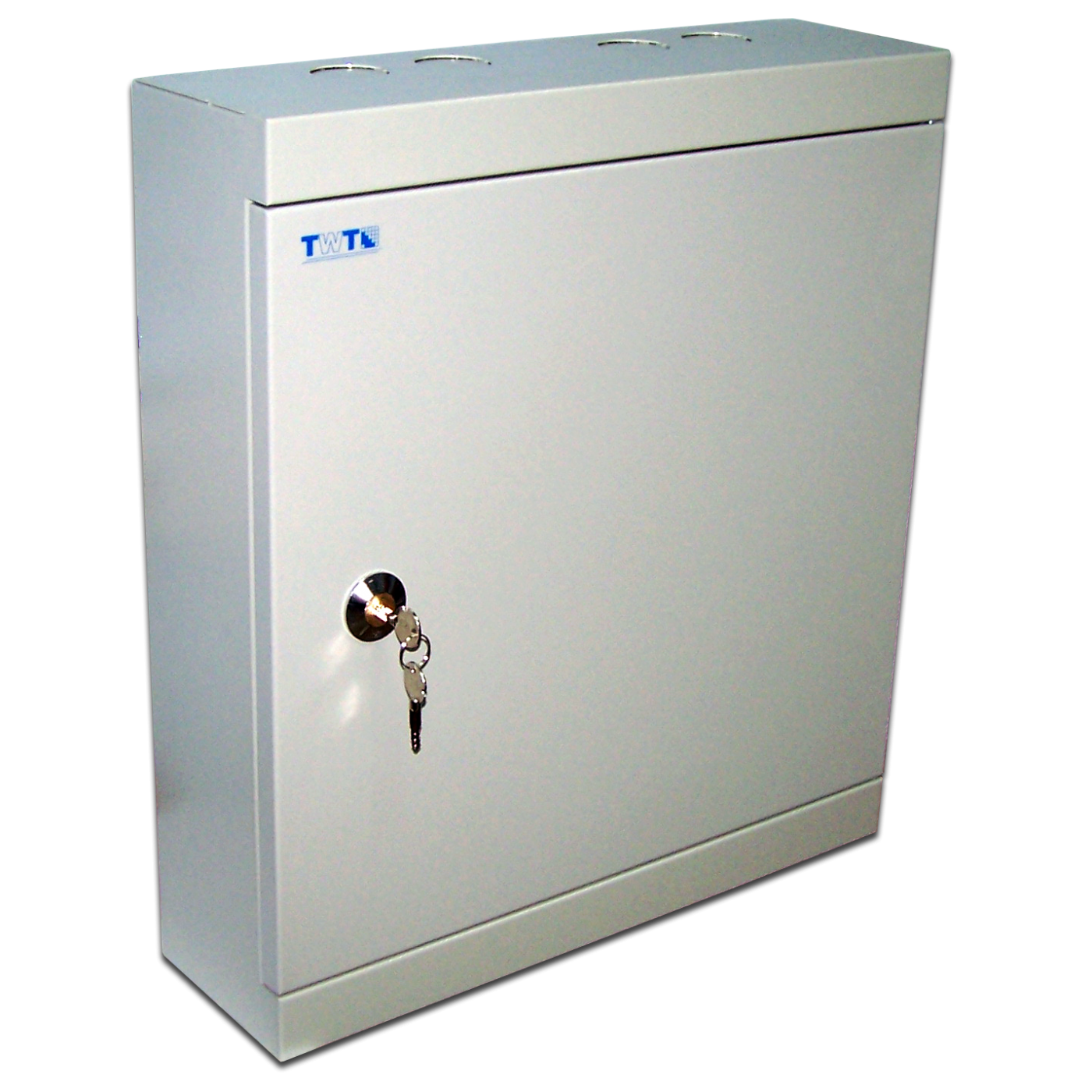

Wall-mounted metal distribution box with lock

Product Code: TWT-DB10-xxP/KM

Wall-mounted metal distribution box with lock

Wall-mounted distribution boxes are designed forinstallation of 10-pair LSA-PLUS connection modules.

Boxes are completed with backmount frames forinstallation of connection modules with a capacity from 200 to 1200 pairs.

The cabinet door is equipped with a lock with two keysincluded and can be installed with opening to the other side.

The depth of the cabinet is designed for the installationof protection magazines or integrated protection plugs with grounding bars.

Cable entry is possible through openings in the topand bottom panels of the cabinet.

The cabinet is completed with rings for organizingcable bundles and clamps for fixing the jackets of the input cables.

Made of cold rolled steel (0.9 mm).

Painting - powder coating.

Color is light grey.





Where D – cabinet depth

H – cabinet height

W – cabinet width

(see product code table)

Product code

Description

Depth,

mm

Width,

mm

Height,

mm

TWT-DB10-20P/KМ

Wall-mounted metal distribution box with lock for 20 connection modules and 200 pairs

130

450

500

TWT-DB10-30P/KМ

Wall-mounted metal distribution box with lock for 30 connection modules and 300 pairs

130

450

600

TWT-DB10-40P/KМ

Wall-mounted metal distribution box with lock for 40 connection modules and 400 pairs

130

450

700

TWT-DB10-60P/KМ

Wall-mounted metal distribution box with lock for 60 connection modules and 600 pairs

130

450

900

TWT-DB10-100P/KМ

Wall-mounted metal distribution box with lock for 100 connection modules and 1000 pairs

130

1000

700

TWT-DB10-120P/KМ

Wall-mounted metal distribution box with lock for 120 connection modules and 1200 pairs

130

1000

900

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
