Fan control thermostat

Fan control thermostat

Product Code: TWT-CB-FAN-THR

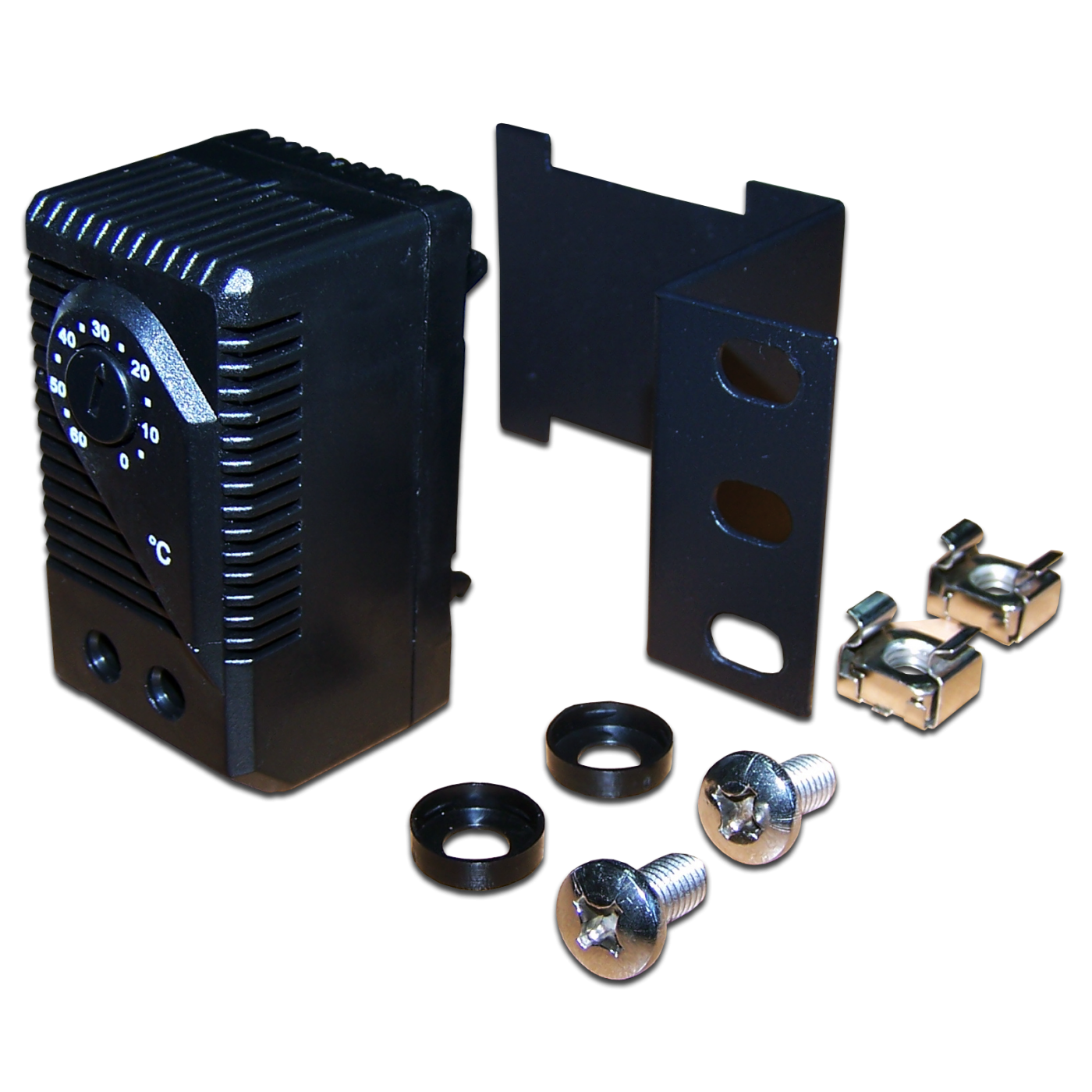

Fan control thermostat
Model range

The thermostat is designed to regulate the temperature inside the telecommunication cabinet.

The temperature threshold is set by the user with the rotary knob on the thermostat body.

The temperature sensor is inside the body.

The thermostat must be connected in a break of the power supply line of the fan unit (tray).

The device is installed in a telecommunications cabinet on a 1U bracket included in the package.


Specifications

Description
 Value
Supply voltage 220 V ±10%
AC Frequency 50 Hz
Relative humidity 20%-85%
Temperature threshold limits from 0 to +60°С
Accuracy of measurements ±2°С
Ambient operating temperature from 0 to +50°С
Maximal load power 7A/250V

Dimensions


Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-CB-FAN-THR Fan control thermostat Add to list
