Flush mounting box for 45x90 mounting frame, yellow

Flush mounting box for 45x90 mounting frame, yellow

Product Code: TWT-BX45x90-YL

Flush mounting box for 45x90 mounting frame, yellow
Model range

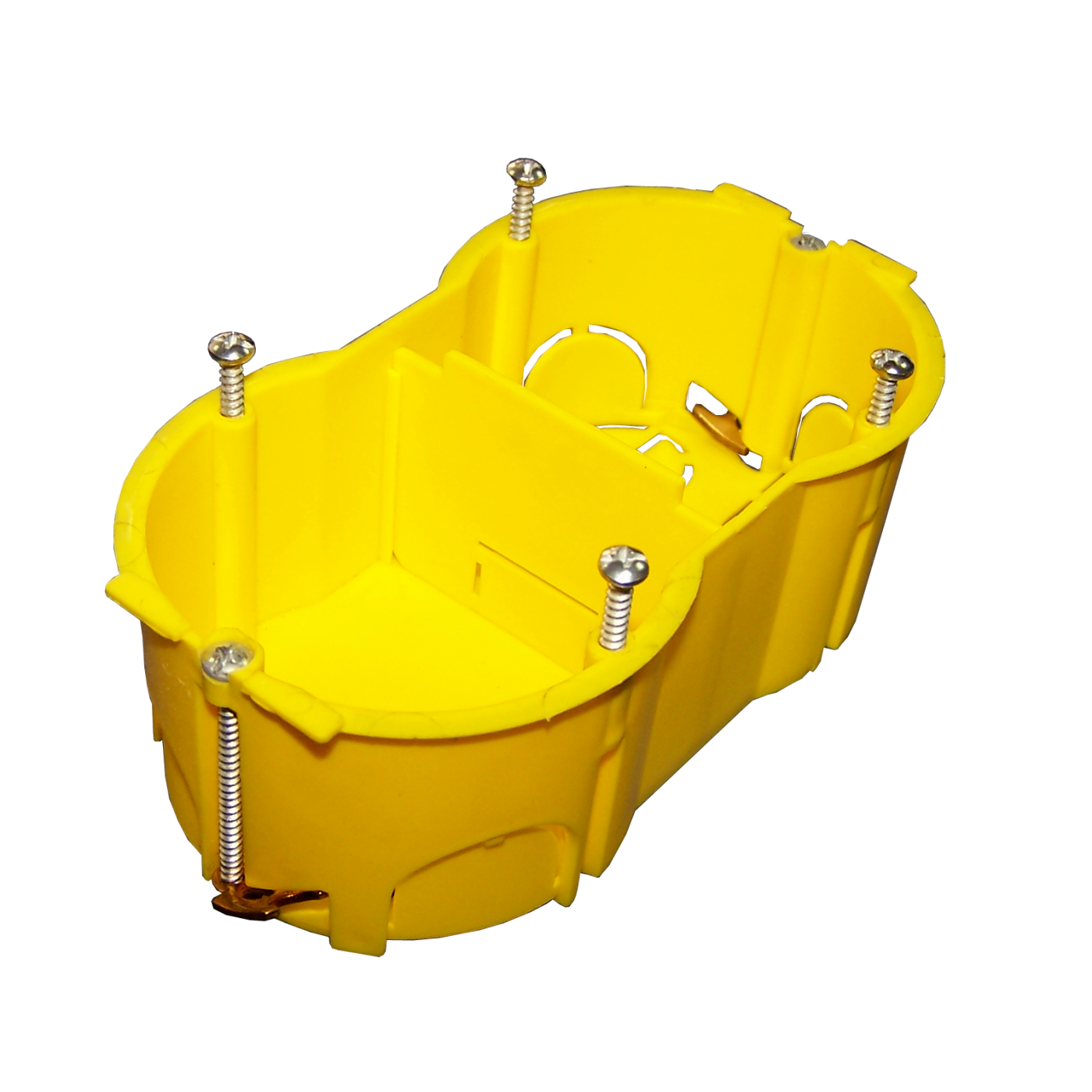

The flush mounting box is designed to install two power sockets, or triple/quad data socket, or combined sockets in a plasterboard wall. The box has 4 holes covered with plugs for cable entry. By breaking out the plugs, you can get the desired shape and size of the hole.

Kit includes 4 screws to install a mounting frame.

A hole must be prepared in the wall to install the box. The box contains 2 marking holes for a Ø65 mm hole saw (center-to-center distance of holes 56.8 mm).

The box depth is 42 mm.

The box is split in half by a removable divider.

The socket can be assembled using a 45x90 metal mounting frame and French 45x90 faceplate. Similar products from other manufacturers can be used.

For options of using this product see document: Typicalassemblies of data sockets with LANMASTER and TWT components.

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-BX45x90-YL Flush mounting box for 45x90 mounting frame, yellow Add to list
