TWT UTP cable, 10 pairs, Cat. 5e, for outdoor installation with messenger, 305 meters per drum

TWT UTP cable, 10 pairs, Cat. 5e, for outdoor installation with messenger, 305 meters per drum

Product Code: TWT-5EUTP10-OUT-TR

TWT UTP cable, 10 pairs, Cat. 5e, for outdoor installation with messenger, 305 meters per drum
Model range

Multi-pair non-shielded cable is intended for transmitting data, telephone and television signals at frequencies up to 100 MHz. The cable consists of 10 pairs of solid copper conductors. Outer jacket: PE. Conductor diameter is 24 AWG.

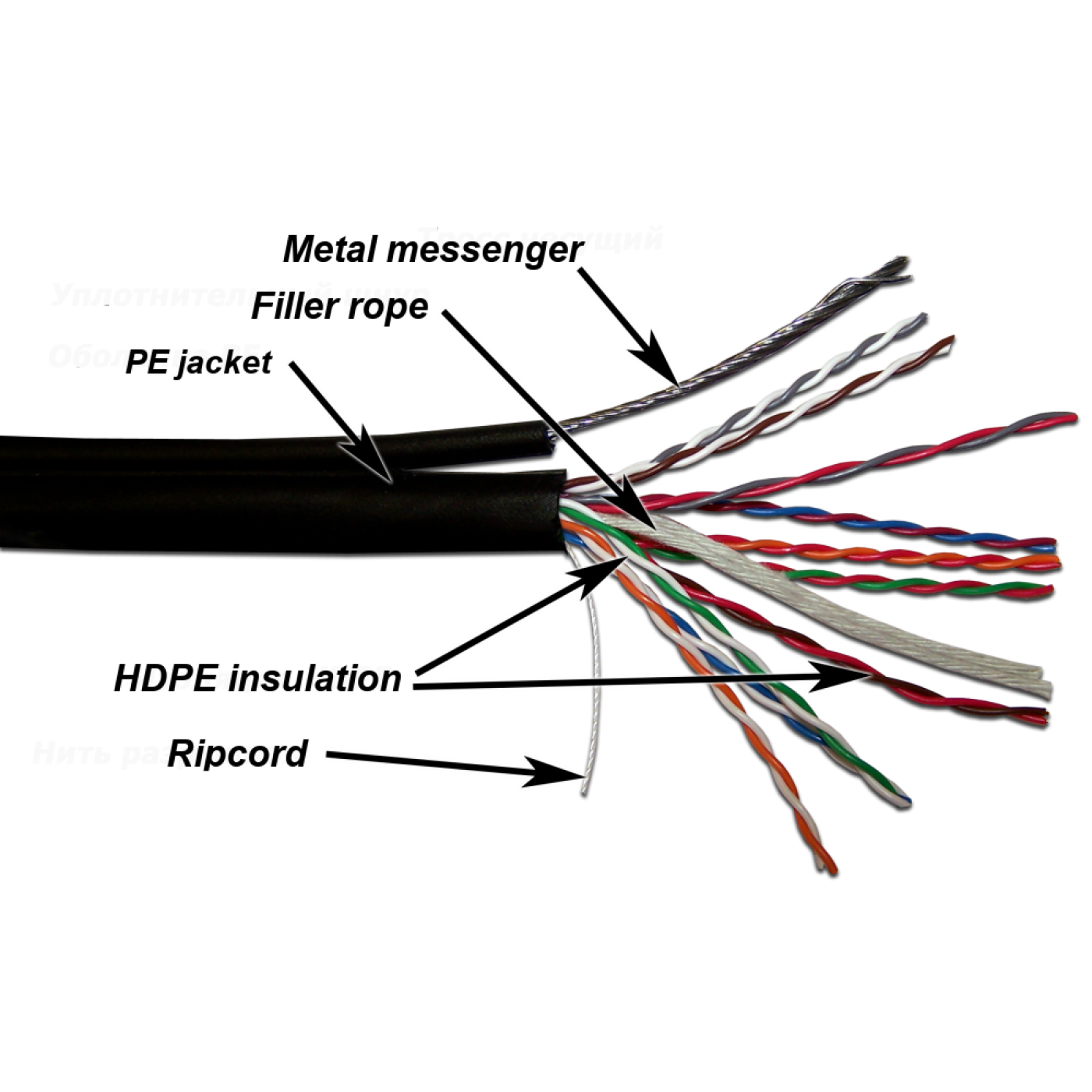

Each conductor is enclosed in HDPE (high-density polyethylene) insulation. Two conductors, twisted with a specially selected step, make up one twisted pair.

Twisted pairs are collected around the central element and enclosed in a common polyethylene (PE) jacket.

The cable includes a stranded steel messenger consisting of 7 steel wires of 0.5 mm diameter, the messenger jacket is connected to the cable jacket, forming a “figure of eight”. Cable with messenger is intended for hanging on overhead communication lines.

To facilitate cable termination, a rip cord is included under the jacket.

The cable is supplied in 305 meters drums. Other construction lengths can be supplied on request.

Physical characteristics of the cable:

Characteristic
Value
Jacket color
Black
Jacket material
PE (Polyethylene)
Insulation material
HDPE (High Density Polyethylene)
Conductor diameter
24 AWG
Conductor Type
Solid
Insulation thickness
0,2+/-0,05 mm
Cable diameter
7,5+/-0,5 mm
Frequency range
1-100 mHz
Operating temperature range
up to +70
Number of meters per drum
305 m
Laboratory certification
UL
Compliant with TIA/EIA 568-A cat.5 standards; ISO/IEC 11801; EN 50173

Support for the following applications:

  • Speech
  • Т1
  • 10BASE-T, 100BASE-T
  • Token Ring 4/16 mb/s
  • ATM 155 mb/s, TP-PMD 100 mb/s
  • 100 VG-AnyLAN
  • 100 Mbps CDDI


Electrical characteristics of the cable:

Characteristic
Value
Impedance
100+/-15 Ohm
Unbalance resistance
5%
Pair capacitance to ground unbalance
330pF/100m
Skew delay
45ns/100m
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
