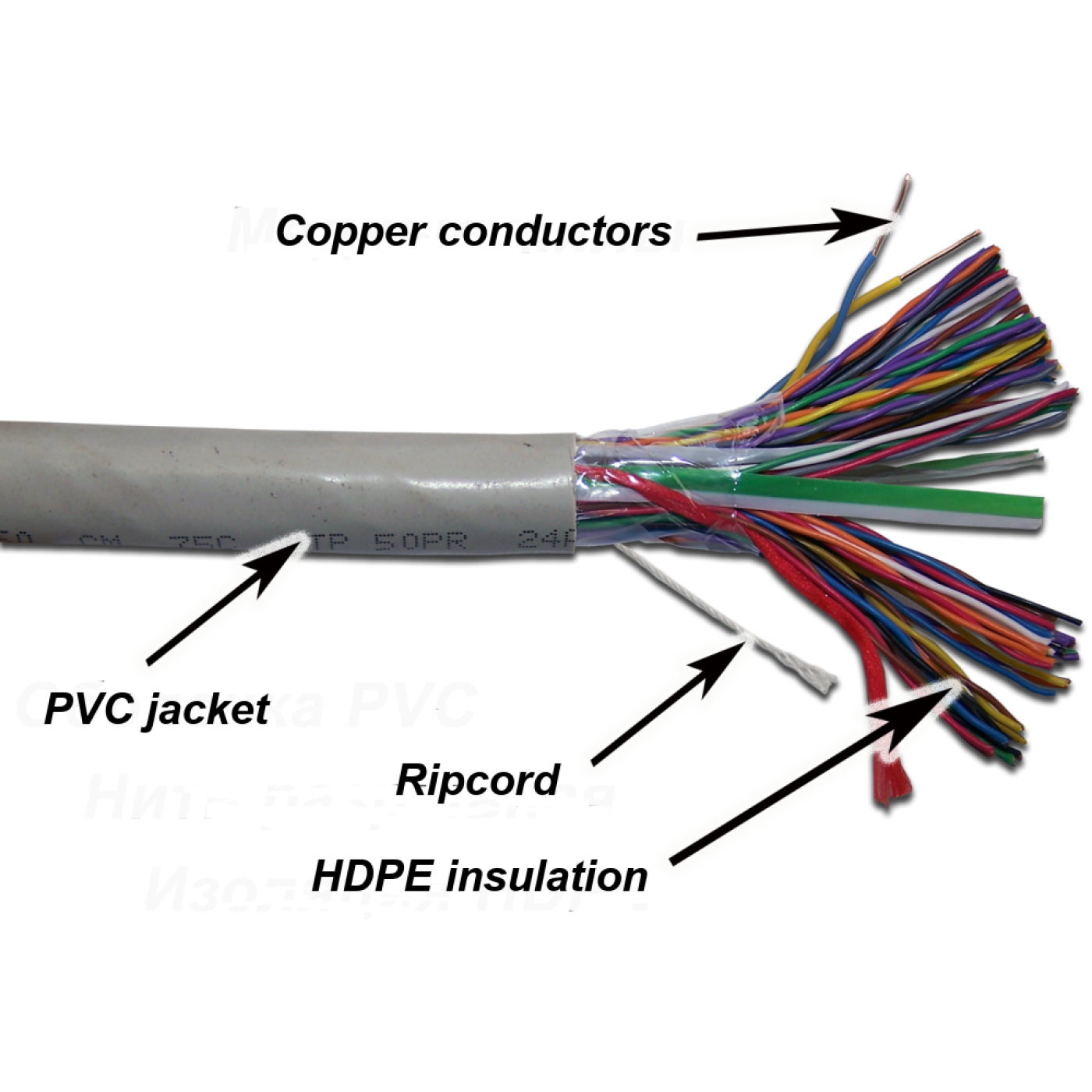

Cable comprises 50 pairs of solid copper conductors.
Each conductor is covered with HDPE (high density polyethylene) insulation.
Two conductors are twisted with specially selected step in a single twisted pair. All tw isted pairs are grouped in a single bundle with polyethylene tape and enclosed in a PVC jacket.
There is a ripcord under the cable jacket for termination process convenience.
The cable is delivered on reels by 305 meters length. Other construction lengths are available by order.
Specification
Value
Jacket Color
Grey
Jacket Material
PVC
Insulation Material
HDPE (high density polyethylene)
Conductor Type
Solid
Conductor Gauge
24 AWG
Nominal Velocity Propagation (NVP)
66%
Cable Diameter
14.0 mm
Cable Length per Reel
305 m
Operating Temperature
-20 ºC to 75 ºC
Regulatory Certific ations
UL VERIFIED
Regulatory Compliance
TIA/EIA 568.2-D cat. 3; ISO/IEC 11801
Color Coding
Pair
Color
Pair
Color
1
white - blue
13
black - green
2
white - orange
14
black - brown
3
white - green
15
black - grey
4
white - brown
16
orange - blue
5
white - grey
17
orange - orange
6
red - blue
18
orange - green
7
red - orange
19
orange - brown
8
red - green
20
orange - grey
9
red - brown
21
pur ple - blue
10
red - grey
22
purple - orange
11
black - blue
23
purple - green
12
black - orange
24
purple - brown
25
purple - grey
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
Model range (1)
Code
Name
TWT-3UTP50
TWT UTP, 50 pairs, category 3, PVC, 305 meters on a reel
