22.5x45 Mosaic insert with Y-Adapter, 2 Ethernet ports, white

22.5x45 Mosaic insert with Y-Adapter, 2 Ethernet ports, white

Product Code: LAN-WA-LP-E2-E2-WH

22.5x45 Mosaic insert with Y-Adapter, 2 Ethernet ports, white
Model range

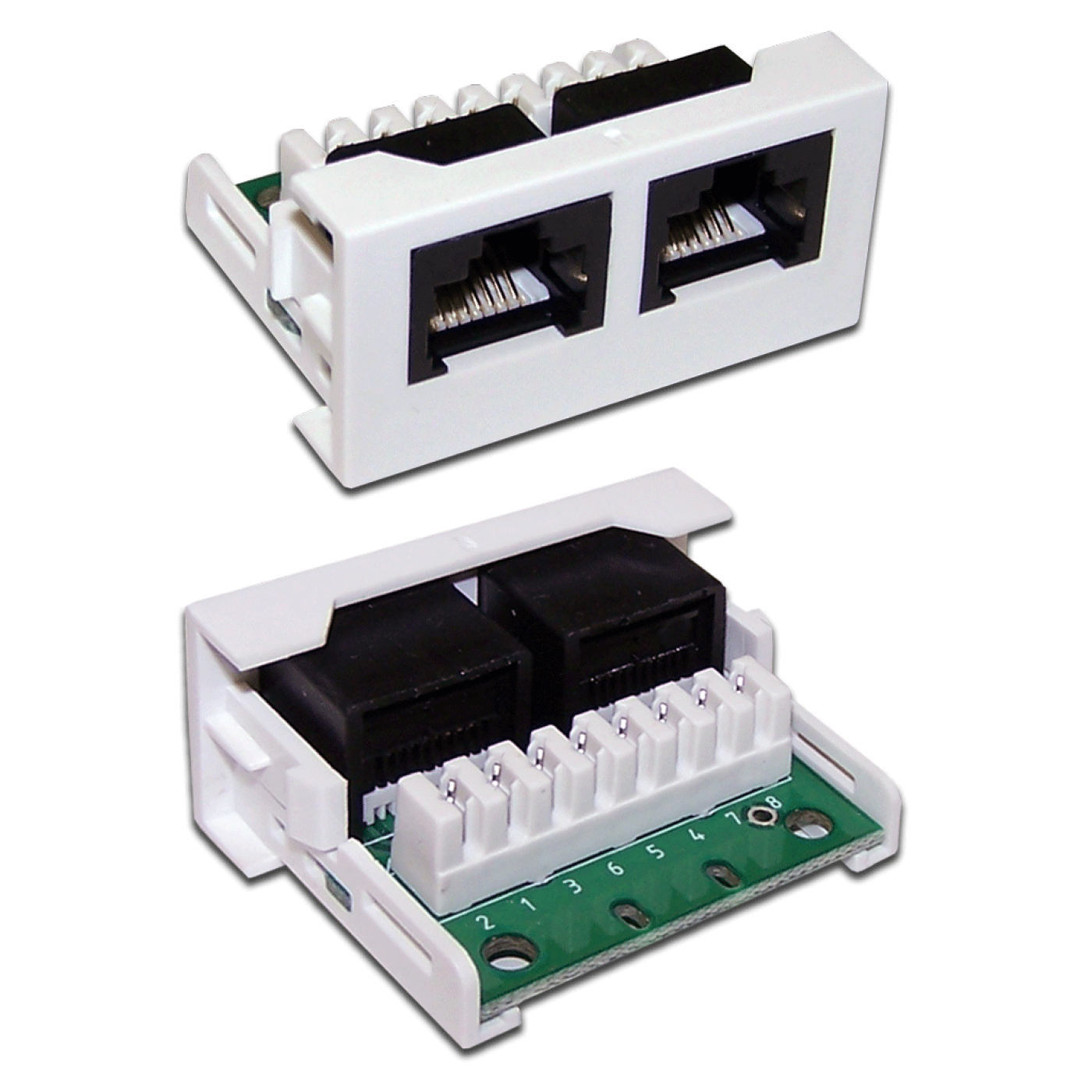

Faceplate with two RJ-45 ports 8P4C. Y-Adapters are convenient for splitting cables in sockets in workplaces. Converts one 4-pair RJ-45 port (T568A/T568B) to two 2-pair ports for 10/100BASE-T applications. T-Adapter TWT-T-E2-E2 must be used together with the Y-Adapter to split the cable on the patch panel.

Termination of the cable from the rear side of the panel is done by the method of insulation displacement contact (IDC) on the LSA type termination block. To ensure error-free connection, all contacts of the blocks have digital identifiers.

The front panel is used to complete Mosaic sockets, for installation in floor hatches, minicolumns, wall blocks. The panel has a size of 45x22.5, installation is done by snapping into the mounting frame.

Supplied individually packed.

Made of ABS.

Color is white RAL9010.

Dimensions
Schematic Diagram
Pinout



Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
