Perimeter sealing kit for LANMASTER DCS cabinet, 800 mm wide

Perimeter sealing kit for LANMASTER DCS cabinet, 800 mm wide
LAN-DC-CB-xxUx8-AIS

The sealing kit is designed to isolate stray airflow around the perimeter of the cabinet in the frontal plane.

When constructing cold/hot aisles, it is recommended to use the seals to prevent cooling air from leaking into the space between the mounting rails and the side walls of the cabinet.

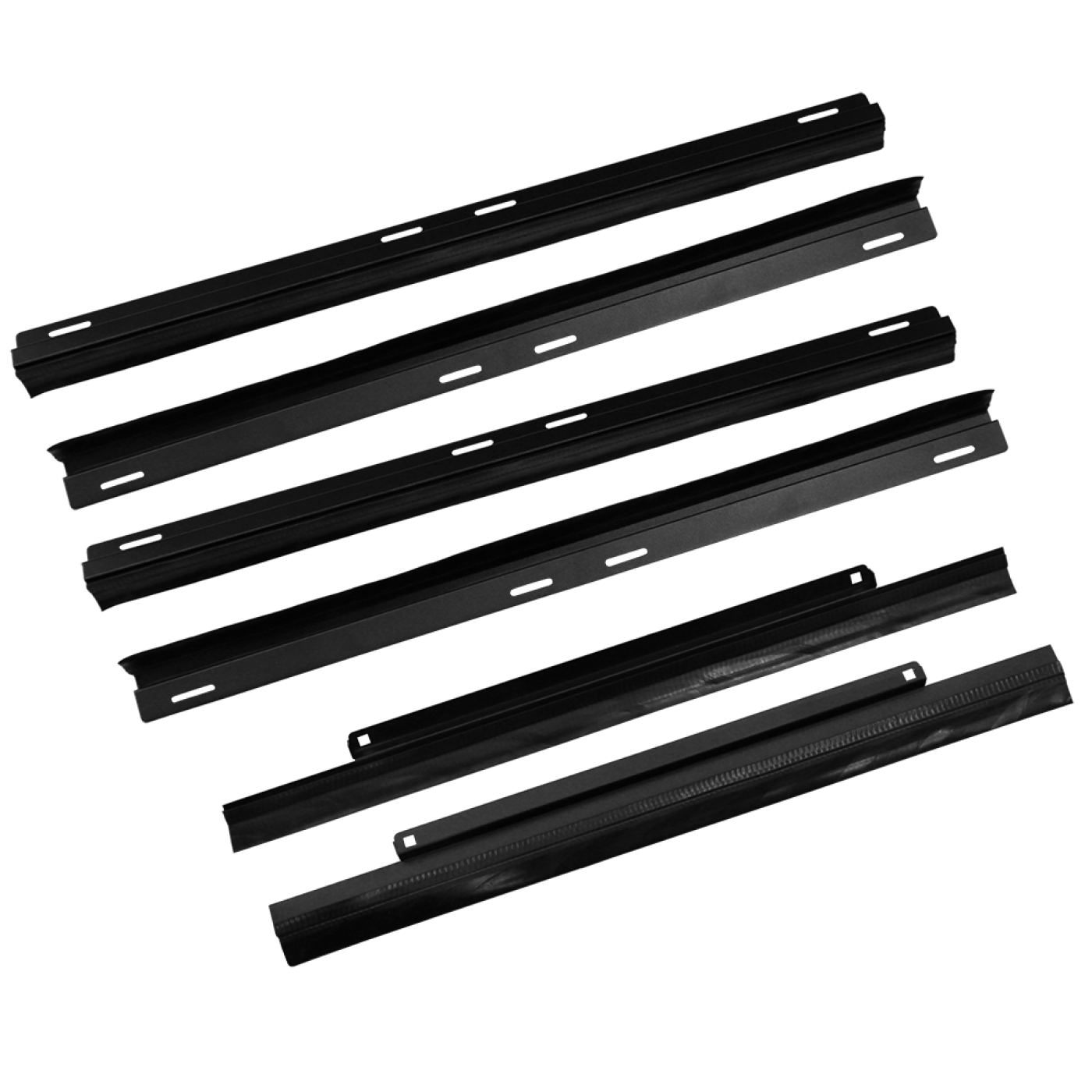

The side parts are mounted on the end side of the vertical rails of 800 mm wide LAN-DC cabinets, the upper and lower parts are fixed to the outermost pair of rail holes at the top and bottom of the cabinet. These parts are made of metal and have rubber seals attached to them.

Frequently asked questions and answers

What is the LAN-DC-CB-xxUx8-AIS kit designed for?

This perimeter sealing kit closes the gaps between the mounting rails and the side walls of an 800 mm wide cabinet, preventing stray airflow.

When is this kind of kit especially important to use?

It is recommended for setting up isolated cold/hot aisles, where air leaking through the cabinet's perimeter reduces cooling efficiency.

What are the kit's parts made of?

Metal parts with attached rubber seals.

How do the kit's parts attach to the cabinet?

The side elements mount on the end face of the vertical rails, and the top and bottom parts attach to the outermost pair of rail holes at the top and bottom of the cabinet.

What cabinet height variants is the kit available in?

LAN-DC-CB-42Ux8-AIS is for 42U cabinets, LAN-DC-CB-48Ux8-AIS for 48U cabinets.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-CB-42Ux8-AIS pcs 830 × 200 × 60 5.1 0.00996
LAN-DC-CB-48Ux8-AIS pcs 965 × 200 × 60 6 0.01158

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-CB-42Ux8-AIS box 860 × 325 × 225 27 0.062888
LAN-DC-CB-48Ux8-AIS box 990 × 320 × 230 30 0.072864

Product Codes (2)

  • Perimeter sealing kit for 42U LANMASTER DCS cabinet, 800 mm wide
  • Perimeter sealing kit for 48U LANMASTER DCS cabinet, 800 mm wide
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
