LANMASTER FTP cable, 4 pairs, cat. 6A, with separator, 500Mhz, LSZH, 305 m

LANMASTER FTP cable, 4 pairs, cat. 6A, with separator, 500Mhz, LSZH, 305 m

Product Code: LAN-6AFTP-LSZH-xx

LANMASTER FTP cable, 4 pairs, cat. 6A, with separator, 500Mhz, LSZH, 305 m
Model range

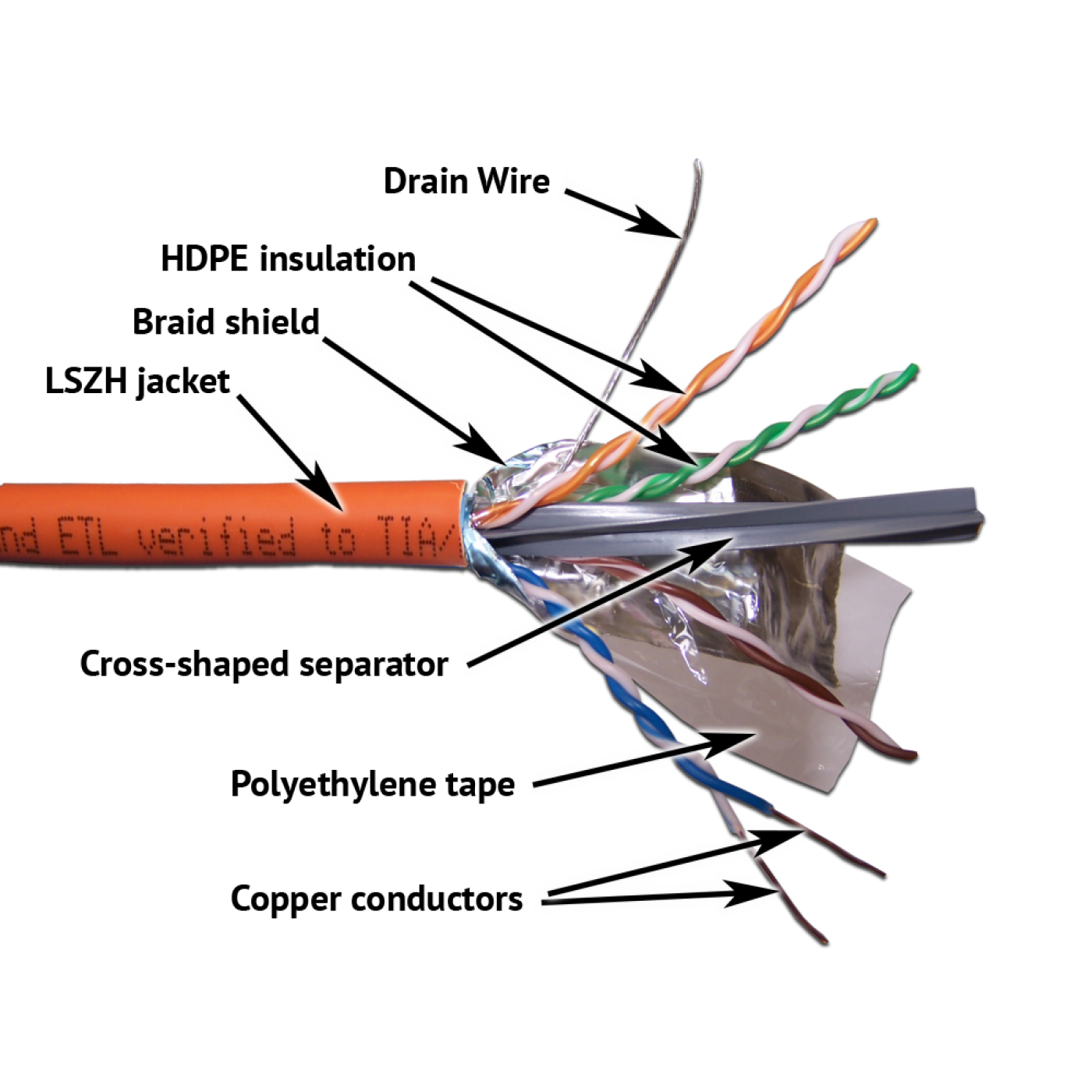

The cable consists of 4 pairs of single copper conductors.
The diameter of the conductor is 23AWG. Each conductor is protected with HDPE (high density polyethylene) insulation.

Two conductors stranded with a specially selected step make up one twisted pair.

The pairs are separated from each other by a cross-shaped partition increasing the transient attenuation between the pairs.

4 twisted pairs and partition are wrapped in polyethylene film and together with a solid copper grounding conductor are enclosed in a common laminated foil screen and LSZH jacket.
Sequential meter length marks are printed on the cable jacket.


Characteristic of the cable:

Characteristic Value
Type of conductor Solid
Conductor Diameter 23 AWG
Insulation Type HDPE (High Density Polyethylene)
Outer jacket LSZH
Sheath color Orange, Blue
FTP screen type laminated aluminum foil around 4 pairs
Cable diameter 7,7 mm
Operating temperature range to +60oС
Impedance 100 ± 15 Ohm
Fire resistance level CM
DC Resistance Unbalance of a pair 5%
Capacitance Unbalance pair to Ground 330 pF / 100 m
Propagation Delay Skew 1 ~ 500 MHz 45nS/100m MAX.
Nomal velocity propagation 67%
Certified by the laboratory 3P, UL, ETL VERIFIED
Complies with TIA/EIA 568-С.2-1 cat. 6А; ISO/IEC 11801; EN 50173
Meters in a box 305 м
Frequency range 1-500 Mhz
Color coding Pair 1 "blue/white-blue";
Pair 2 "orange/white-orange";
Pair 3 "green/white-green";
Pair 4 "brown/white-brown".
 Cable transfer characteristics:
Frequency(MHz) IL MAX.(dB/100m) NEXT MIN.(dB) ACR MIN.(dB) PS.NEXT MIN.(dB) PS.ACR MIN.(dB) ACRF MIN.(dB)/100m) PS. ACRF MIN.(dB/100m) R.L. MIN.(dB)
1 2.1 75.3 73.2 73.3 71.2 68.0 65.0 20.0
4 3.8 66.3 62.5 64.3 60.5 56.0 53.0 23.0
8 5.3 60.8 55.5 59.8 54.5 49.9 46.9 24.5
10 5.9 60.3 54.4 58.3 52.4 48.0 45.0 25.0
16 7.5 57.2 49.7 55.2 47.7 43.9 40.9 25.0
20 8.4 55.8 47.4 53.8 45.4 42.0 39.0 25.0
25 9.4 54.3 44.9 52.3 42.9 40.0 37.0 24.3
31.25 10.5 52.9 42.4 50.9 40.4 38.1 35.1 23.6
62.5 15.0 48.4 33.4 46.4 31.4 32.1 29.1 21.5
100 19.1 45.3 26.2 43.3 24.2 28.0 25.0 20.1
155 24.1 42.4 18.3 40.4 16.3 24.2 21.2 18.8
200 27.6 40.8 13.2 38.8 11.2 22.0 19.0 18.0
250 31.1 39.3 8.2 37.3 6.2 20.0 17.0 17.3
300 34.3 38.1 3.8 36.3 2.0 18.5 15.5 16.8
400 40.1 36.3 NA 34.3 NA 16.0 13.0 15.9
500 45.3 34.8 NA 32.8 NA 14.0 11.0 15.5
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (2)

Code Name
LAN-6AFTP-LSZH-OR LANMASTER FTP cable, 4 pairs, cat. 6A, with separator, 500Mhz, LSZH, orange, 305 m Add to list
LAN-6AFTP-LSZH-BL LANMASTER FTP cable, 4 pairs, cat. 6A, with separator, 500Mhz, LSZH, blue, 305 m Add to list
