LANMASTER UTP cable, 4 pairs, cat. 5E, for outdoor

LANMASTER UTP cable, 4 pairs, cat. 5E, for outdoor

Product Code: LAN-5EUTP-OUT

LANMASTER UTP cable, 4 pairs, cat. 5E, for outdoor
Model range

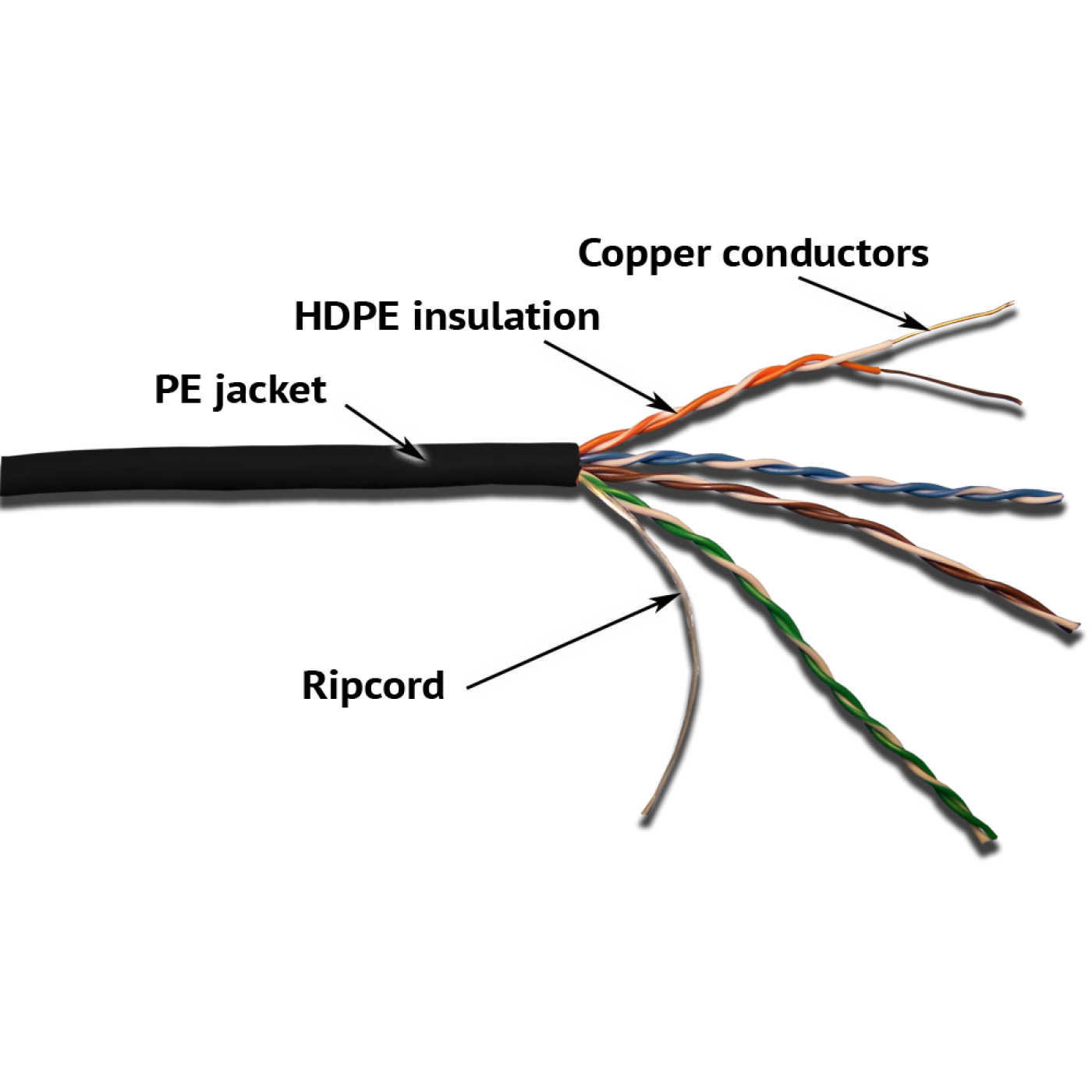

The cable consists of 4 pairs of solid copper conductors.
The diameter of the conductor is 24AWG.
Each conductor is protected with HDPE (high density polyethylene) insulation.

Two conductors stranded with a specially selected step make up one twisted pair.
4 twisted pairs are enclosed in a common PE (polyethylene) jacket.

The cable meets the requirements of standards:

  • 3P & ETL Verified to TIA/EIA568-B.2 CAT 5e
  • UL444
  • EN50173
  • ISO/IEC 11801

Characteristic of the cable:

Characteristic Value
Type of conductor Solid
Conductor Diameter 24 AWG
Insulation Type HDPE (High Density Polyethylene)
Outer jacket PE (polyethylene)
Jacket Color Black
Cable diameter  4,9 mm
Impedance  100±15 Ohm
Mutual Capacitance  56 pF/m (max)
DC Resistance  93.8 Ohm/1km
DC Resistance Unbalance of a pair  5%
Capacitance Unbalance pair to Ground  330 pF/100m
Propagation Delay Skew  45 ns/100m
Nomal velocity propagation 71%
Color coding Pair 1 "blue / white-blue";
Pair 2 "orange/white-orange";
Pair 3 "green/white-green";
Pair 4 "brown/white-brown".
Fire resistance level CMX
Operating temperature range  from -60oС to +60oС
Meters in a box  1000ft (305 m)


Cable transfer characteristics:

Frequency
(MHz)
Attenuation
max
(dB/100m)
 NEXT
min
(dB)		 ACR
min
(dB)		 PS.NEXT
min
(dB)		 PS.ACR
min
(dB)		 ELFEXT
min
(dB/100м)		 PS.ELFEXT
min
(dB/100m)		 Return Loss
min
(dB)
1 2.0 65.3 63.3 62.3 60.3 63.8 60.8 20.0
4 4.1 56.3 52.2 53.3 49.2 51.7 48.7 23.0
8 5.8 51.8 46.0 48.8 43.0 45.7 42.7 24.5
10 6.5 50.3 43.8 47.3 40.8 43.8 40.8 25
16 8.2 47.3 39.1 44.3 36.1 39.7 36.7 25.0
20 9.3 45.8 36.5 42.8 33.5 37.8 34.8 25.0
25 10.4 44.3 33.9 41.3 30.9 35.8 32.8 24.3
31.25 11.7 42.9 31.2 39.9 28.2 33.9 30.9 23.6
62.5 17.0 38.4 21.4 35.4 18.4 27.8 24.8 21.5
100 22.0

35.3

 13.3 32.3 10.3 23.8 20.8 20.1
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
LAN-5EUTP-OUT LANMASTER UTP cable, 4 pairs, cat. 5E, for outdoor Add to list
