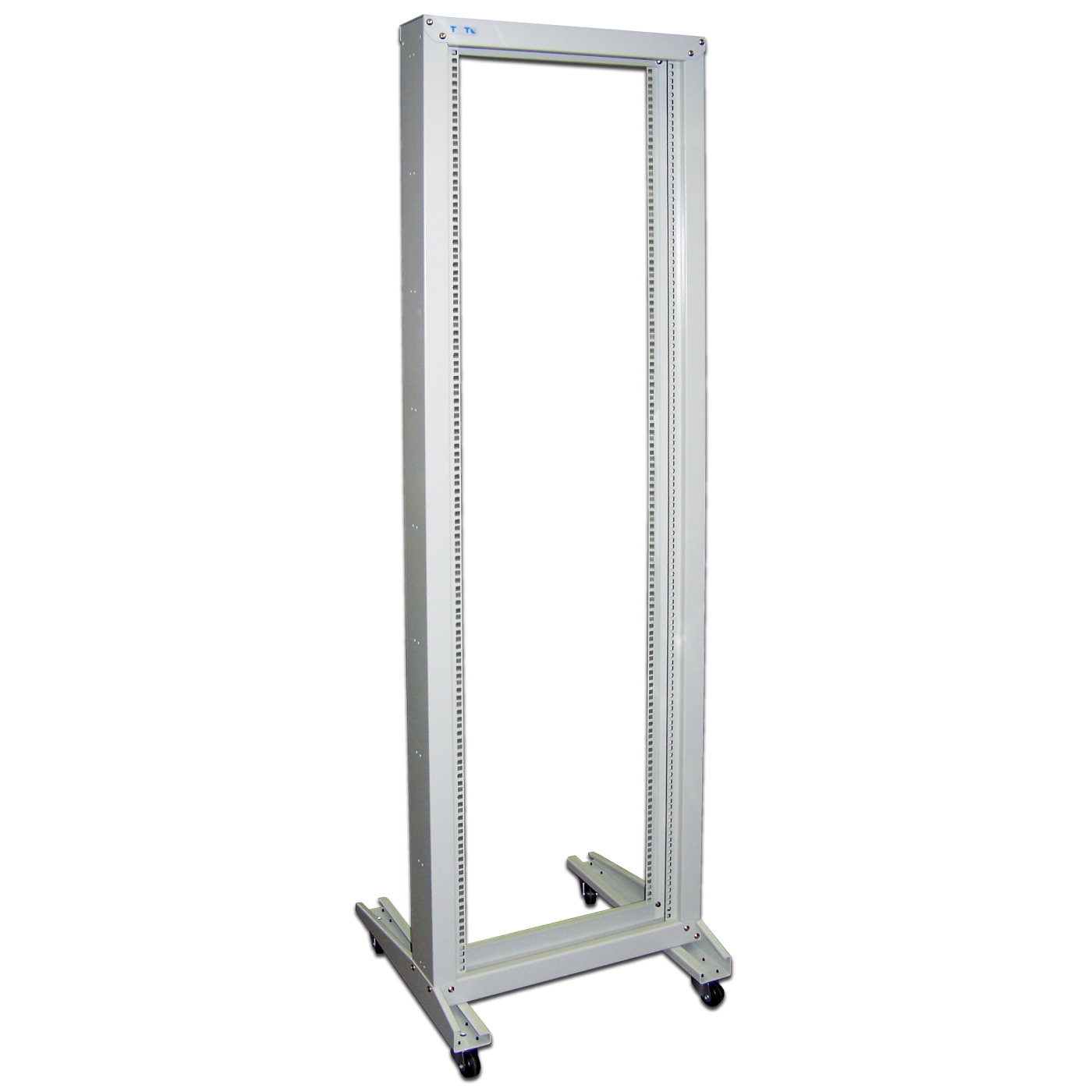

19" Two post rack

19" Two post rack

Product Code: TWT-RACK1-xxU

19" Two post rack
Model range

Two post floor telecommunication rack used for mounting network and telecommunication 19" equipment and two post mount (cantilevered) shelves.

The package includes a set of castors. If necessary, the rack can be mounted on legs or attached to the floor with anchors.

On the side surface of the posts, both outside and inside the frame, you can install vertical cable management plastic rings (TWT-CB-RGH-2U).

The rack is supplied unassembled. Packaged in one pack.

Height options: 29U, 33U, 38U, 42U and 47U.

Maximum rack load is 150 kg.

Powder coating painting.

Color is gray (RAL 7035).

The rack complies with international standards ANSI/EIA RS-310-D, IEC 297-2, DIN 41494-1, DIN 41494-7.


Product code
 Description
 Height, RMU
 Dimensions,mm (DхWхH)
 Package weight, kg
 Max. load, kg
TWT-RACK1-29U Two post rack,  29U 29 600 x 600 x 1390 17,5 150
TWT-RACK1-33U Two post rack,  33U 33 600 x 600 x 1590 18,5 150
TWT-RACK1-38U Two post rack,  38U 38 600 x 600 x 1790 19,5 150
TWT-RACK1-42U Two post rack,  42U 42 600 x 600 x 2007 25,2 150
TWT-RACK1-47U Two post rack,  47U 47 600 x 600 x 2230 26,24 150

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
