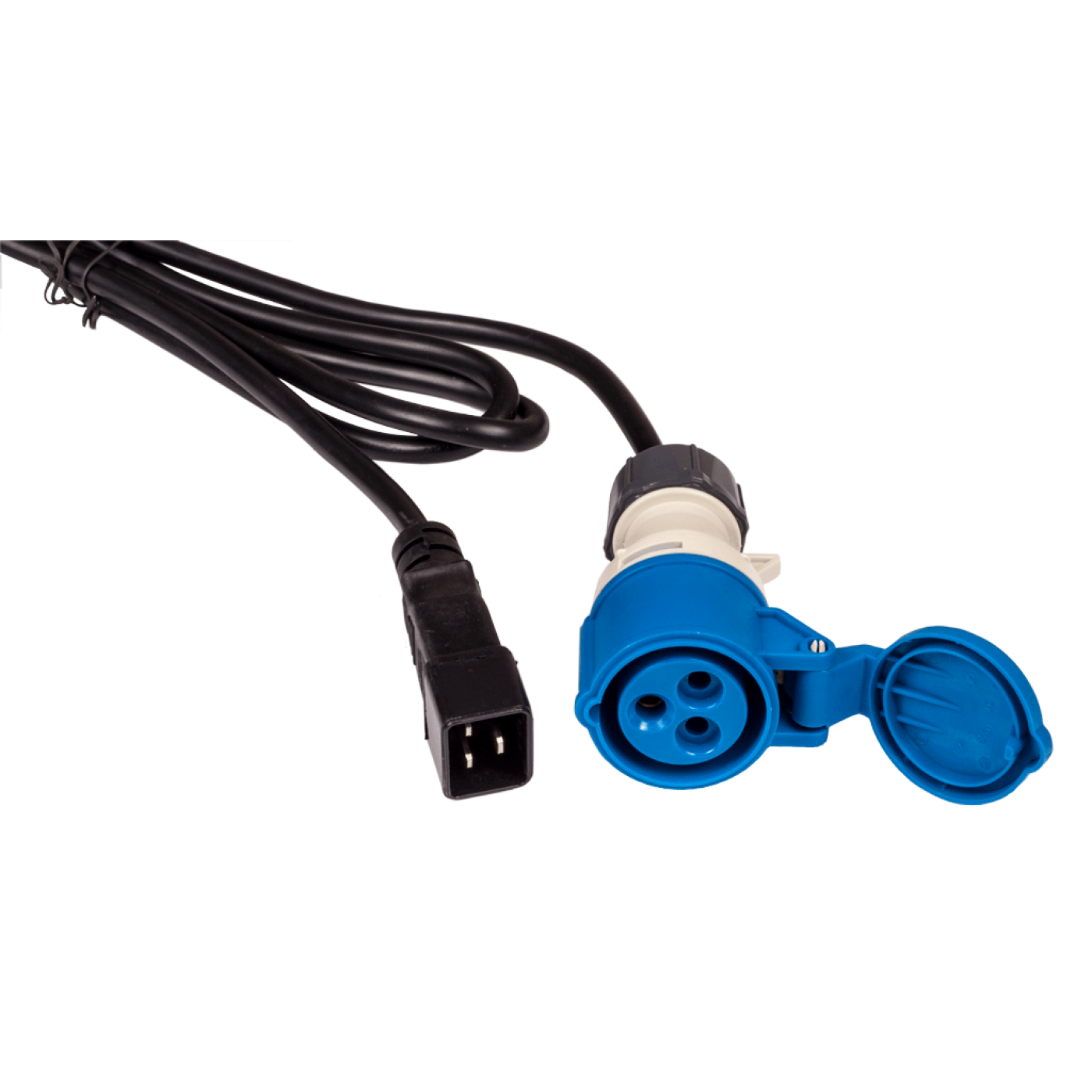

Power cord C20-I309, female, 3х2.5, 220V, 16А, 2.5 meter

Power cord C20-I309, female, 3х2.5, 220V, 16А, 2.5 meter

Product Code: LAN-PP9F/20-2.5-BK

Power cord C20-I309, female, 3х2.5, 220V, 16А, 2.5 meter
Model range

The power cord is intended to connect electrical equipment with IEC309 industrial connectors to single-phase C19 connectors. The cord is made of PVA insulated stranded wire with a cross section of 3x2.5 mm2.

The maximum allowable voltage is 250V.

The maximum load current is 16A.

Cable type 3х2.5 PVC
Jacket material PVC (polyvinyl chloride)
Jacket color Black
Cord length 2.5 m
Wire cross-section 2,5 mm2
Wire type Stranded
Maximum current 16 А
Maximum voltage ~250 V
Connector А IEC 60320 С20
Connector В IEC309 Female
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
LAN-PP9F/20-2.5-BK Power cord C20-I309, female, 3х2.5, 220V, 16А, 2.5 meter Add to list
