Used as a distribution cable for suspension on the utility poles, electricity pylons and between buildings.
Design:

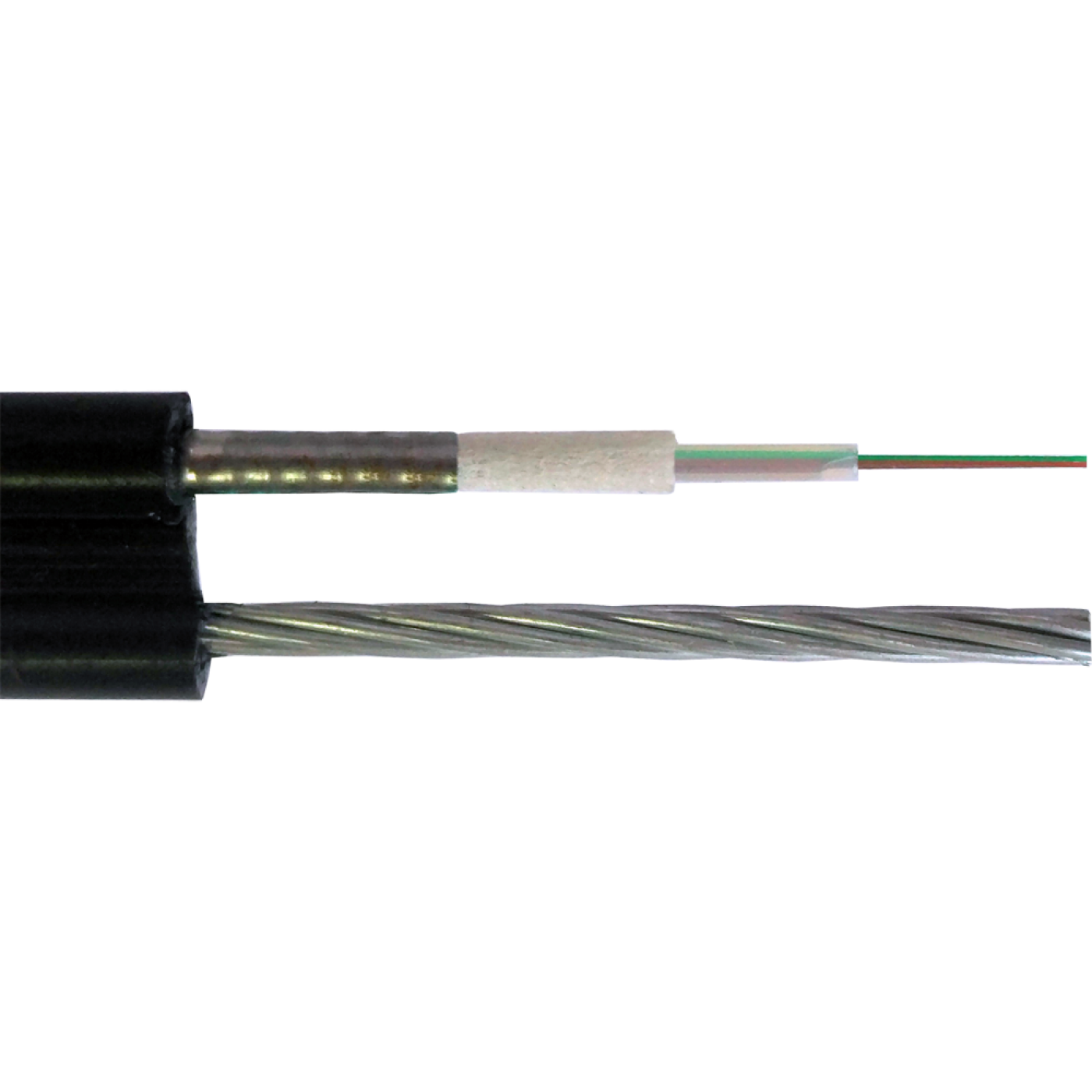

The cable contains a central optical module with loosely laid fibers. The free space in the optical module is filled with a hydrophobic filler. Fiber optics module is covered with water blocking tape and steel tape. Steel rope is used as the messenger. The fiber optics module and the messenger member are covered with a jacket from middle density polyethylene.
The maximum possible count of optical fibers in the cable is 24.
Color identification of tight buffer optical fibers
№
Fibers 1-12
№
Fibers 13-24
1
Blue
13
Blue + mark
2
Orange
14
Orange + mark
3
Green
15
Green + mark
4
Brown
16
Brown + mark
5
Grey
17
Grey + mark
6
White
18
White + mark
7
Red
19
Red + mark
8
Black
20
Black + mark
9
Yellow
21
Yellow + mark
10
Violet
22
Violet + mark
11
Pink
23
Pink + mark
12
Aqua
24
Aqua + mark
Weight and Dimensions
Fiber count
2~8
10~12
14~24
Messenger
Material
Steel rope
Diameter (±0.05）mm
2.7 mm (0.9х7)
Fiber Optics Module
Material
Polybutylene terephthalate / PBT
Diameter (±0.06) mm
1.8
2.0
2.8
Thickness（±0.03) mm
0.30
0.32
0.4
Maximum fiber count per module
2~8
10~12
14~24
Armor
Material
Steel tape
Thickness（±0.03) mm
0.25
Jacket
Material
Middle Density Polyethylene MDPE
Thickness（±0.2) mm
1.3-1.5
Cable diameter (±0.5) mm
6.3 х 14.6
6.5 х 14.8
7.1 х 15.4
Cable weight（±10） kg/km
88
96
103
Operating conditions
Minimum Bend Radius
Without pulling tension
10 cable diameters
With maximum pulling tension
20 cable diameters
Temperature range（℃）
Installation
-20~+60
Storage
-40~+70
Operating
-40~+70
Physical specifications
№
Specification
Value
1
Maximum pulling tension
Short term impact
2700 N
Long term impact
800 N
2
Crush resistance
Short term impact
1000 (N/100mm)
Long term impact
300 (N/100m)
Product code
Description
LAN-OFC-GYXTC8Snnyy1
FO cable, armored with steel tape, with messenger, GYXTC8S, PE, outdoor, nn х OS2 Ultra/OS2/OM1/OM2/OM3/OM4
nn – fiber count
yy – fiber type (SU, S2, S5, S7, M1, M2, M3, M4)
k =1 maximum pulling tension: 0.8 kN
Applicable optical fibers:
SU
Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation)
S2
Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation)Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation)
Single-mode with low bending loss (ITU-T G.657 recommendation)
M1
Multi-mode with core to cladding ratio 62,5/125 μm (IEC 60793-2-10 A1b type recommendation)
M2
Multi-mode with core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 type A1a.1 requirements)
M3
Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.2 type requirements)
M4
Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation)
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
Model range (2)
Code
Name
LAN-OFC-GYXTC8S04S21
FO Cable, armored with steel tape, self supporting, with a messenger, GYXTC8S, PE, outdoor, 4 х OS2
