Used as a distribution cable for cabling inside buildings, in cable trays, in cable ducts, pipes, and tunnels.
Design:
The maximum count of optical fibers is 24.

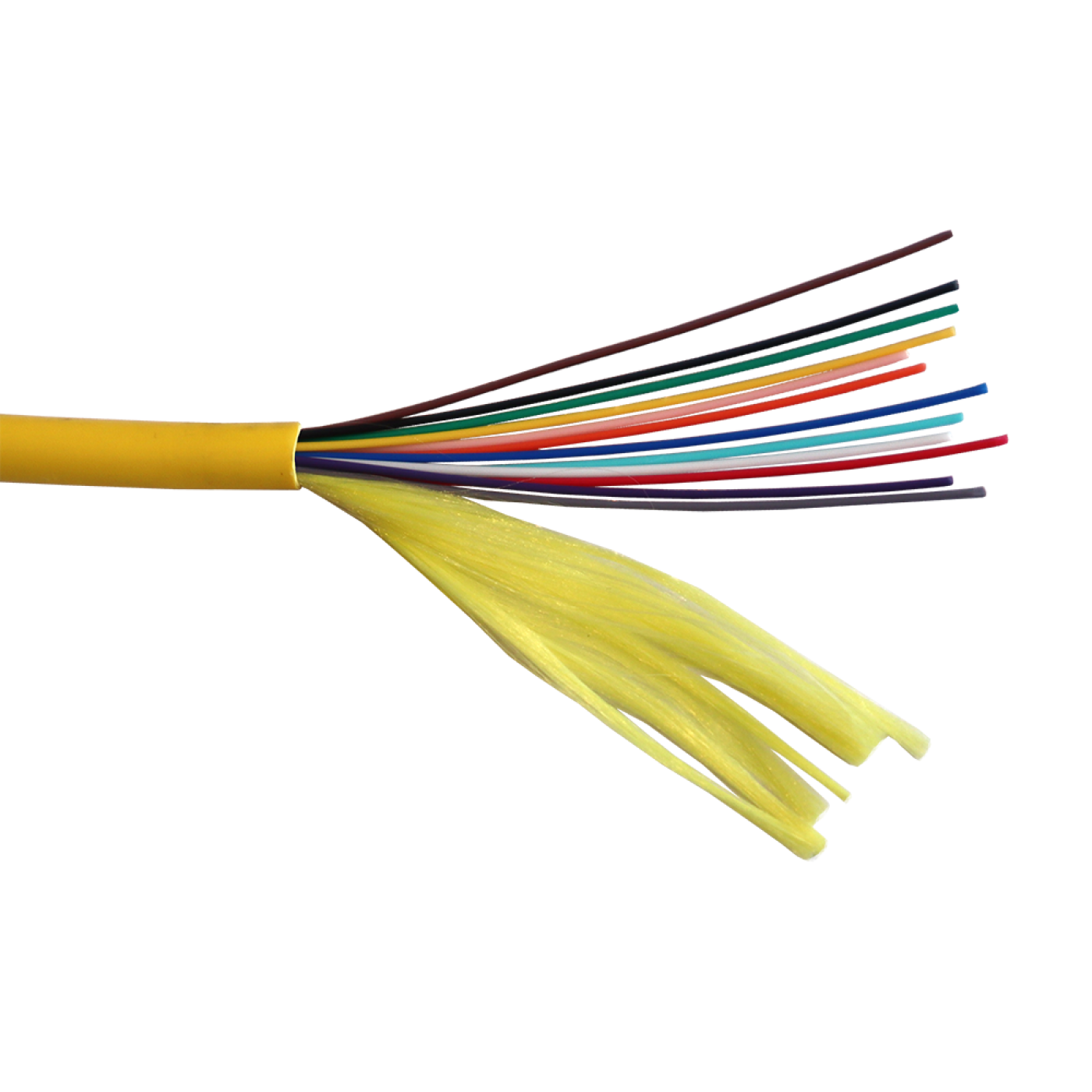

The cable contains a bundle of tight buffer fibers which is covered with a layer of strength aramid yarn. The cable jacket is made of a flame retardant, halogen-free, low-smoke polymer composition.
The cable jacket is manufactured:
- yellow color for single mode fiber
- orange color for OM1, OM2 multimode fiber
- aqua color for OM3 multimode fiber
- pink color for OM4 multimode fiber
Color identification of tight buffer optical fibers:
№
Fibers 1-12
№
Fibers 13-24
1
Blue
13
Blue + 1 метка
2
Orange
14
Orange + 1 метка
3
Green
15
Green + 1 метка
4
Brown
16
Brown + 1 метка
5
Grey
17
Grey + 1 метка
6
White
18
White + 1 метка
7
Red
19
Red + 1 метка
8
Black
20
Black + 1 метка
9
Yellow
21
Yellow + 1 метка
10
Violet
22
Violet + 1 метка
11
Pink
23
Pink + 1 метка
12
Turquoise
24
Turquoise + 1 метка
The cable has two construction options (Opt. 1 - LAN-OFC-DIxx-yy-HF; Opt. 2 - LAN-OFC-DIxx-yy-LS)
Single-mode with low bending loss (ITU-T G.657 recommendation)
M1
Multi-mode with core to cladding ratio 62,5/125 μm (IEC 60793-2-10 A1b type recommendation)
M2
Multi-mode with core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 type A1a.1 requirements)
M3
Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.2 type requirements)
M4
Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.3 type requirements)
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
