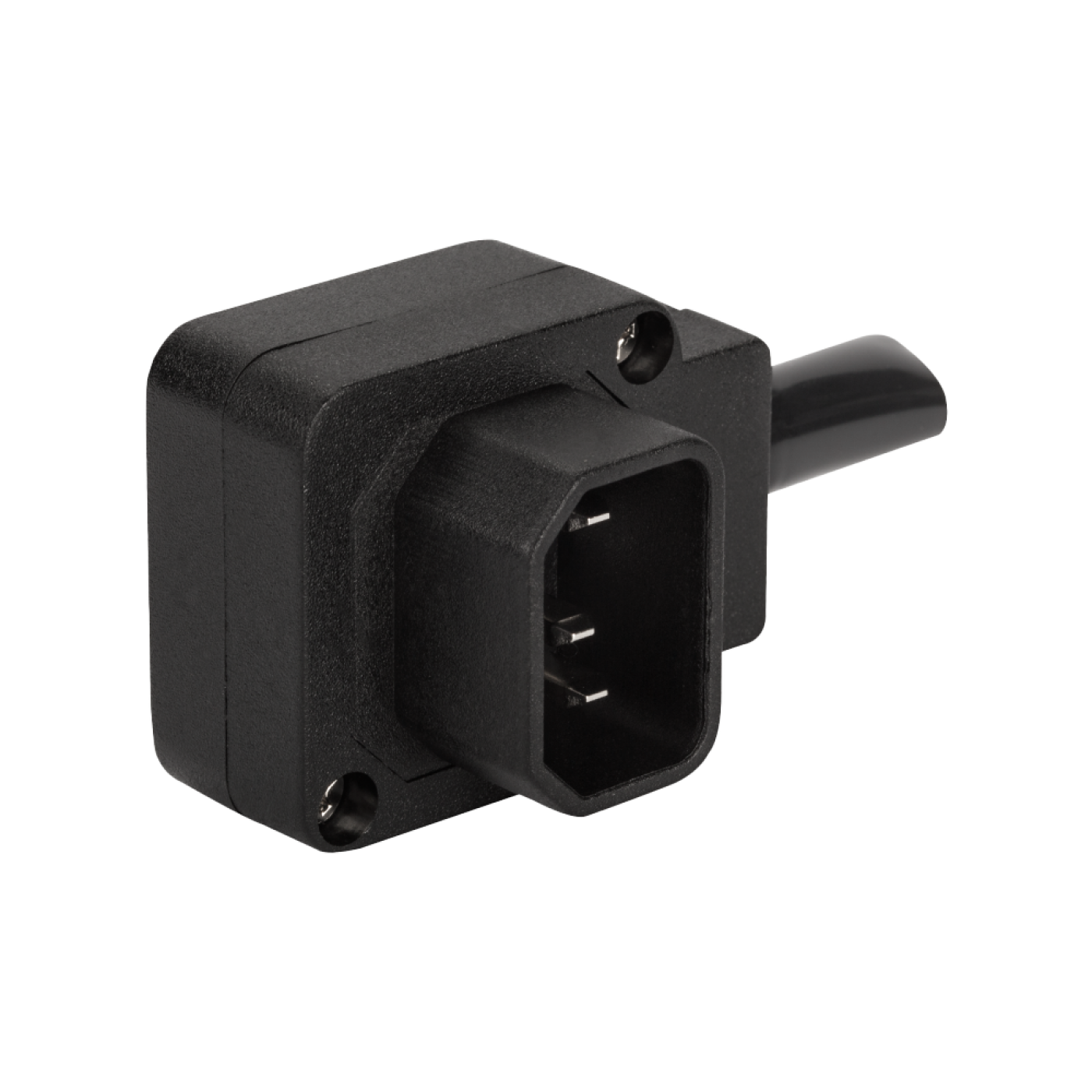

IEC 60320 C14 inlet, 10A, 250V, angled, dismountable, black

IEC 60320 C14 inlet, 10A, 250V, angled, dismountable, black

Product Code: LAN-IEC-320-C14/90

IEC 60320 C14 inlet, 10A, 250V, angled, dismountable, black
Model range

The C14 inlet is intended for installation on electric cables for connection to equipment with a C13 connector.

The inlet has 3 screw terminals: phase, neutral and earth. The connector has a clamping fixation of the cable jacket. The dismountable housing allows multiple mounting/dismounting of the plug on the cable without performance degradation.


Rated voltage: 125/ 230 V AC
Max. allowable voltage: 250 V AC
Rated frequency: 50 Hz
Max. load current: 10 A
Max. working temperature: 75°С
Max. rated voltage: Short term 2000V
Insulator resistance: not less than 1000 MOhm
Cable entry diameter: 8mm
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
LAN-IEC-320-C14/90 IEC 60320 C14 inlet, 10A, 250V, angled, dismountable, black Add to list
