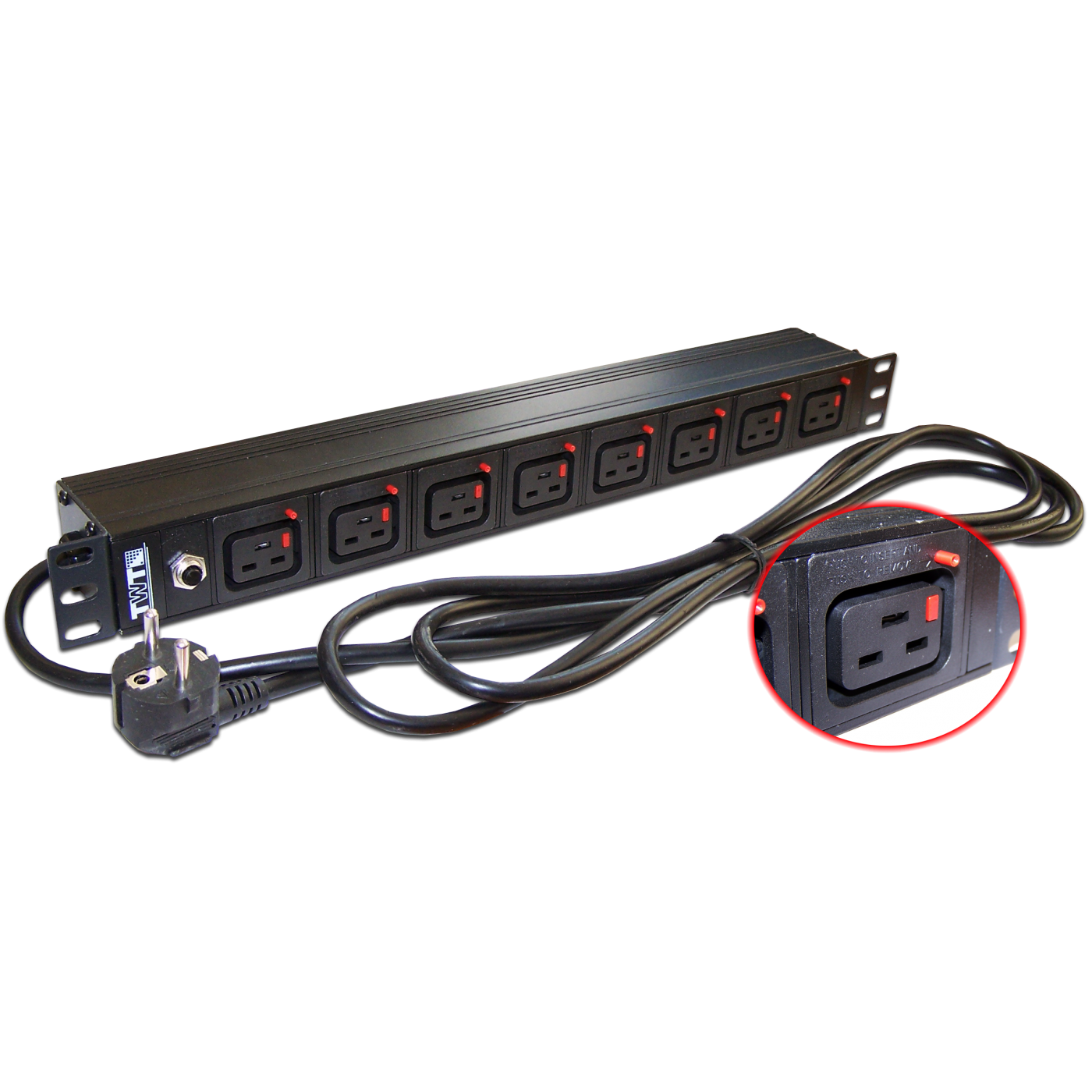

19" power distribution unit, 8 C19 connectors with lock, 16A, 250V, 3.0 m power cord

19" power distribution unit, 8 C19 connectors with lock, 16A, 250V, 3.0 m power cord. Technical characteristics and inquiry information for the LANMASTER catalog.
TWT-PDU-16A8C9L-3.0

The distribution unit with locks for the connected device inlets is designed for the secure connection of equipment with C20 inlets.

The connectors of the unit have mechanical locks that prevent accidental pulling out of the connected power cord. The locking mechanism is unlocked using a button located next to each connector. The unit includes a protective circuit breaker.

Total load current – 16A.

Frequently Asked Questions

What is the TWT-PDU-16A8C9L-3.0 outlet strip used for?

It is a 19" outlet strip for installation in server cabinets and racks, distributing power to equipment with C20 inlets (servers, uninterruptible power supplies (UPS) and other higher-power devices).

How many outlets does the unit have and of what type?

8 outlets of type C19 with a retention latch for the connected device's plug.

How does the outlet locking mechanism work?

Each outlet has a mechanical latch that holds the inserted plug in place to prevent accidental disconnection; a button next to the outlet releases it.

Does the unit have a power switch?

This model has no power switch; it has a residual-current device (RCD) instead.

What power cord does the unit have and how long is it?

The power cord is built in and is 3.0 m long.

What current and voltage is the unit rated for?

Total load current is 16 A, voltage is 250 V.

How does this model differ from the TWT-PDU-10A8C3L-3.0?

The TWT-PDU-16A8C9L-3.0 is rated for a higher current (16 A vs. 10 A) and has locking C19 outlets instead of C13, suiting higher-power equipment; this model has no power switch.

How is the unit mounted in a rack?

The unit mounts horizontally in 19-inch cabinets and racks.
