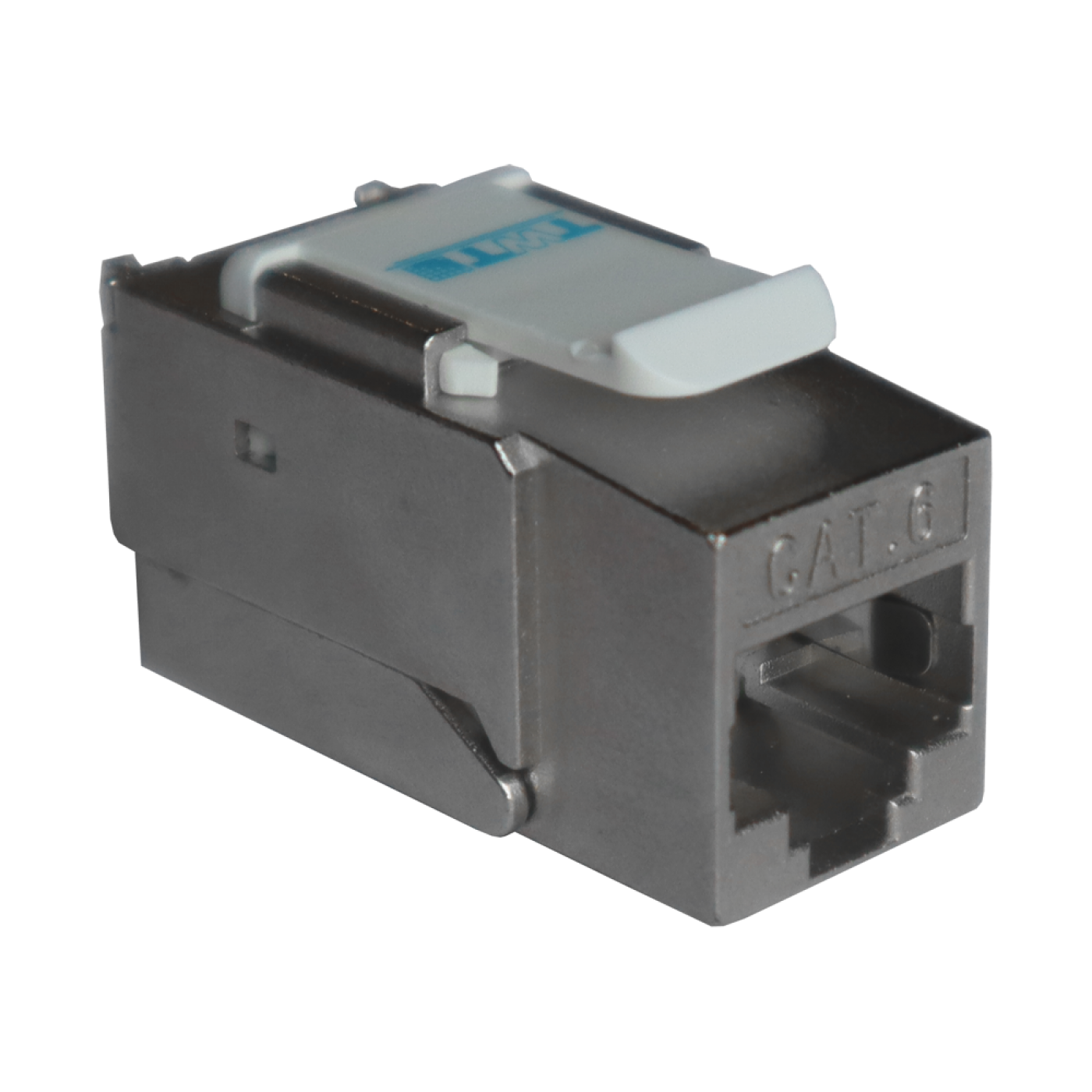

RJ45 Keystone module, category 6, STP, 90 degrees, white
The module can be used to complete shielded telecommunication sockets installed in wall trunks, in a wall box, also for installation in modular patch panels (see the compatibility items). Category 6 compliant. The module has a standard Keystone form-factor and can be used not only in LANMASTER and TWT socket adapters, but also in socket adapters from other manufacturers. There is a shielded eight-pin RJ-45 socket on the front side of the module, and a block for eight contacts of the IDC110 type, located at an angle of 90˚ to the front surface of the module on the side. Screen continuity is ensured by a cable clamp (in the form of a metal clasp). There is the anchor on the module housing provided for fixing the cable jacket by a tie. The insulation displacement contact method is used (IDC) to terminate incoming cable. There is a wiring diagram for the cable conductors between the IDC pins on module cover in accordance with the T568A and T568B wire map for ease of installation.
|
