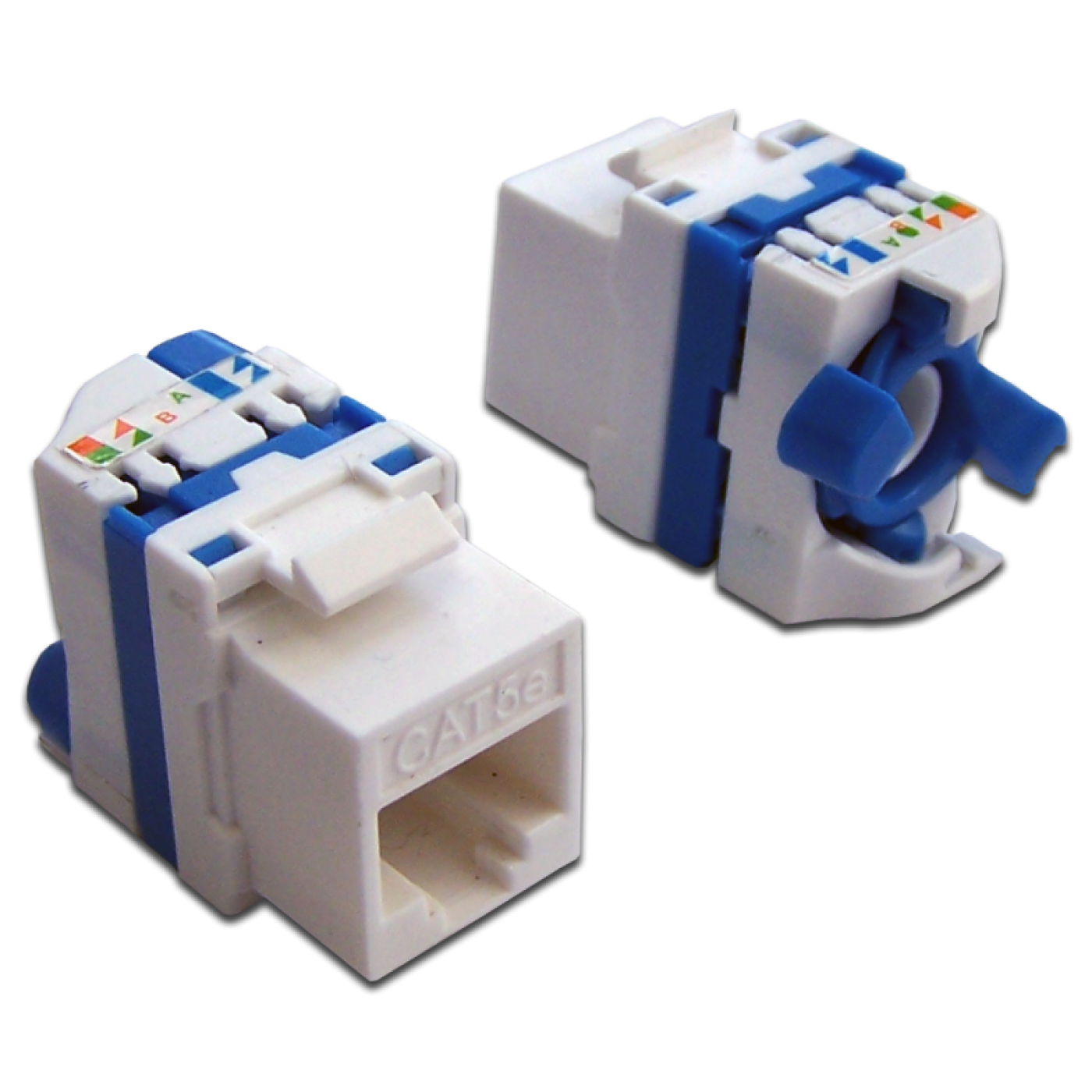

Keystone module for toolless termination, RJ-45, category 5E, UTP, 180 degrees, white

Keystone module for toolless termination, RJ-45, category 5E, UTP, 180 degrees, white

Product Code: LAN-TK45U5E/180-WH

Keystone module for toolless termination, RJ-45, category 5E, UTP, 180 degrees, white
Model range

LAN-TK45U5E/180-WH keystone module is used to complete socket in patch panels and telecommunication sockets installed in a wall box or in wall trunks.

Keystone modules can be used in some modular patch panels and sockets by LANMASTER and other manufacturers. There is a standard eight-pin RJ-45 socket on the front side of the LAN-TK45U5E/180-WH module, and IDC-type termination block on the back side.


The insulation displacement contact method is used (IDC) to terminate incoming cable. The cable wires are laid out in the grooves on the module cover, then, if necessary, cut off. When you snap the cover and turn the mechanism in the latch, the contacts cut through the conductor insulation. Thus, the incoming cable can be easily terminated without the use of tools. The cover is color coded to match the T568A and T568B wire maps.

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
LAN-TK45U5E/180-WH Keystone module for toolless termination, RJ-45, category 5E, UTP, 180 degrees, white Add to list
