LANMASTER, shielded, Category 6, patch panel, 24-port, compact

LANMASTER, shielded, Category 6, patch panel, 24-port, compact for copper structured cabling systems. LANMASTER product information, specifications and part number details.
LAN-PPC24S6

LANMASTER, shielded, Category 6, patch panel, 24-port, compact. Product for LANMASTER copper structured cabling systems. Use in lanmaster patch panels applications according to the project design and product specifications.

Most frequently asked questions and answers

What is the LAN-PPC24S6 patch panel used for?

The shielded 24-port category 6 patch panel, 0.5U high, is intended for terminating cables of various SCS (structured cabling system) subsystems and connecting parts of the network to each other with patch cords. The panel is 0.5U high, so two such panels take 1U in the cabinet, which increases the installation density.

LANMASTER, shielded, Category 6, patch panel, 24-port, compact LAN-PPC24S6

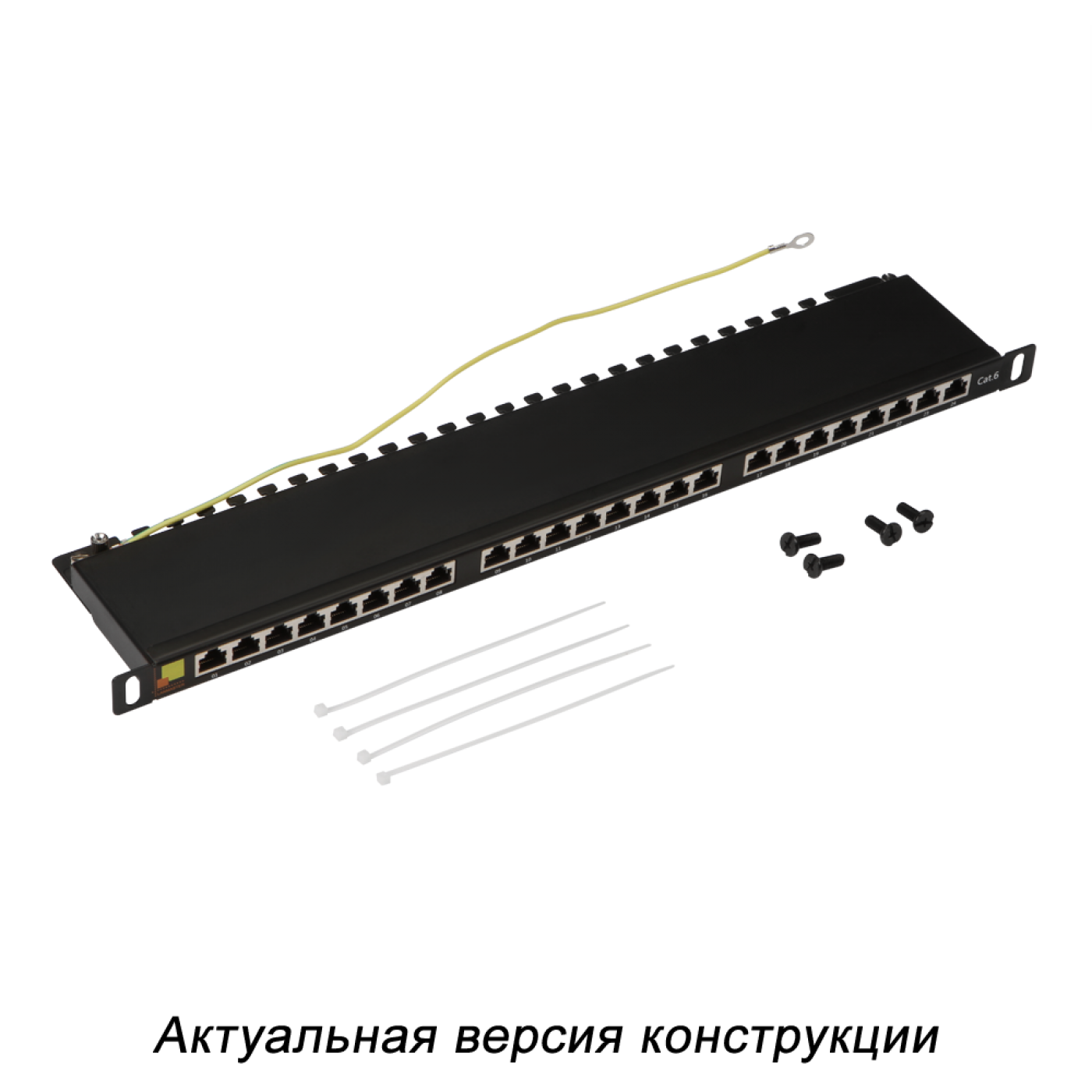

Appearance LAN-PPC24S6
Which speed does the LAN-PPC24S6 patch panel support?

The panel complies with category 6 and is rated for Gigabit Ethernet; 10GBASE-T is possible only over a limited link length. The link category is determined by its weakest component, so the cable, outlets and patch cords must be of the same or a higher category.

How do I install the LAN-PPC24S6 patch panel in a cabinet or rack?

Install the panel in a 19-inch cabinet, rack or wall frame on the mounting rails and fasten it with the supplied screws (use hardware that suits your cabinet). Leave free space in the cabinet for cable and cord routing.

How do I terminate a cable on the LAN-PPC24S6 patch panel?

Bring the cable to the panel from the rear, strip the sheath over the minimum length and arrange the conductors according to the colour and number marking on the IDC (insulation displacement contact) blocks (T568B or T568A; use one scheme along the whole link). Punch the conductors down with a punch-down tool, trim the excess and secure the cables with ties or the cable bracket. Connect the cable screen to the screen contact of the port. Do not terminate the conductors with a screwdriver: it damages the contacts.

How do I ground the LAN-PPC24S6 shielded patch panel?

The metal frame of the shielded patch panel provides grounding: connect the panel to the earthing bar of the cabinet. Connect the cable screens to the port screens and use shielded patch cords; without grounding the shielded link does not protect against interference. Do not create several grounding paths with different potentials.

What is included in the LAN-PPC24S6 package?

The package includes: Patch panel – 1 pcs; cable-screen fixing clamps – 12 pcs; clamp fixing screws – 12 pcs; cable ties – 24 pcs; cabinet mounting kit – 1 pcs.

How do I label the ports of the LAN-PPC24S6 patch panel?

The ports are numbered, and areas or inserts for additional marking are provided next to them. Write the line or outlet number there and update the labelling whenever lines are re-patched: this speeds up port location during troubleshooting.

What should I do if a port of the LAN-PPC24S6 patch panel does not work?

Check that the conductors are terminated by the same scheme (T568B or T568A) at both ends of the link, that there is no open or short circuit and that the patch cord is intact. If necessary, redo the termination of the faulty port and check the link with a tester. If the link is still unstable, check the link length and the category of all components.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-PPC24S6 pcs 530 × 40 × 120 1.2 0.002544

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-PPC24S6 box 550 × 240 × 260 12.5 0.03432

Product Codes (1)

  • LANMASTER, shielded, Category 6, patch panel, 24-port, compact
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
