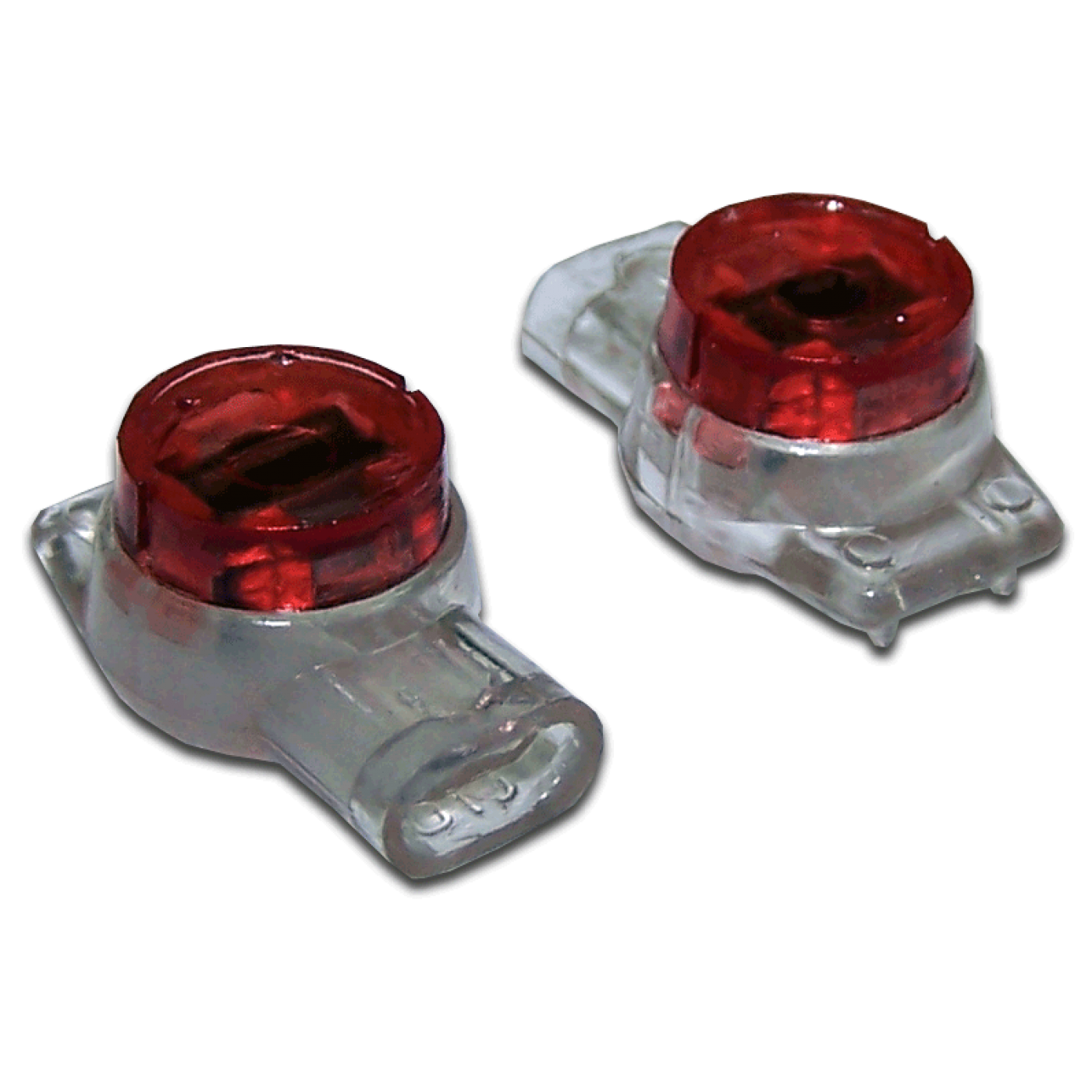

Wire connector for 0.4-0.9 mm conductors, insulated (Scotchlok), pigtail triple connection, gel-filled, 100 pcs.

Wire connector for 0.4-0.9 mm conductors, insulated (Scotchlok), pigtail triple connection, gel-filled, 100 pcs.

Product Code: TWT-SLC-UR

Wire connector for 0.4-0.9 mm conductors, insulated (Scotchlok), pigtail triple connection, gel-filled, 100 pcs.
Model range

Three conductor connector allows you to connect three copper conductors (19-26 AWG) quickly and efficiently.

The universal connector is designed to connect in pigtail way three copper wires with a conductor diameter of 0.4-0.9 mm (19-26 AWG). No insulation stripping is required for connection since connection is made using IDC contacts (Insulation Displacement Connector).

To protect the connection from moisture, the connector body is filled with a hydrophobic gel. The product is a functional analogue of the 3M Scotchlok™ UR.

The crimping is made with the TWT-SLC-TOOL

Characteristic
 Value
Number of wires
 2
Contact type IDC, double
Contact material Phosphated bronze with nickel-silver plating
Connected copper conductor diameter 0,4...0,9 mm
Allowable conductor insulation PVC, PE (max. diameter - 2,08 mm)
Conductor wire gauge 19-26 AWG
Temperature range -30°C...70°C
Amount in a package 100 pcs.
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
