RJ45 Keystone module, category 6, UTP, 90 degrees, white

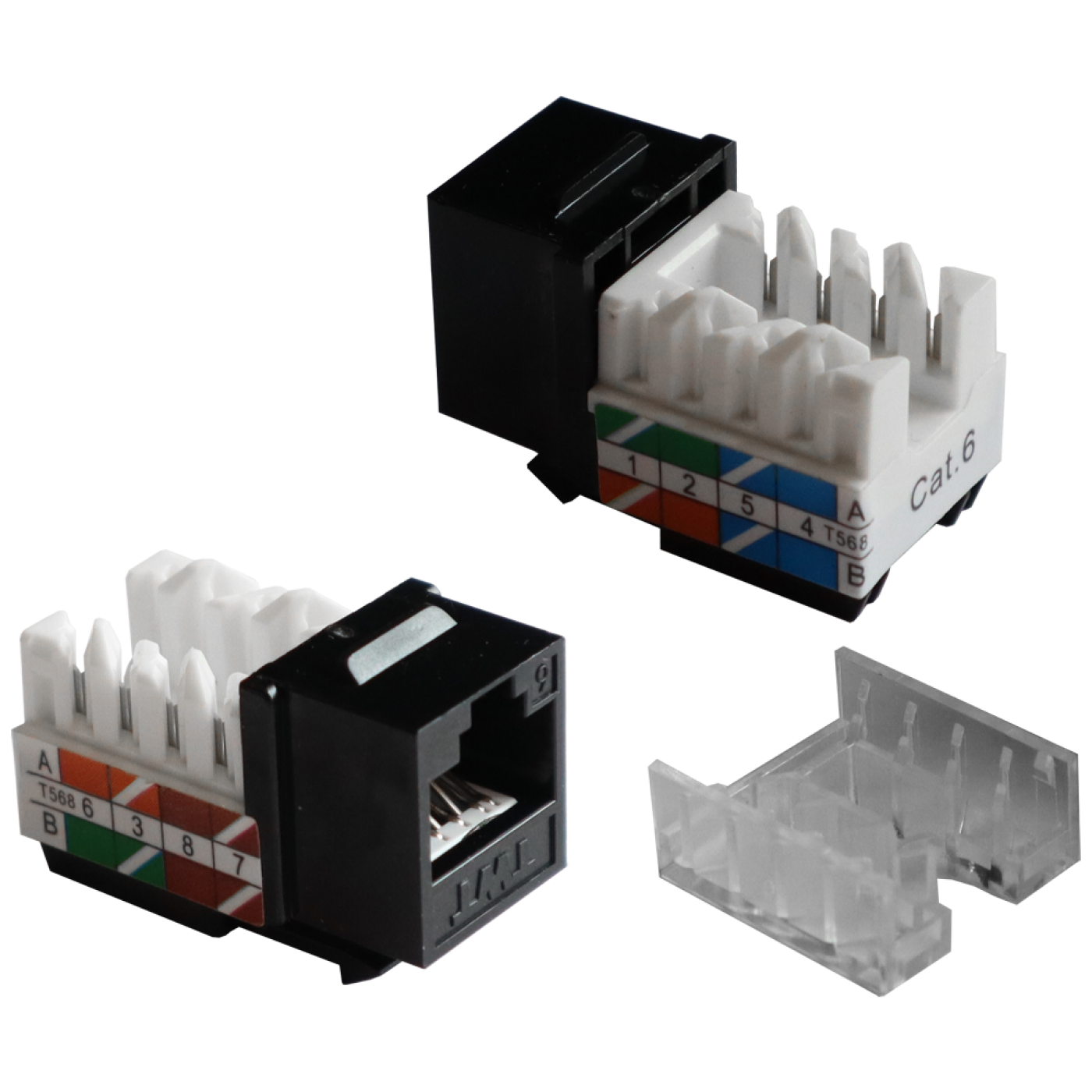

The module can be used to complete unshielded telecommunication sockets installed in a wall trunk, in a wall box, and for installation in modular patch panels (see the compatibility table). Category 6 compliant. The module has a standard Keystone form-factor and can be used not only in LANMASTER socket adapters, but also in socket adapters from other manufacturers. An eight-pin RJ-45 socket is mounted on the front side of the module; there is a block for eight IDC110 contacts on the side located at an angle of 90˚ to the front surface of the module. The insulation displacement contact method is used (IDC) to terminate incoming cable. There is a wiring diagram for the cable conductors between the IDC pins in accordance with the T568A and T568B wire map for ease of installation. The module is equipped with a protective insert that provides additional fixation of cable conductors terminated in IDC block and prevents the conductors from being pulled out when the cable is overstretched.
|
