Wall-mounted distribution box

Wall-mounted distribution box

Product Code: TWT-DB10-xP/K

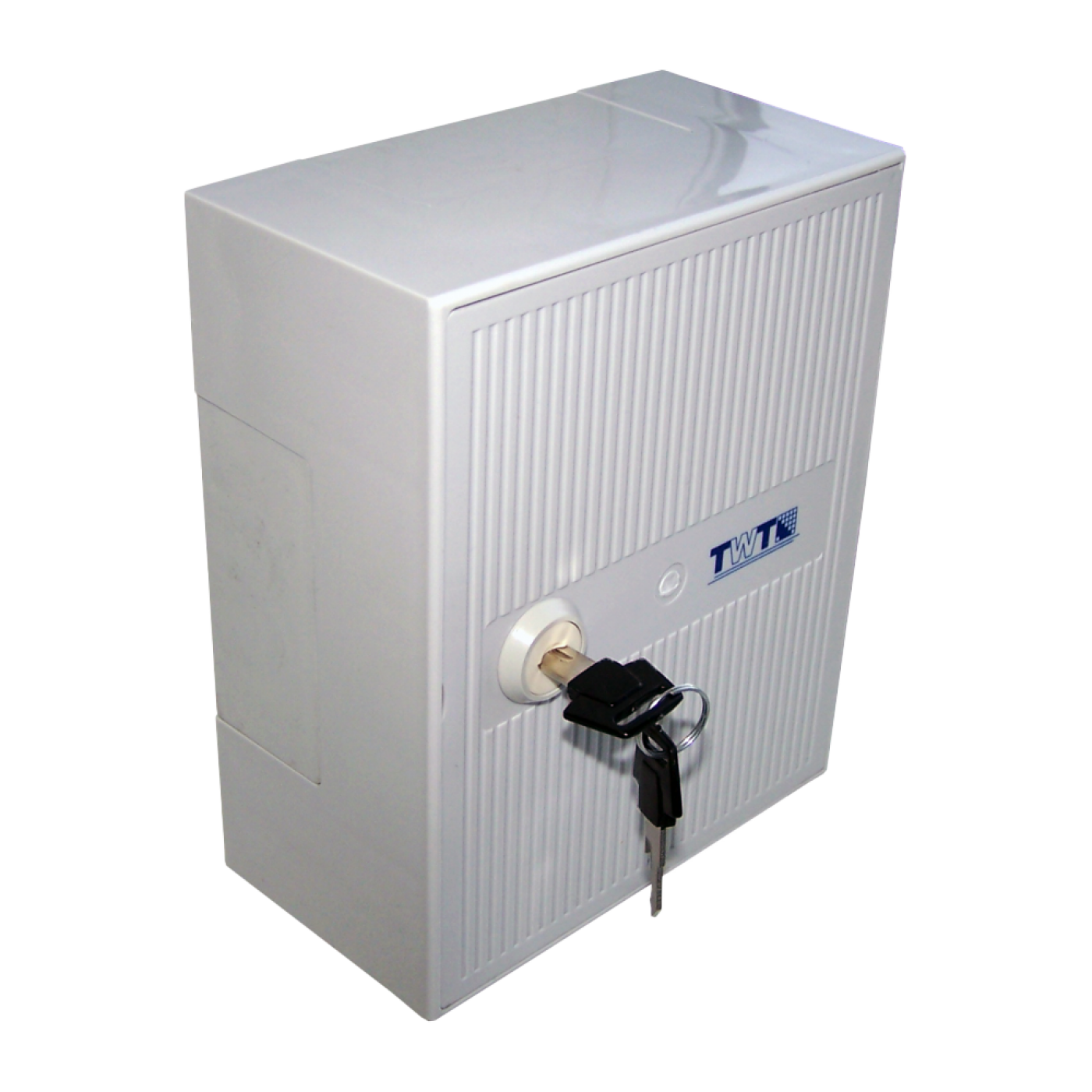

Wall-mounted distribution box
Model range

Wall-mounted distribution boxes are designed for installation of 10-pair LSA-PLUS connection modules.

Boxes are completed with backmount frames for installation of connection modules with a capacity from 30 to 100 pairs.

The door is equipped with a lock with two keys included.

Boxes can be mounted on the wall or in the wall using the frame TWT-DB10-xP/FR.

The depth of the box can be increased using the spacer TWT-DB10-xP/HR for installation of protection magazines or integrated protection plugs with grounding bars.

Cable entry is possible through removable plugs from four sides, as well as from the back of the box.

The base of the box has a screw grounding terminal.

Made of PVC. Color is light grey.

Product code

Description

Depth,

mm

Width,

mm

Height,

mm

TWT-DB10-3P/K

Distribution box for 3 connection modules, 30 pairs

75

140

170

TWT-DB10-5P/K

Distribution box for 5 connection modules, 50 pairs

75

215

215

TWT-DB10-10P/K

Distribution box for 10 connection modules, 100 pairs

75

215

320
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (3)

Code Name
TWT-DB10-3P/K Wall-mounted distribution box for 3 connection modules, 30 pairs, with lock Add to list
TWT-DB10-5P/K Wall-mounted distribution box for 5 connection modules, 50 pairs, with lock Add to list
TWT-DB10-10P/K Wall-mounted distribution box for 10 connection modules, 100 pairs, with lock Add to list
