Single pair cross-connect wire

Single pair cross-connect wire

Product Code: TWT-CRS1PAIR-xx

Single pair cross-connect wire
Model range

Single pair cross-connect wire is mainly used as jumper for cross-connect blocks.

Cross-connect wire jumpers occupy less space then patch-cords and make wiring simpler and cheaper.

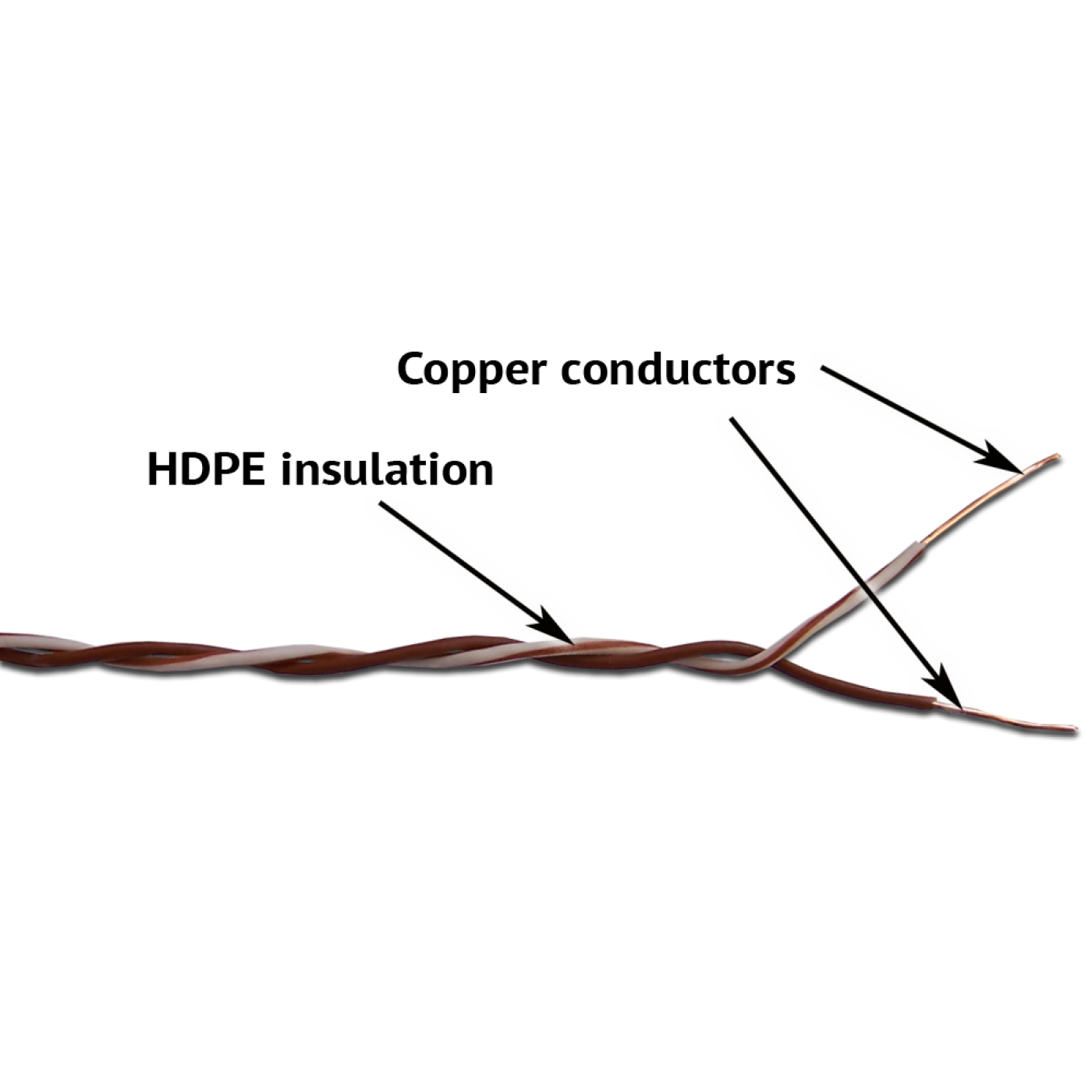

The cable comprises two solid copper 24 AWG conductors. Each conductor is insulated with HDPE (high density polyethylene). Those two conductors are twisted with specially selected step in a single twisted pair.

Specification Value
Color Brown/brown-white
Insulation Material HDPE (high density polyethylene)
Conductor Gauge, single 24 AWG
Conductor Type Solid
Operating Temperature -20 ºC to +75 ºC
Cable Length per Reel 500 m
Frequency Band 1-100 MHz
Characteristic impedance 100 Ohm
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (4)

Code Name
TWT-CRS1PAIR-BL Single pair cross-connect wire, 24 AWG, 500 m, white-blue Add to list
TWT-CRS1PAIR-BR Single pair cross-connect wire, 24 AWG, 500 m, white-brown Add to list
TWT-CRS1PAIR-GN Single pair cross-connect wire, 24 AWG, 500 m, white-green Add to list
TWT-CRS1PAIR-OR Single pair cross-connect wire, 24 AWG, 500 m, white-orange Add to list
