TWT UTP cable, 4 pairs, category 6, LSZH

TWT UTP cable, 4 pairs, category 6, LSZH

Product Code: TWT-6UTP-LSZH

TWT UTP cable, 4 pairs, category 6, LSZH
Model range

Unshielded four pairs category 6 cable is designed for digital and analog signals transmission on frequencies below 250 MHz

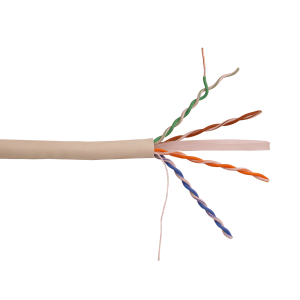

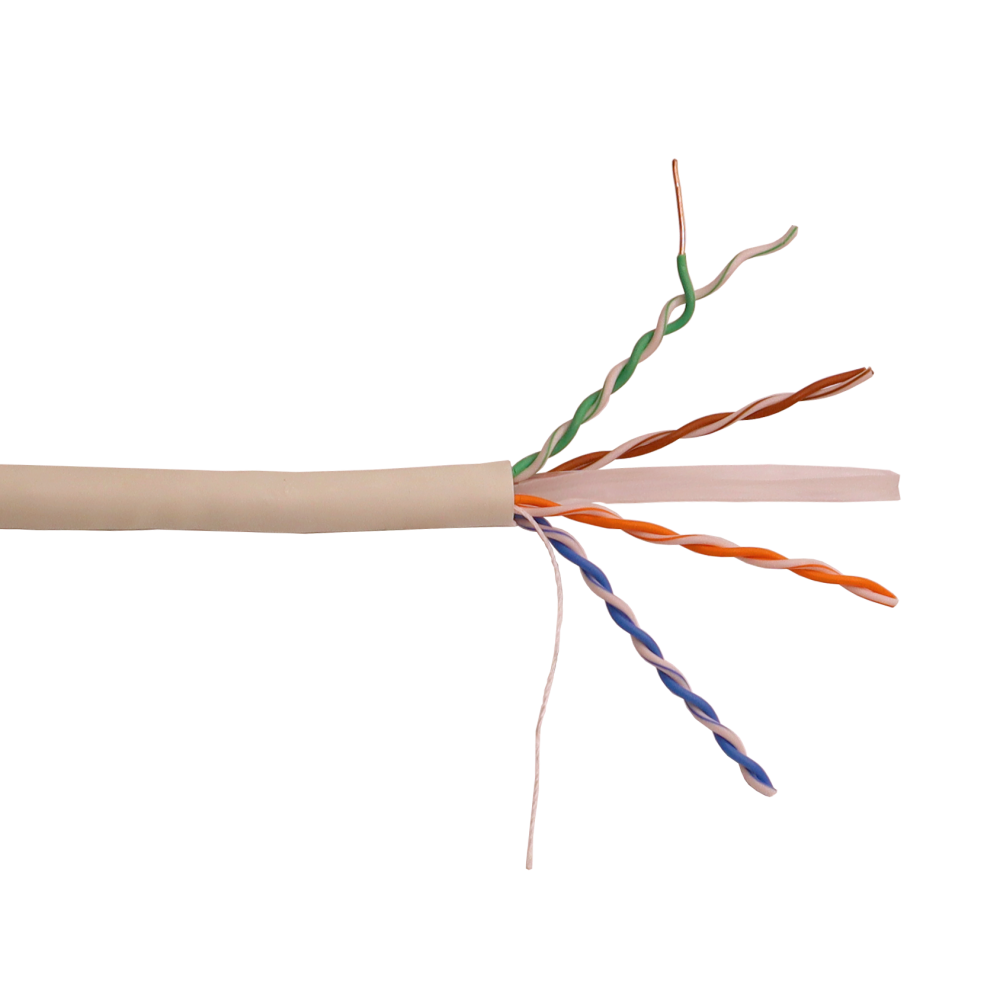

The cable comprises four twisted pairs of solid copper conductors are parted with a separator under a single jacket.

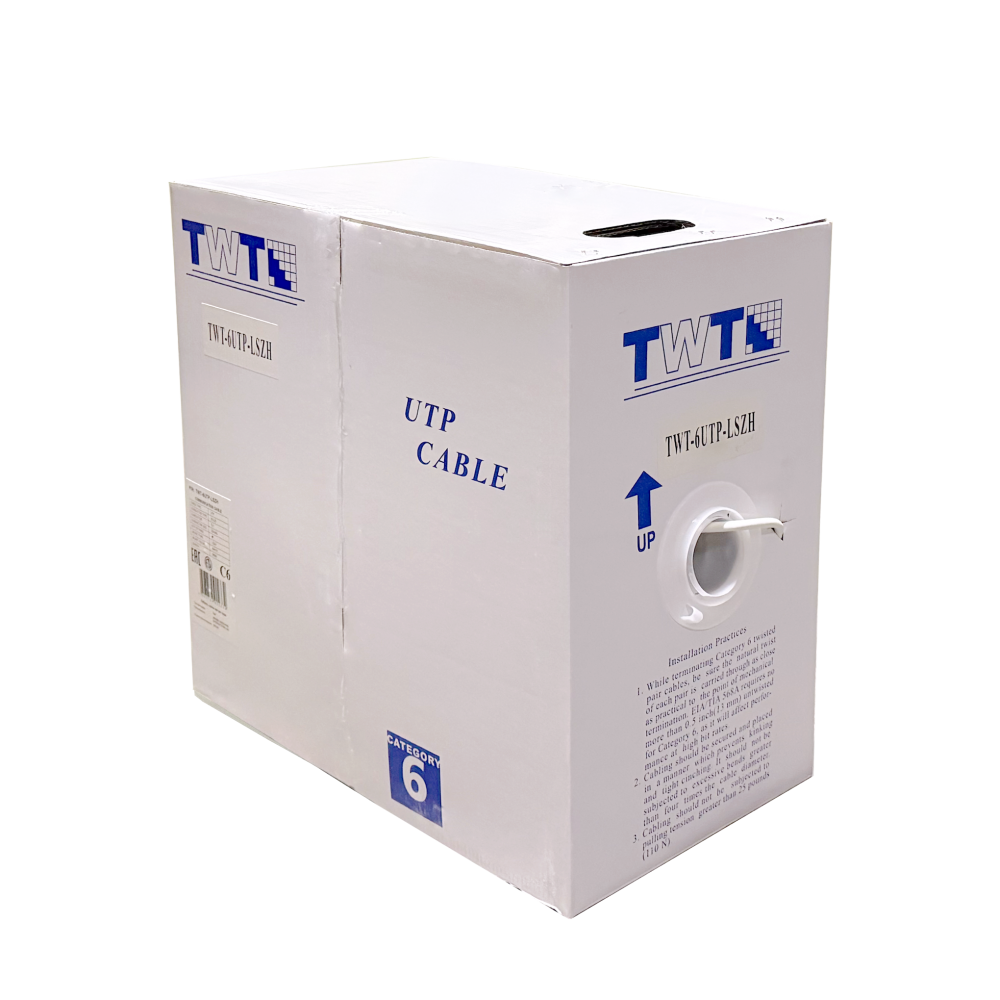

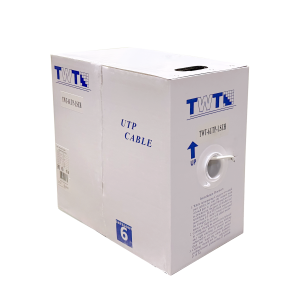

Box dimensions (DхWхH) – 395 х 239 х 395 mm.

Specification Value
Jacket Color
Jacket Material LSZH (low some, zero halogen)
Insulation Material HDPE (high density polyethylene)
Conductor Gauge, single 23 AWG
Conductor Type Solid
Cable Diameter 6,4 mm
Operating Temperature -20 ºC to 75 ºC
Cable Length per Box 305 m
Nominal velocity propagation (NVP) 69%
Regulatory Certifications

UL, ETL and 3P Verified
to ANSI/TIA/EIA568-D.2-1 Category 6
Regulatory Compliance

TIA/EIA568-D.2-1 Category 6,

ISO/IEC 11801-1:2017,

EN 50288-6-1:2013
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-6UTP-LSZH TWT UTP cable, 4 pairs, category 6, LSZH Add to list
