TWT UTP cable, 4 pairs, category 6, PVC, grey, 305 m

TWT UTP cable, 4 pairs, category 6, PVC, grey, 305 m

Product Code: TWT-6UTP-GY

TWT UTP cable, 4 pairs, category 6, PVC, grey, 305 m
Model range

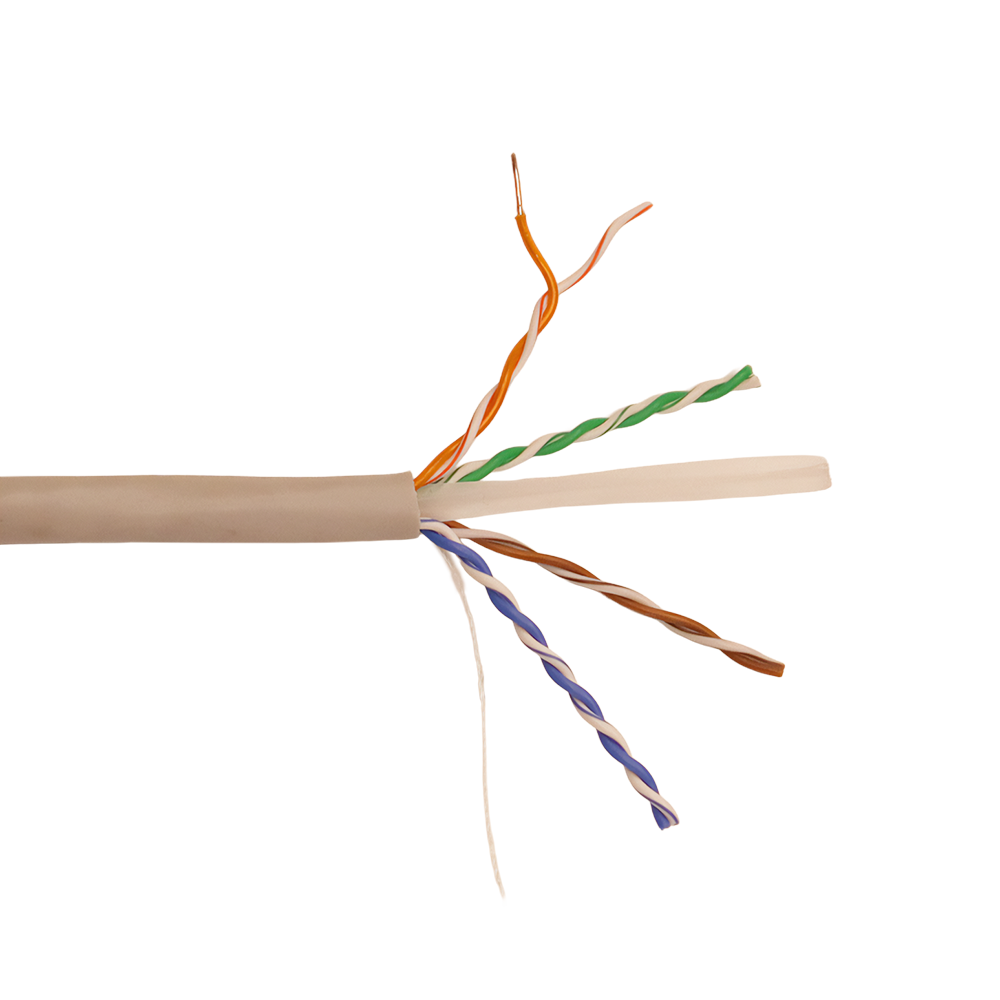

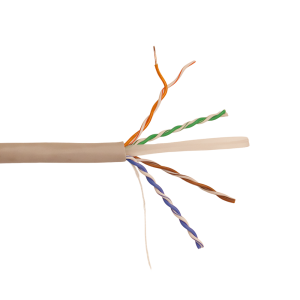

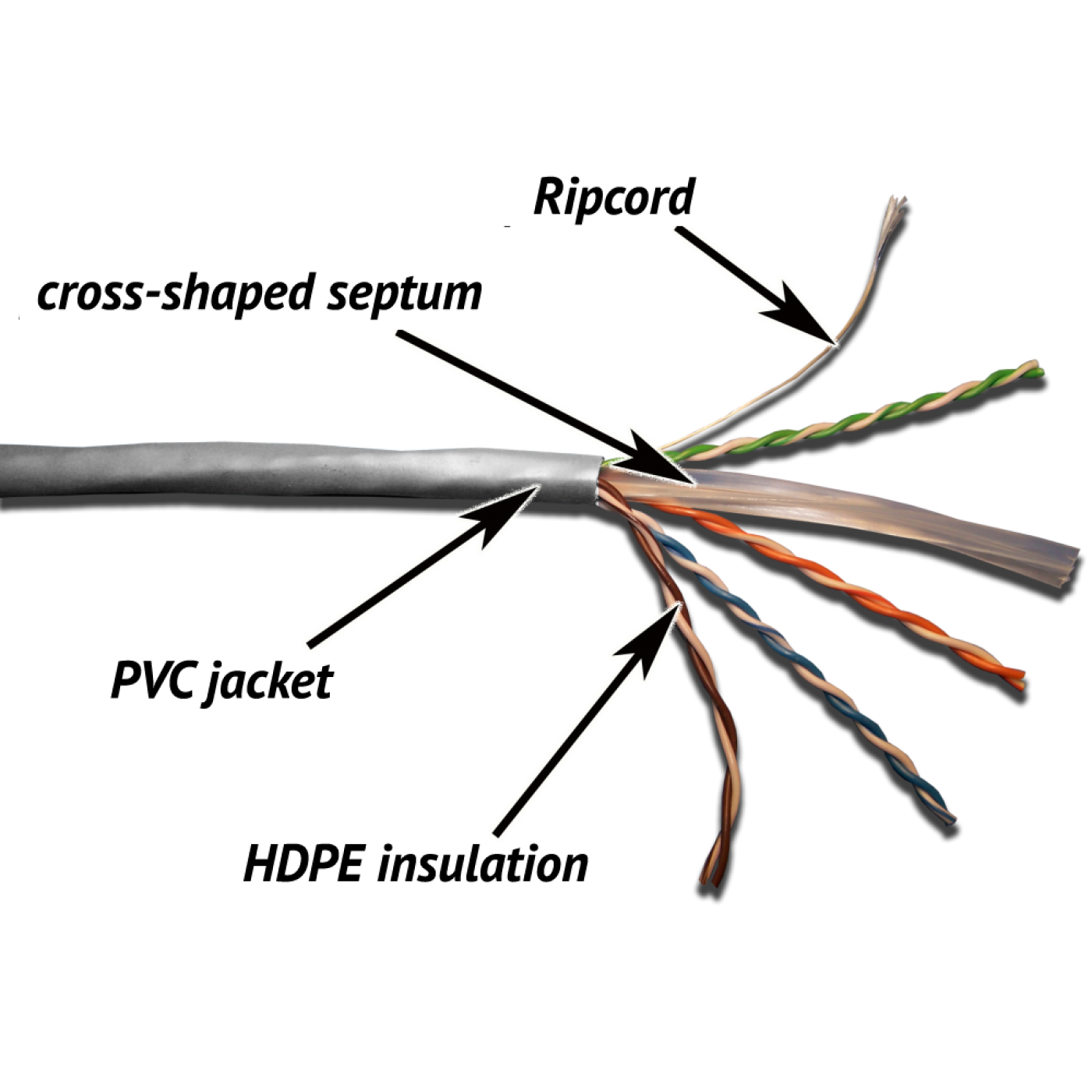

The cable comprises 4 pairs of stranded copper conductors.

Conductor gauge is 23AWG.

Each conductor is covered with HDPE (high density polyethylene) insulation.

Two conductors are twisted with specially selected step in a single twisted pair.

Pairs in the cable are parted with a separator which increase cross attenuation between the pairs.

Four pairs and the separator are coated with single PVC jacket.

There is a ripcord under the jacket to ease termination process.


Specification Value
Jacket Color Grey
Jacket Material PVC
Conductor Gauge, single 23 AWG
Conductor Type Solid
Cable Diameter 6.4 mm
Operating Temperature -20 ºC to 75 ºC
Cable Length per Box 305 m
Nominal velocity propagation (NVP) 69%
Regulatory Certifications

UL, ETL and 3P Verified
to ANSI/TIA/EIA568-D.2-1 Category 6
Regulatory Compliance

TIA/EIA568-D.2-1 Category 6,

ISO/IEC 11801-1:2017,

EN 50288-6-1:2013
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
