TWT FTP cable, 4 pairs, category 6, PVC, gray, 305 meters

TWT FTP cable, 4 pairs, category 6, PVC, gray, 305 meters

Product Code: TWT-6FTP-GY

TWT FTP cable, 4 pairs, category 6, PVC, gray, 305 meters
Model range

The cable comprises 4 pairs of stranded copper conductors.

Each conductor is covered with HDPE (high density polyethylene) insulation.

The cable fully complies with category 6 demands.

Two conductors are twisted with specially selected step in a single twisted pair.

Pairs in the cable are parted with a separator which increase cross attenuation between the pairs.

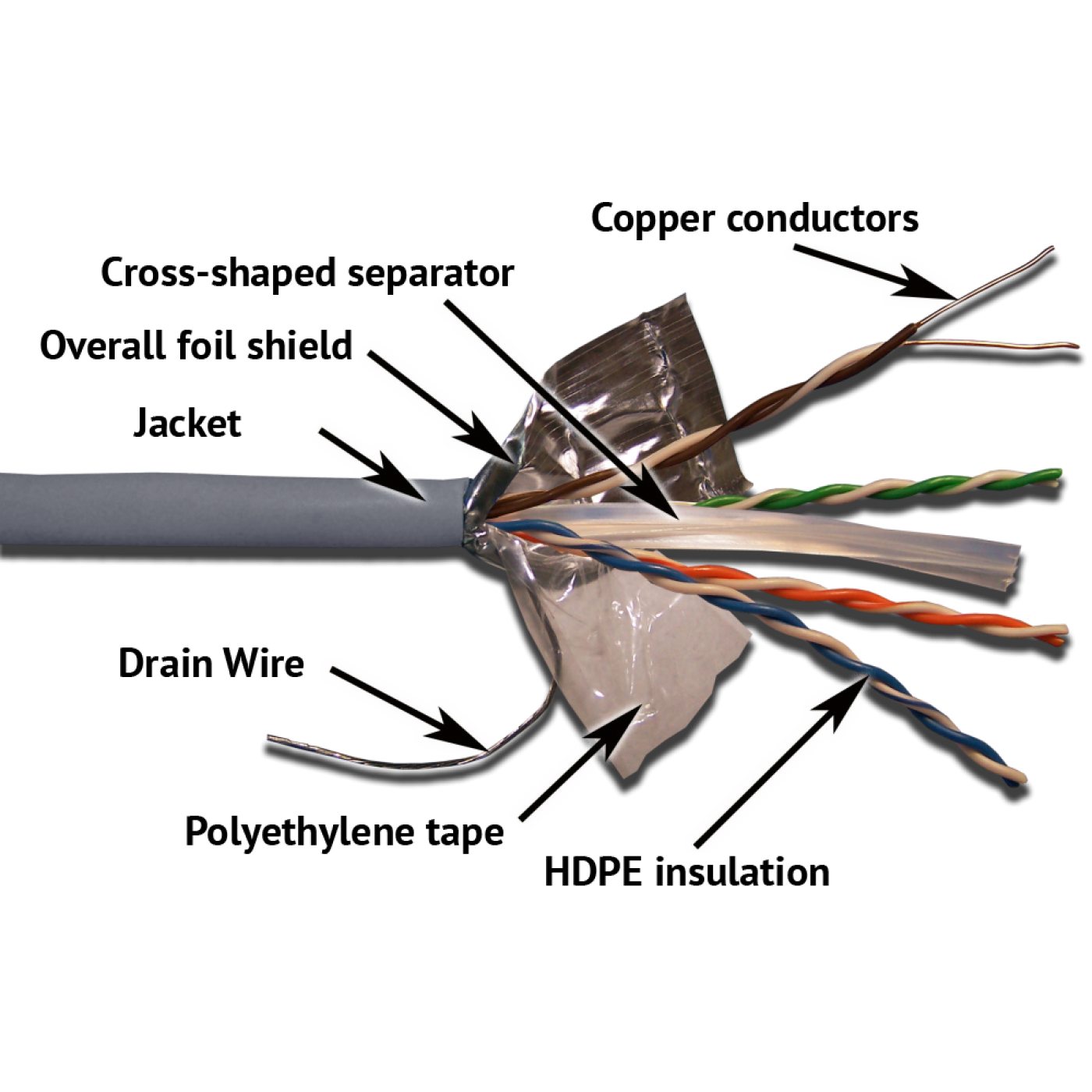

The cable comprises four twisted pairs and the separator with overall foil shield under a single PVC jacket.

There is a ripcord under the jacket to ease termination process.



Specification Value
Jacket Color Grey
Jacket Material PVC
Insulation Material HDPE (high density polyethylene)
Conductor Gauge, single 23 AWG
Conductor Type Solid
Cable Diameter 7.6 mm
Shield Material Aluminum polyester foil over 4 pairs
Operating Temperature -20 ºC to 75 ºC
Cable Length per Box 305 m
Nominal velocity propagation (NVP) 69%
Regulatory Certifications UL, ETL and 3P Verified
to ANSI/TIA/EIA568-D.2-1 Category 6
Regulatory Compliance

TIA/EIA568-D.2-1 Category 6,

ISO/IEC 11801-1:2017,

EN 50288-6-1:2013
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-6FTP-GY TWT FTP cable, 4 pairs, category 6, PVC, gray, 305 meters Add to list
