TWT UTP cable, 4 pairs, XS series, category 5е, PVC

Product Code: TWT-5EUTP-XS

TWT UTP cable, 4 pairs, XS series, category 5е, PVC

TWT UTP cable, 4 pairs, XS series, category 5е, PVC

Unshielded four pairs category 5e cable is designed for digital and analog signals transmission on frequencies below 100 MHz.

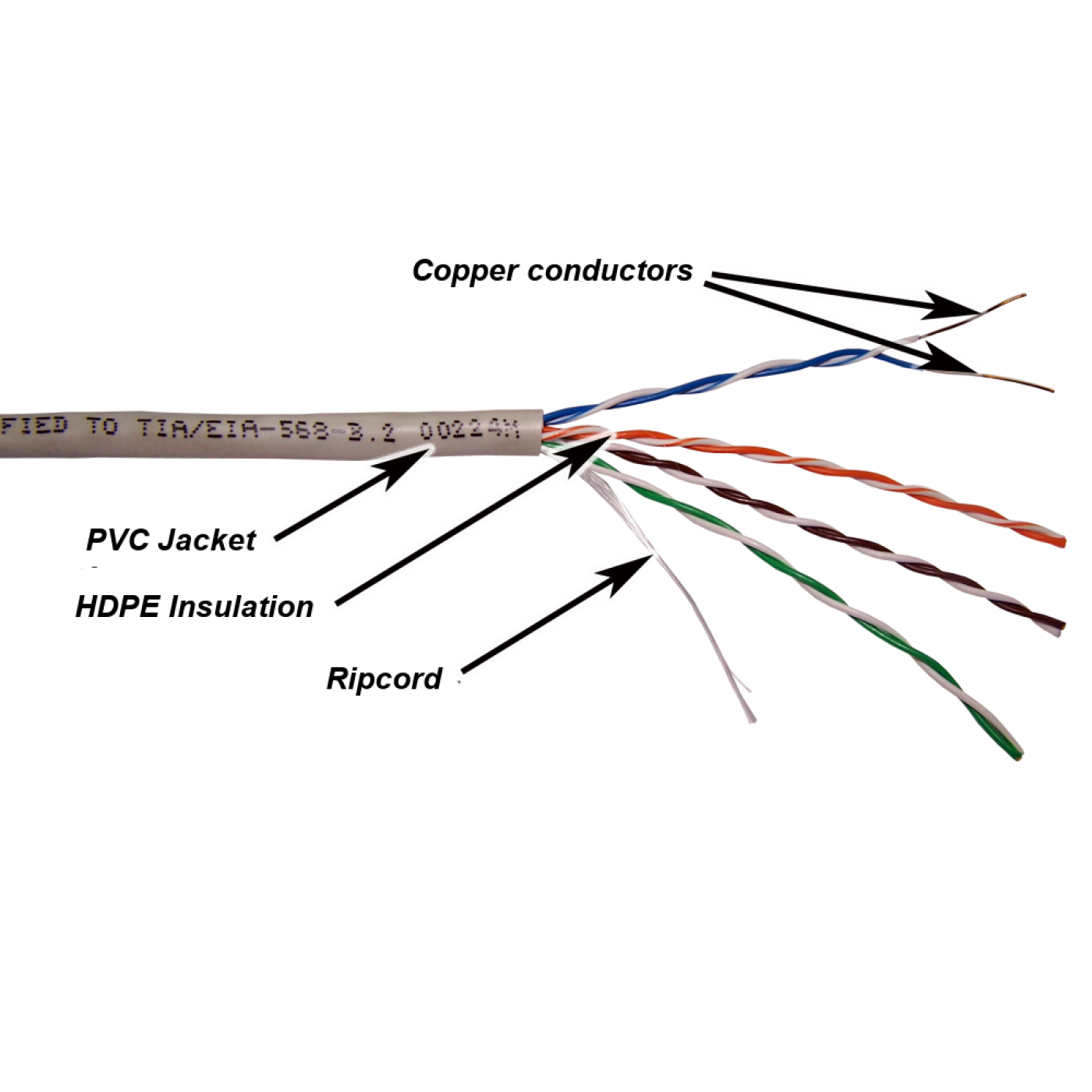

The cable comprises four twisted pairs of solid copper conductors under a single jacket.

Specification

Value

Jacket Color

Grey

Jacket Material

PVC (polyvinyl chloride)

Insulation Material

HDPE (high density polyethylene)

Conductor Type

Solid

Conductor Gauge

24 AWG

Nominal Velocity Propagation (NVP)

66%

Cable Diameter

4.8 mm

Cable Length per Reel

305 m

Operating Temperature

-20 ºC to 75 ºC

Color Coding

Pair

Color

Pair

Color

1

blue/white-blue

3

orange/white-orange

2

green/white-green

4

brown/white-brown

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (2)

Code Name
TWT-5EUTP-XS/100 TWT UTP cable, 4 pairs, XS series, category 5е, PVC, 100m Add to list
TWT-5EUTP-XS TWT UTP cable, 4 pairs, XS series, category 5е, PVC, 305m Add to list
