TWT UTP cable, 4 pairs, category 5e, ng(А)-LS, IEC 60332-3, 305 meters, purple

TWT UTP cable, 4 pairs, category 5e, ng(А)-LS, IEC 60332-3, 305 meters, purple

Product Code: TWT-5EUTP-NGLS

TWT UTP cable, 4 pairs, category 5e, ng(А)-LS, IEC 60332-3, 305 meters, purple
Model range

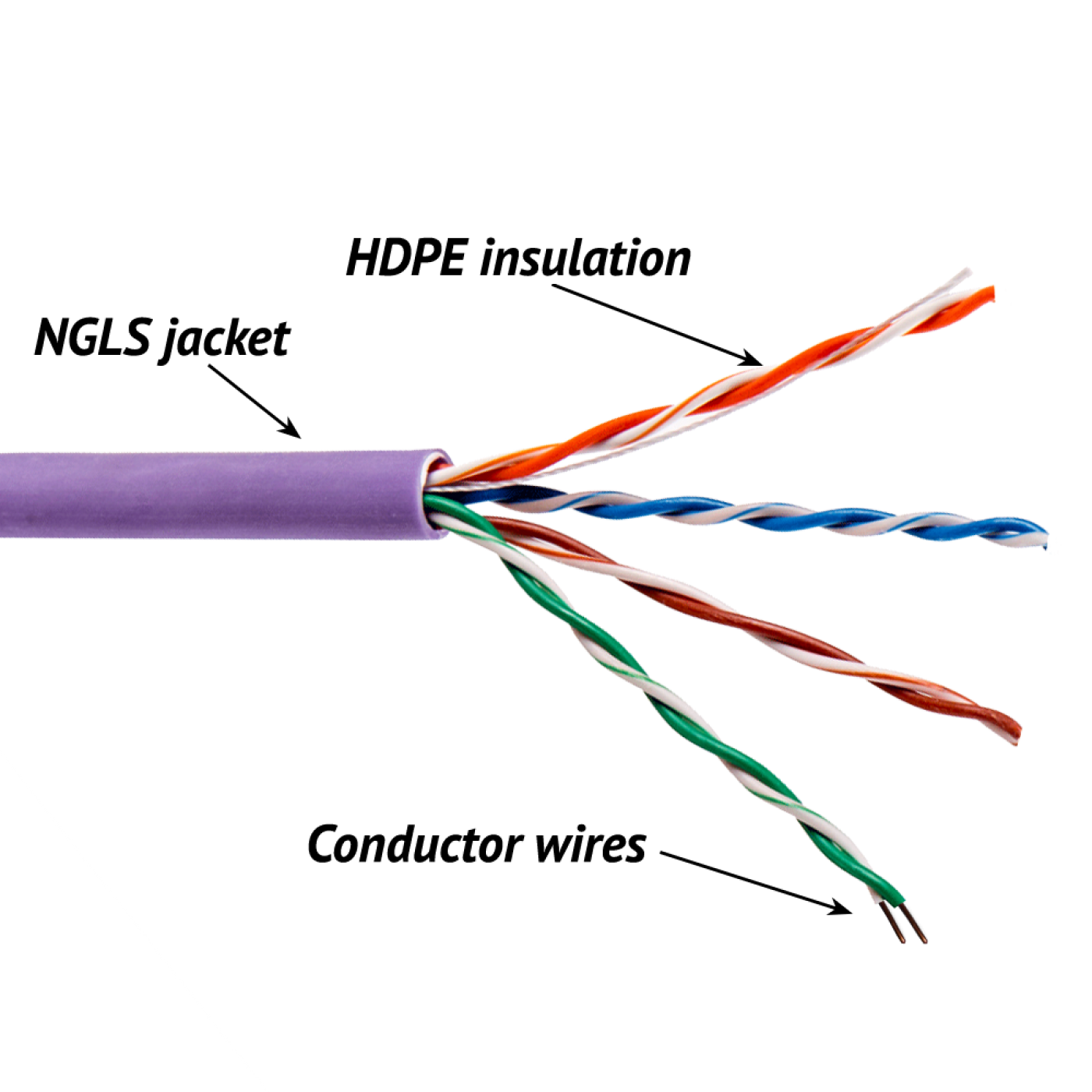

Unshielded four pairs category 5e cable is designed for digital and analog signals transmission on frequencies below 100 MHz. The cable comprises four twisted pairs of solid copper conductors under a single jacket.

There is a ripcord under the jacket to ease termination process.

Box dimensions (DхWхH) – 395 х 239 х 395 mm.

Box weight – 8.9 kg

Specification Value
Jacket Color Purple
Jacket Material ng(A)-LS
Insulation Material HDPE (high density polyethylene)
Conductor Type Solid
Conductor Gauge 24 AWG
Cable Diameter 5.0 ±0.5 mm
Nominal velocity propagation (NVP) 66 % at 100 MHz
Cable Length per Box 305 m
Operating Temperature -20 ºC to +75 ºC
Regulatory Certifications

ETL VERIFIED
Regulatory Compliance

TIA/EIA 568-D.2 cat. 5E,

ISO/IEC 11801-1:2017,

EN 50173
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-5EUTP-NGLS TWT UTP cable, 4 pairs, category 5e, ng(А)-LS, IEC 60332-3, 305 meters, purple Add to list
