TWT FTP cable, 4 pairs, cat. 5е, LSZH, universal, 305 m
Model range

The cable is designed for indoor and outdoor use. The jacket made of LSZH (low-smoke zero halogen) polymer which protects the cable from external damage, does not degrade under the solar radiation and allows the cable to be used in the temperature range from -40°С to +60°С.

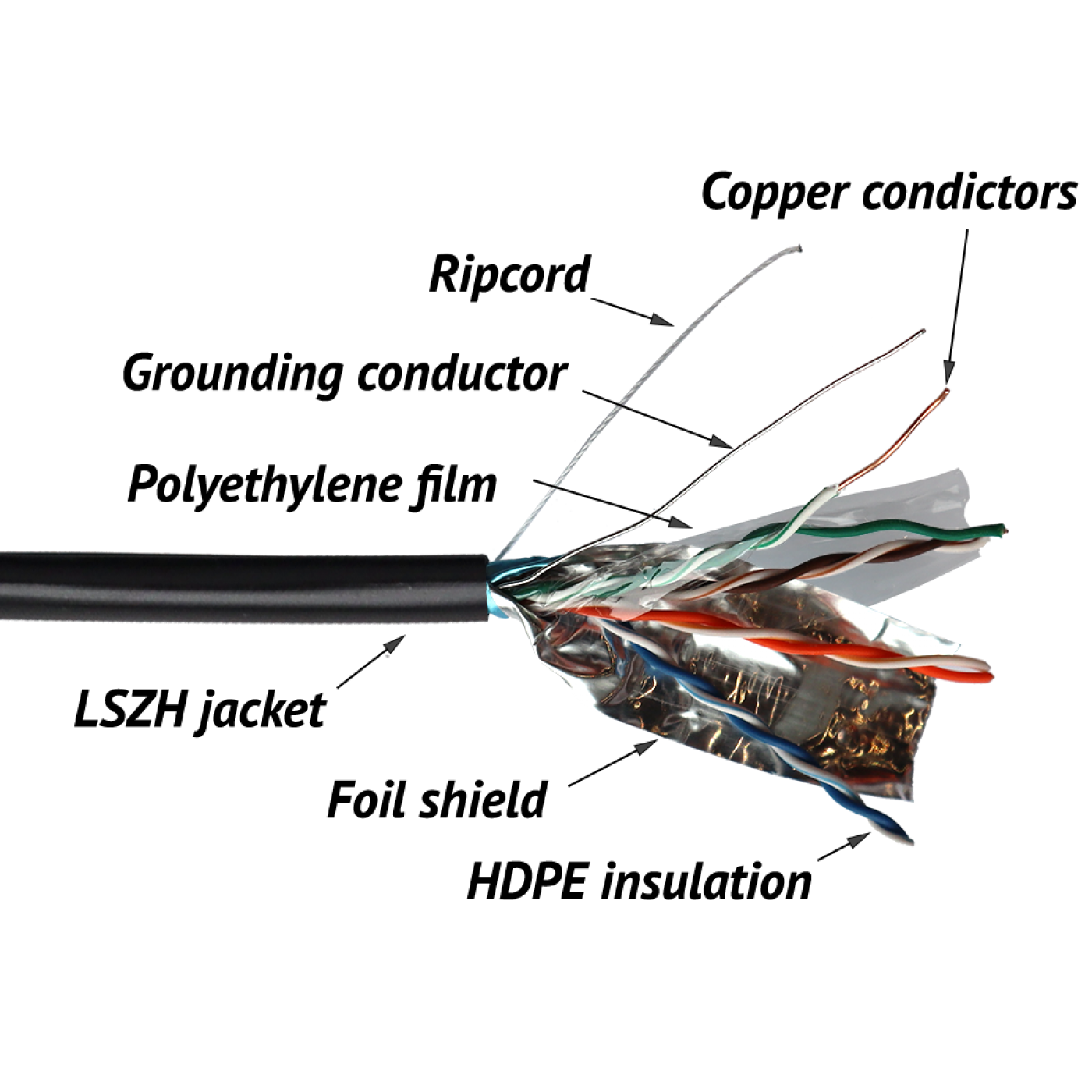

The four-pair FTP cable has the following design:

Conductor is 24AWG solid copper wire insulated with HDPE (high density polyethylene).

Two conductors make up one twisted pair, in general, the cable consists of four pairs which twisted with specially selected different step.

The cable has a common shield in the form of laminated aluminum foil under the jacket.

The cable jacket has per meter sequential length marks.

Specification Value
Jacket color Black
Jacket Material LSZH (low smoke zero halogen)
Insulation Material HDPE (high density polyethylene)
Conductor Diameter 24 AWG
Conductor Type Solid
FTP Shield Type laminated aluminum foil around 4 pairs
Jacket Diameter 6.1 ± 0.3mm
Operating Temperature Range from -40°С to +60°С
Cable Length per Box 305 m
NVP at 100 MHz 69%
Frequency Band 1-100 MHz
СConforms to standards TIA/EIA 568-С.2; ISO/IEC 11801; EN 50173
The cable has better transmission characteristics then defined in standards for 1-100 MHz frequency band.
