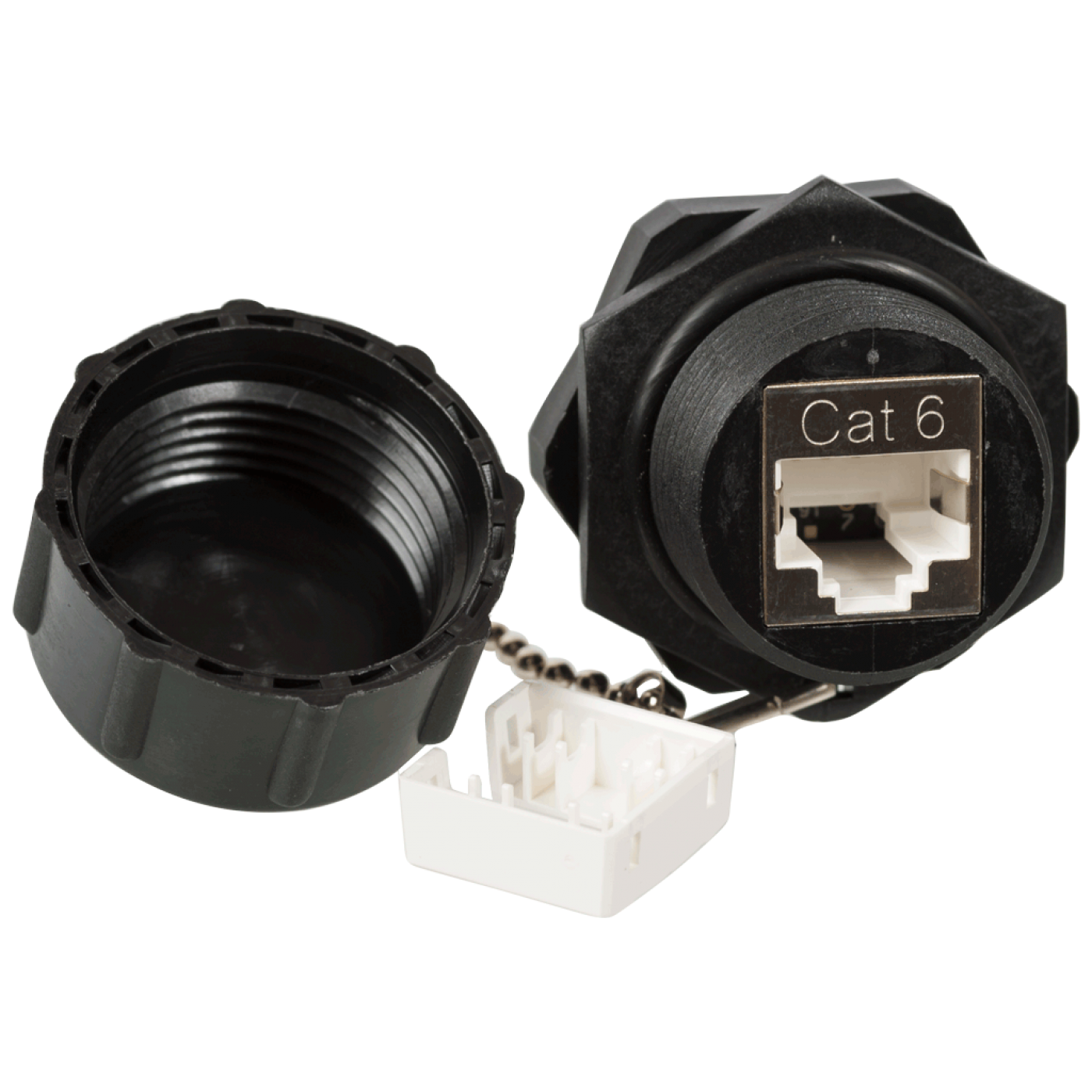

Industrial socket module, RJ45, cat. 6, STP, 180 degrees, IP68
Product Code: LAN-OK45S6/180-WP
Industrial socket module, RJ45, cat. 6, STP, 180 degrees, IP68
The module is designed for sockets installed in rooms
with harsh environments, such as the presence of condensation, abrasive dust,
etc. These can be industrial workshops, production facilities. Protection class is IP68. An eight-pin RJ-45 socket is mounted on the front side
of the module. IDC connector knives are located at an angle of 180° relative to
the front surface of the module. The method of insulation displacement contact (IDC) is
used to connect the cable. The color scheme for connecting the cable conductors
in accordance with the schemes T568A and T568B is placed between the IDC
terminals for ease of installation.
It is necessary to use the LAN-BO-WPAK cap if
the module is used without panel mounting. |
