Product Code: LAN-6EFTP-OUT

LANMASTER FTP cable, 4 pairs, cat. 6, with separator, 250Mhz, PE, for outdoor, 305 m
Model range

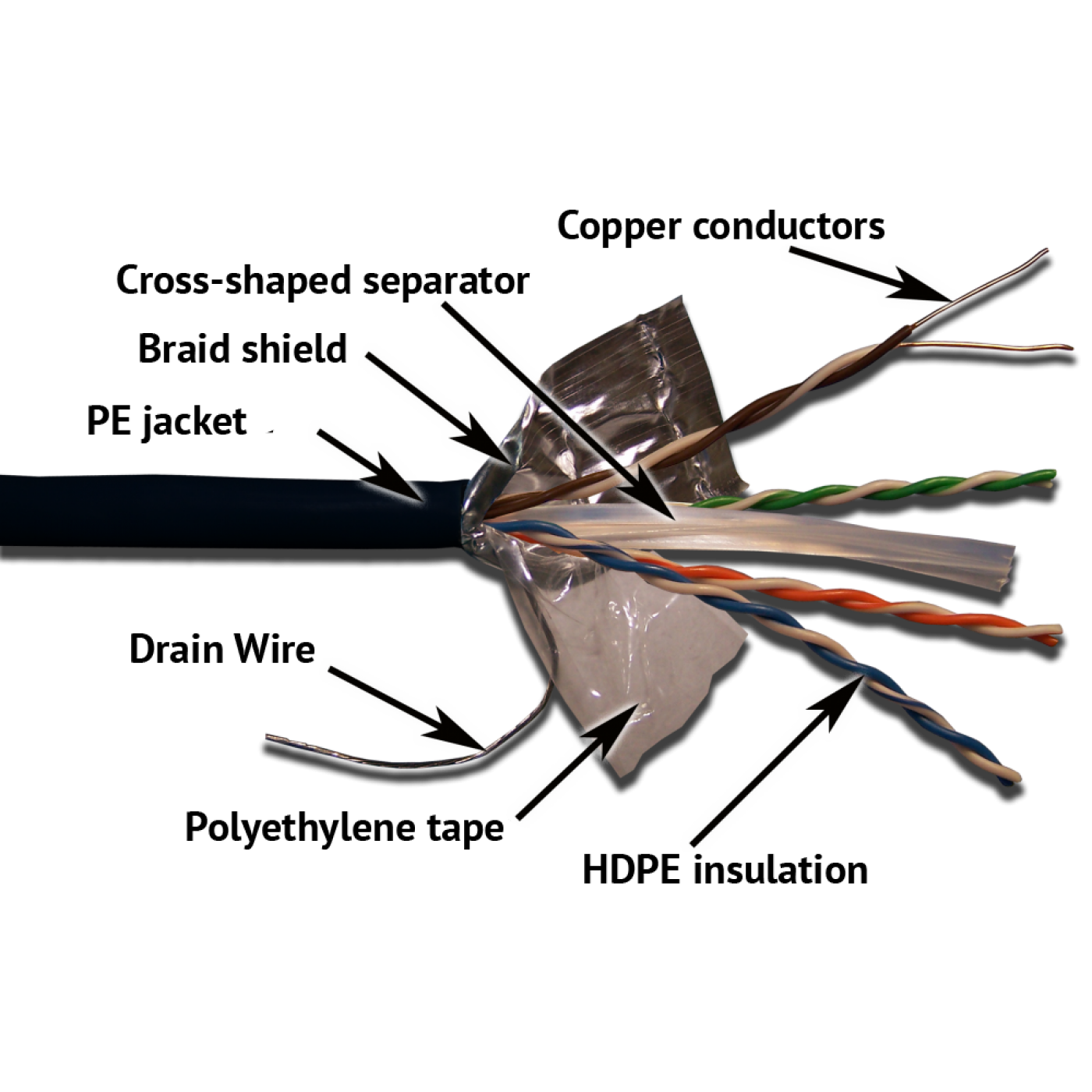

The cable consists of 4 pairs of solid copper conductors.
The diameter of the conductor is 23 AWG.
Each conductor is protected with HDPE (high density polyethylene) insulation.

Two conductors stranded with a specially selected step make up one twisted pair.
The pairs are separated from each other by a cross partition which increases the transient attenuation between the pairs.
4 twisted pairs and partition are wrapped in polyethylene film and together with a solid copper grounding conductor are enclosed in a common foil screen and polyethylene (PE) jacket.

Characteristic of the cable:

Characteristic Value
Type of conductor Solid
Conductor Diameter 23AWG ( 0,55± 0.03 mm)
Insulation Type HDPE (High Density Polyethylene)
Outer jacket PE (Polyethylene)
Jacket Color Black
Cable diameter 7,2 mm
Operating temperature range to +75oС
Impedance 100+15 Ohm
Fire resistance level CMX
DC Resistance Unbalance of a pair 5%
Capacitance Unbalance pair to Ground 330 pF/100m
Propagation Delay Skew 40 ns/100m
Nomal velocity propagation 69%
Certified by the laboratory 3P
Complies with TIA/EIA 568-C.2-1 cat. 6
Meters in a box 305 m
Color coding Pair 1 "blue / white-blue";
Pair 2 "orange/white-orange";
Pair 3 "green/white-green";
Pair 4 "brown/white-brown".


Cable transfer characteristics:

Frequency
(MHz)		 Attenuation
(dB/100 m)		 NEXT
(dB)		 ACR
(dB)		 PS.NEXT
(dB)		 PS.ACR
(dB)		 ELFEXT
(dB/100 m)		 PS.ELFEXT
(dB/100 m)		 Return Loss
(dB)
1 2.0 74.3 72.3 72.3 70.3 67.8 64.8 20.0
4 3.8 65.3 61.5 63.3 59.5 55.7 52.7 23.0
8 5.3 60.8 55.3 58.8 53.3 49.7 46.7 24.5
10 6.0 59.3 53.3 57.3 51.3 47.8 44.8 25.0
16 7.6 56.3 48.7 54.3 46.7 43.7 40.7 25.0
20 8.5 54.8 46.3 52.8 44.3 41.7 38.7 25.0
25 9.6 53.3 43.7 51.3 41.7 39.8 36.8 24.3
31.25 10.7 51.9 41.2 49.9 39.2 37.9 34.9 23.6
62.5 15.4 47.4 32.0 45.1 30.0 31.8 28.8 21.5
100 19.8 44.3 24.5 42.3 22.5 27.8 24.8 20.1
155 25.1 41.5 16.4 39.5 14.4 23.9 20.9 18.8
200 29.0 39.8 10.8 37.8 8.8 21.7 18.7 18.0
250 32.8 38.3 5.5 36.3 3.5 19.8 16.8 17.3
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
