LANMASTER SFTP cable, 4 pairs, cat. 5E, 100 MHz, PVC, 305 m

LANMASTER SFTP cable, 4 pairs, cat. 5E, 100 MHz, PVC, 305 m

Product Code: LAN-5ESFTP-xx

LANMASTER SFTP cable, 4 pairs, cat. 5E, 100 MHz, PVC, 305 m
Model range

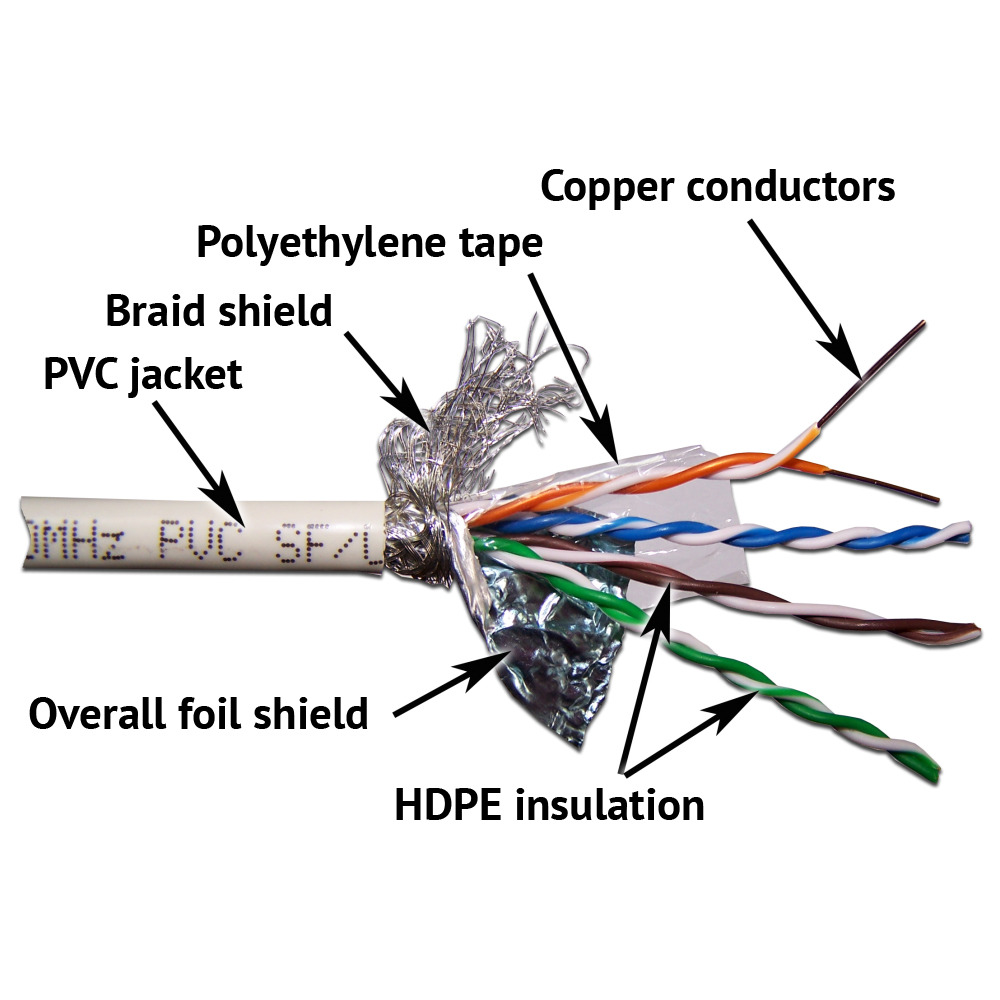

The cable consists of 4 pairs of solid copper conductors.

The diameter of the conductor is 24 AWG.

Each conductor is protected with HDPE (high density polyethylene) insulation.
Two conductors stranded with a specially selected step make up one twisted pair.
The pairs are separated from each other by a cross-shaped partition increasing the transient attenuation between the pairs.
4 twisted pairs and a partition are wrapped in a common foil screen, and then in a wire braid. The outer layer is a PVC jacket.

Characteristic of the cable:

Value
Type of conductor Solid
Conductor Diameter 24 AWG
Insulation Type HDPE (High Density Polyethylene)
Type of sheath PVC (Polyvinyl Chloride)
Sheath color White
Cable diameter 6,5 mm
Impedance 100 ± 15 Ohm
Mutual Capacitance 17.1 nF/1000Ft
DC Resistance 28.6 Ohm/1000Ft
DC Resistance Unbalance of a pair 5%
Capacitance Unbalance pair to Ground 330 pF / 100 m
Propagation Delay Skew 35 nS / 100 m
Nominal velocity propagation 71%
Certified by the laboratory 3P and ETL Certified
Complies with UL444,1581; ISO/IEC 11801; EN50173-1; TIA-568-C.2 CAT 5E
Meters in a box 305 m
Color coding Pair 1 "blue/white-blue";
Pair 2 "orange/white-orange";
Pair 3 "green/white-green";
Pair 4 "brown/white-brown".


Cable transfer characteristics:

Frequency
(MHz)		 Attenuation
(dB /100 m)		 NEXT
(dB)		 ACR
(dB)		 PS.NEXT
(dB)		 PS.ACR
(dB)		 ELFEXT
(dB)		 PS.ELFEXT
(dB)		 Return Loss
(dB)
1 2.0 65.3 63.3 62.3 60.3 63.8 60.8 20.0
4 4.1 56.3 52.2 53.3 49.2 51.7 48.7 23.0
8 5.8 51.8 46.0 48.8 43.0 45.7 42.7 24.5
10 6.5 50.3 43.8 47.3 40.8 43.8 40.8 25
16 8.2 47.3 39.1 44.3 36.1 39.7 36.7 25.0
20 9.3 45.8 36.5 42.8 33.5 37.8 34.8 25.0
25 10.4 44.3 33.9 41.3 30.9 35.8 32.8 24.3
31.25 11.7 42.9 31.2 39.9 28.2 33.9 30.9 23.6
62.5 17.0 38.4 21.4 35.4 18.4 27.8 24.8 21.5
100 22.0 35.3 13.3 32.3 10.3 23.8 20.8 20.1
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
LAN-5ESFTP-WH LANMASTER SFTP cable, 4 pairs, cat. 5E, 100 MHz, PVC, white, 305 m Add to list
